Dranetz DRANFLEX3000XL Flexible Probes for Portable PQ

Dranetz DRANFLEX3000XL Flexible Probes for Portable PQ
Enlarge Image

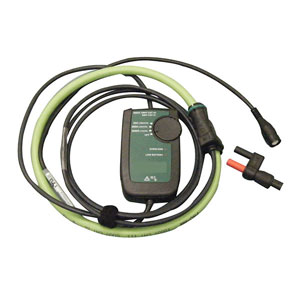

Dranetz FLEX3000XL
Request Quote Print Page
Manual Accessory Kit

These lightweight units are equipped with 8 independent channels (4 voltage and 4 current) and perform independent voltage and current triggering/cross triggering.


Include automated setups for out of the box instrument readiness. Report card annunciator instantly characterizes events. Handle both AC and DC application and allows user to switch between battery and AC mode. 256 samples per cycle. Capture low-medium frequency transients. THD/harmonic spectrum and TID/interharmonics spectrum to the 63rd. Capable of remote communications using RS-232, ethernet, or USB cable. Dran-View for compatibility with windows NT, 98, ME, 2000, and XP. Include 8 color-coded voltage leads and clips, battery, battery charger, 128 MB memory card, software, and soft carrying case. Comply with 1EEE 1159, 1EC 61000-4-30 Class A and EN50160.


Features:

  • Dran-View for compatibility with windows NT, 98, ME, 2000, and X
  • THD/harmonic spectrum and TID/interharmonics spectrum to the 63rd
  • 256 samples per cycle
  • Handle both AC and DC application and allows user to switch between battery and AC mode
  • Report card annunciator instantly characterizes events
  • Capture low-medium frequency transients
  • Capable of remote communications using RS-232, ethernet, or USB cable
  • Comply with 1EEE 1159, 1EC 61000-4-30 Class A and EN50160


Specifications:

AC Frequency Response

10 Hz to 10 KHz

Accuracy

ñ1% of Reading

Amps AC

3 to 3000

Connector Type

Dranetz TR Style

For Use With

2TB84, 2TB85, 2TB86, 2TB87, 2TB88, 1CVB1, 1WVL6, 1YRV8, 1YRV9

Includes

(2) AA Batteries and Instructions

Jaw Capacity (In.)

15

Jaw Capacity (mm)

381

Max. Conductor Size

11.5"

Output

1.5V Full Scale RMS

Safety Rating

CAT III 1000 V , Cat IV 600 V
