Fluke 435-II Power Quality and Energy Analyzer

Categories

Documents

The Fluke 435 Series II Energy & Power Analyzer locates, predicts, prevents, and troubleshoots power quality problems in three-phase and single-phase power distribution systems. Fluke 435 Series II power quality analyzers feature an energy loss calculator, which identifies issues and measures the amount of energy loss in dollars. These analyzers also offer PowerWave Data Capture, which captures three-phase high-resolution voltage and current waveforms for up to five minutes along with detailed RMS voltage and current values.

Multiple parameters of the Fluke 435 Series II are measured simultaneously and displayed in formats that quickly describe overall power quality health while giving you the detailed information you need to make better maintenance decisions. Data can be quickly accessed as simple digital values, trend graphs, waveforms, phasor diagrams or analyzed and organized into a tabular format.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Features

Quickly see how much money you’re losing due to energy waste in terms of real dollars
Easily see how motor startups are affecting motor drive performance
Get at-a-glance power quality health data in real-time so you can make better maintenance decisions
Capture every measurement automatically without any set-up so you don’t have to worry about not having the right data
Measure all three phases and neutral with the included flexible current probes
Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance
Fluke Connect® compatible – view data locally on the instrument, via Fluke Connect mobile app and PowerLog 430-II desktop software

Specifications

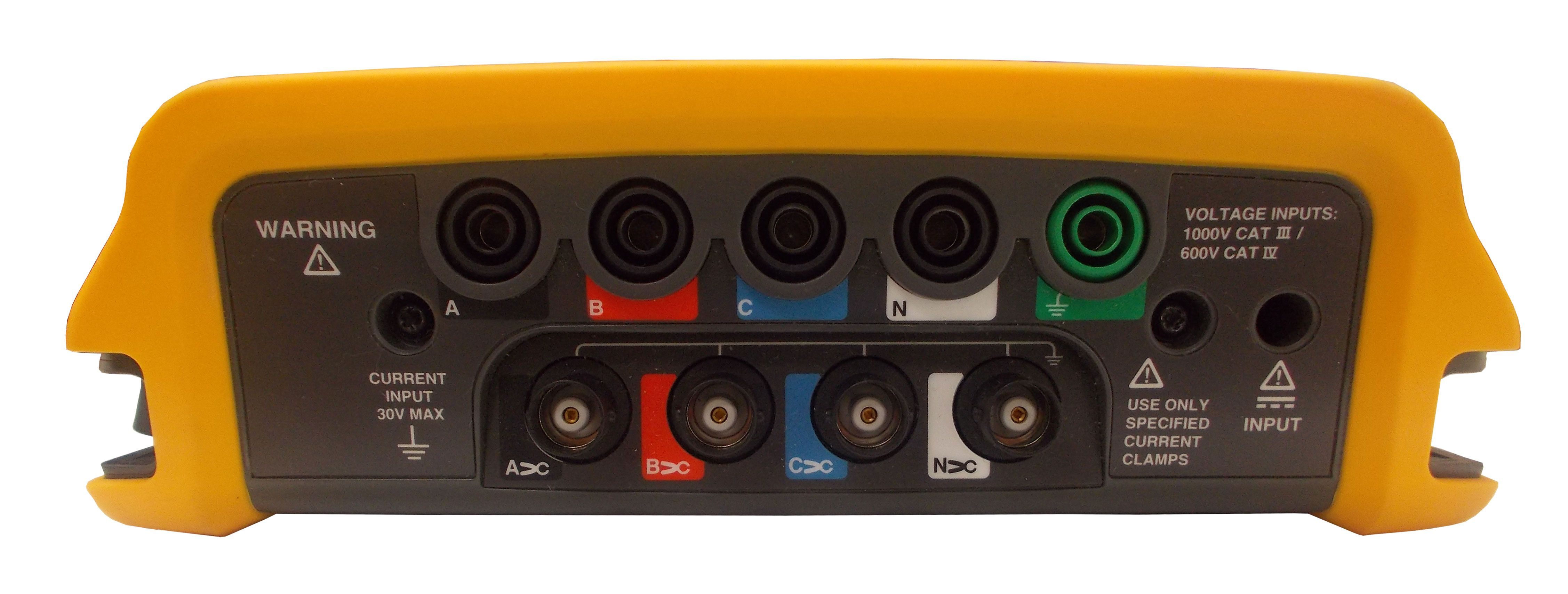

Voltage inputs
Number of inputs	4 (3 phase + neutral) dc-coupled
Maximum input voltage	1000 Vrms
Nominal voltage range	Selectable 1 V to 1000 V
Max. peak measurement voltage	6 kV (transient mode only)
Input impedance	4 MΩ//5 pF
Bandwidth	> 10 kHz, up to 100 kHz for transient mode
Scaling	1:1, 10:1, 100:1, 1,000:1 10,000:1 and variable
Current inputs
Number of inputs	4 (3 phase + neutral) dc- or ac-coupled
Type	Clamp or current transformer with mV output or i430flex-TF
Range	0.5 Arms to 600 Arms with included i430flex-TF (with sensitivity 10x) 5 Arms to 6000 Arms with included i430flex-TF (with sensitivity 1x) 0.1 mV/A to 1 V/A and custom for use with optional ac or dc clamps
Input impedance	1 MΩ
Bandwidth	> 10 kHz
Scaling	1:1, 10:1, 100:1, 1,000:1 10,000:1 and variable
Sampling system
Resolution	16 bit analog to digital converter on 8 channels
Maximum sampling speed	200 kS/s on each channel simultaneously
RMS sampling	5000 samples on 10/12 cycles according to IEC61000-4-30
PLL synchronization	4096 samples on 10/12 cycles according to IEC61000-4-7
General specifications
Case	Design Rugged, shock proof with integrated protective holster Drip and dust proof IP51 according to IEC60529 when used in tilt stand position Shock and vibration Shock 30 g, vibration: 3 g sinusoid, random 0.03 g2/Hz according to MIL-PRF-28800F Class 2
Display	Brightness: 200 cd/m2 typ. using power adapter, 90 cd/m2 typical using battery power Size: 127 mm x 88 mm (153 mm/6.0 in diagonal) LCD Resolution: 320 x 240 pixels Contrast and brightness: user-adjustable, temperature compensated
Memory	8GB SD card (SDHC compliant, FAT32 formatted) standard, up to 32GB optionally Screen save and multiple data memories for storing data including recordings (dependent on memory size)
Real-time clock	Time and date stamp for Trend mode, Transient display, System Monitor and event capture

Applications

Energy loss calculator: Classic active and reactive power measurements, unbalance and harmonic power, are quantified to pinpoint true system energy losses in dollars (other local currencies available)
Power inverter efficiency: simultaneously measure AC output power and DC input power for power electronics systems using optional DC clamp
PowerWave data capture: capture fast RMS data, show half-cycle and waveforms to characterize electrical system dynamics (generator start-ups, UPS switching etc.)
Waveform capture: capture 50/60 cycles (50/60Hz) of each event that is detected in all modes, without set-up
Automatic transient mode: capture 200 kHz waveform data on all phases simultaneously up to 6 kV
Fully class-A compliant: conduct tests according to the stringent international IEC 61000-4-30 Class-A standard
Mains signaling: measure interference from ripple control signals at specific frequencies
Troubleshoot: Analyze the trends using the cursors and zoom tools
Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance
Measure all three phases and neutral: With included four flexible current probes with enhanced thin flex designed to fit into the tightest places
Automatic trending: Every measurement is always automatically recorded, without any set-up
System-monitor: Ten power quality parameters on one screen according to EN50160 power quality standard
Logger function: Configure for any test condition with memory for up to 600 parameters at user defined intervals
View graphs and generate reports: With included analysis software
Battery life: Up to 8 hours operating time per charge on Li-ion battery pack
Wireless data download: Download data to PC wirelessly and capture screens using Fluke Connect App

Options

Accessories

Standards

IEC 61000-4-30 Class A
- Volt Amp Hz
- Dips and swells
- Harmonics
- Power and energy
- Energy loss calculator
- Unbalance
- Monitor
- Inrush
- Event waveform capture
- Flicker
- Transients
- Mains signaling
- Power wave
- Power inverter efficiency
- C1740 Soft Case
