Fluke Test Equipment Rental

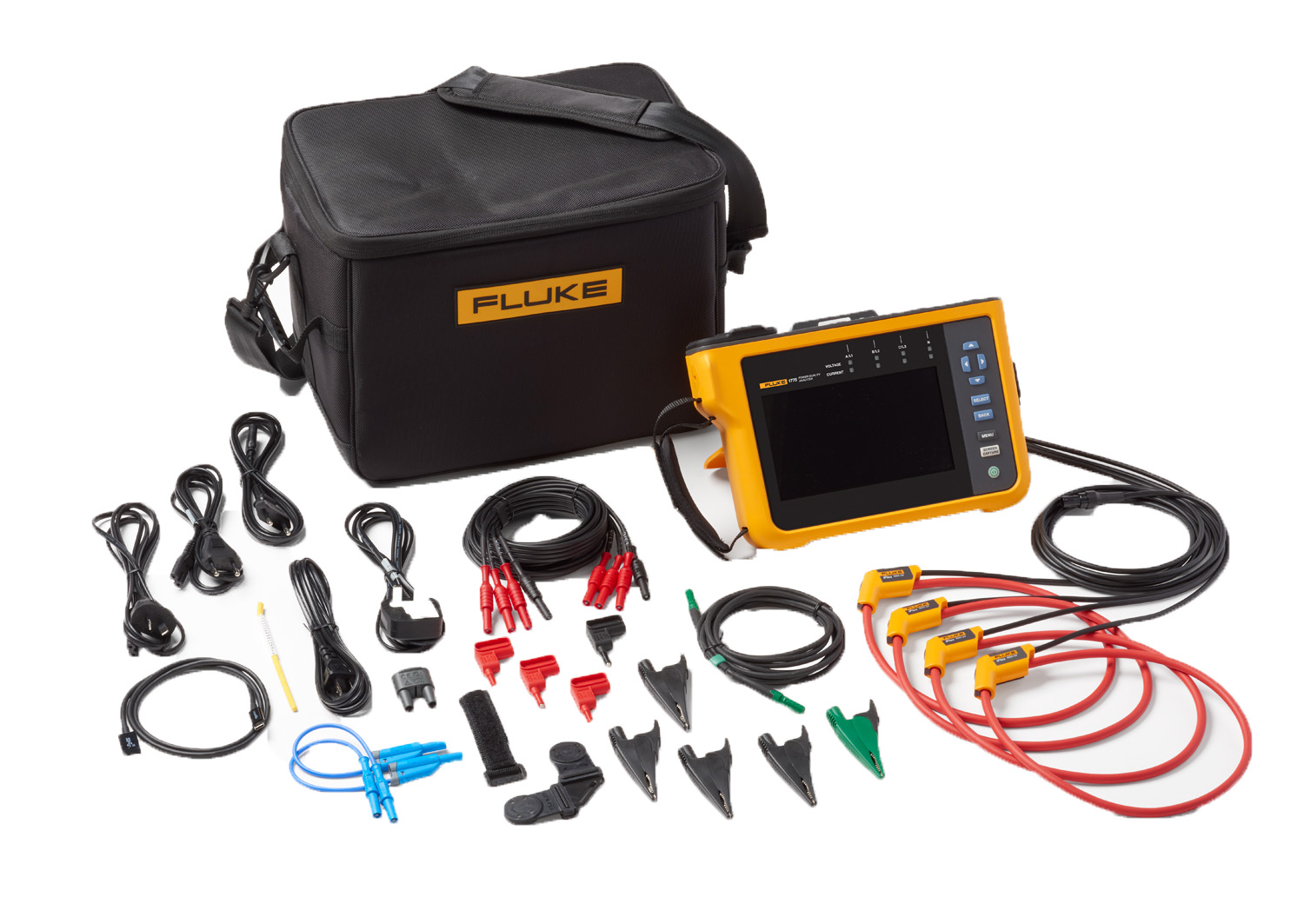

Fluke 1775 Three-Phase Power Quality Analyzer

  Tech Support
(800) 404-2832
ATEC Assurance With Every
Rental
    Worldwide
Delivery
Larger
Categories
  • Power Quality
    Power Quality
  • Power Loggers
    Power Loggers
  • Power Quality Analyzers
    Power Quality Analyzers
Documents
  • Datasheet
  • Print
  • Email
The Fluke 1775 Three-Phase Power Quality Analyzer is a power logger that is part of the Fluke 1770 Series. This power logger provides operators with efficient and accurate troubleshooting and quality analysis capabilities. Automated measurements and in-depth interface features make the device user-friendly and a perfect tool for analysis while out in the field. The Fluke 1775 Three-Phase Power Quality Analyzer has a voltage transients sampling rate of 1 MS/s, three-phase testing, and tests for international standards such as EC 61000-4-30, EN 50160, and IEEE 519.
  • Specifications
  • Features
  • Applications
  • Options
  • Accessories
  • Standards
  • Videos
Features
  • Automatically measure power and power quality parameters
  • At-a-glance power quality health for faster troubleshooting
  • Easily view V/A/Hz, power, dips, swells, and harmonics data
  • Capture high-speed transients up to 8 kV
  • Power directly from measurement circuit without a line cord
  • Power quality analyzer with 4 1500A, 24 in current probes

Specifications
Dimensions
(L x W x H)
11.0 in x 7.5 in x 2.4 in
28.0 cm x 19.0 cm x 6.2 cm
Weight 4.6 lb.
2.1 kg
Voltage range 100 V – 600 V -15 %
+10 % (85 V to 660 V)
Power consumption Max. 40 VA
Mains frequency 50/60 Hz (42.5 Hz … 69 Hz)
Number of inputs 4 inputs, 3 phases and neutral referenced to PE (5 connectors)
Nominal voltage range Wye and single phase: Variable (50 V – 1000 V)
Delta: Variable (100 V – 1000 V)
IEC 61000-4-30 Class A compliance for the nominal voltages (Vdin) 100 V – 690 V
Current input impedance 11 kΩ
Current bandwidth DC to 30 kHz
Power standard IEEE 1459
Power quality standard IEC 61000-4-30 Class A, IEC 62586 PQI-A-PI
Data storage 8 GB internal (expandable with microSD card)
Applications
Options
Accessories
Standards
Media
Instant Quote

RELATED PRODUCTS

Dranetz HDPQ Xplorer Power Quality Analyzer
Dranetz HDPQ Xplorer Power Quality Analyzer
Fluke 1735 Power Logger Rental
Fluke 1735 Three-Phase Power Logger
Fluke 1736 Rental
Fluke 1736 Three-Phase Power Logger
Fluke 435-II Power Quality and Energy Analyzer
Fluke 435-II Power Quality & Energy Analyzer
Dranetz HDPQ Xplorer Power Quality Analyzer
Dranetz HDPQ Xplorer Power Quality Analyzer
Fluke 1738 Advanced Power Logger
Fluke 1738 Advanced Power Logger
Fluke 437 ii
Fluke 437-II Three-Phase Power Quality Analyzer
Fluke 1750 Three-Phase Power Quality Recorder
Fluke 1750 Three-Phase Power Quality Recorder
Fluke 435-II Power Quality and Energy Analyzer
Fluke 435-II Power Quality & Energy Analyzer
Fluke 438-II
Fluke 438-II Power Quality Analyzer & Motor Analyzer
Dranetz HDPQ Visa Power Quality & Energy Monitoring Analyzer
Dranetz HDPQ Visa Power Quality & Energy Monitoring Analyzer
Fluke 437 ii
Fluke 437-II Three-Phase Power Quality Analyzer
AEMC 8336 PowerPad III Three-Phase Power Quality Analyzer
AEMC 8336 PowerPad III Three-Phase Power Quality Analyzer
Dranetz HDPQ Guide SP Power Quality Analyzer
Dranetz HDPQ Guide SP Power Quality Analyzer
AEMC 8335 PowerPad 3-Phase Power Quality Analyzer
AEMC 8335 PowerPad 3-Phase Power Quality Analyzer
Dranetz HDPQ Guide Power Quality Analyzer
Dranetz HDPQ Guide Power Quality Analyzer
Dranetz HDPQ Xplorer 400
Dranetz HDPQ Xplorer 400 Power Quality Analyzer
Dranetz-BMI PX5-Xfast PowerXplorer Power Quality Meter
Dranetz PX5-X-Fast PowerXplorer Power Quality Meter
Dranetz PX5-400 Power Analyzer
Dranetz PX5-400 Power Analyzer
Dranetz HDPQ Visa Power Quality & Energy Monitoring Analyzer
Dranetz HDPQ Visa Power Quality & Energy Monitoring Analyzer
Fluke 1730 Three-Phase Electrical Energy Logger
Fluke 1730 Three-Phase Electrical Energy Logger
Fluke 438-II
Fluke 438-II Power Quality Analyzer & Motor Analyzer
Dranetz HDPQ Xplorer 400
Dranetz HDPQ Xplorer 400 Power Quality Analyzer
AEMC 3945-B Power Quality Analyzer
AEMC 3945-B Three-phase PowerPad Power Quality Analyzer
Fluke 1738 Advanced Power Logger
Fluke 1738 Advanced Power Logger
  • Certified ISO 9001
  • A2LA
REP PORTAL Terms & Conditions About About ATEC Blog Media News FAQs Forms Careers

© 2023 Advanced Test Equipment Corp. All Rights Reserved.

Privacy Notice Terms of Use Site Map Linecards
This site uses cookies, as explained in our cookie policy.
