Fluke 437-II Three-Phase Power Quality Analyzer

Categories

Documents

The Fluke 437-II is a power quality monitor and energy analyzer designed to measure the monetary impact of energy loss. Fluke 437 Series II power quality analyzers allow users to find, prevent and troubleshoot 50Hz, 60Hz and 400Hz power quality issues, with a frequency range ideal for aerospace and defense applications. The Fluke 437-II also performs full evaluations of voltage, current and power compliant with MIL-STD 1399 as a shipboard power measurement system. Users can diagnose power quality health at a glance with the 437-II; the analyzer serves as an energy loss calculator, a power inverter efficiency tester, a real-time troubleshooter and more. PowerWave data capture speeds up RMS data collection and shows half-cycle and waveforms to identify electrical system dynamics. The 437-II is fully Class-A compliant, its tests conducted according to IEC 61000-4-30 Class-A requirements. Seven hours of operating time are available per charge with the Li-ion battery pack.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Features

400 Hz measurement: By increasing the power frequency to 400 Hz, transformers and motors can be much smaller and lighter than at 50 or 60 Hz, which is an advantage in aircrafts, submarines, space crafts, and other military equipment and hand-held tools. The 437 II model captures power quality measurements for these types of avionic and military systems.
Power inverter efficiency: Simultaneously measure AC output power and DC input power for power electronics systems using optional DC clamp.
PowerWave data capture: Capture fast RMS data, show half-cycle and waveforms to characterize electrical system dynamics (generator start-ups, UPS switching etc.).
Energy loss calculator: Classic active and reactive power measurements, unbalance and harmonic power, are quantified to pinpoint the fiscal costs of energy losses.
Troubleshoot real-time: Analyze the trends using the cursors and zoom tools.
Highest safety rating in the industry: 600 V CAT IV/1000 V CAT III rated for use at the service entrance.

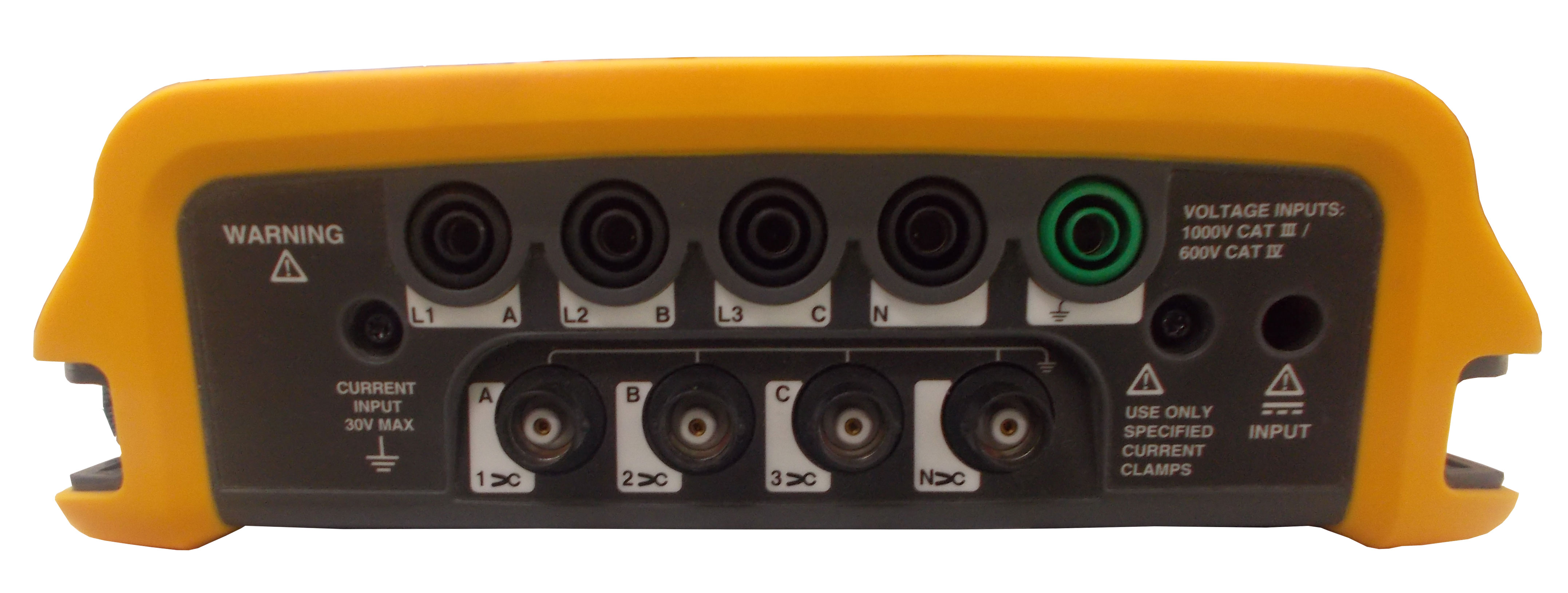

Measure all three phases and neutral: With included four flexible current probes with enhanced thin flex design to fit into the tightest places.
Automatic Trending: Every measurement is always automatically recorded, without any set-up.
System-Monitor: Ten power quality parameters on one screen according to EN50160 power quality standard.
Logger function: Configure for any test condition with memory for up to 600 parameters at user defined intervals.
View graphs and generate reports: With included analysis software.
Battery life: Seven hours operating time per charge on Li-ion battery pack.

Specifications

Volt	Measurement Range	Resolution	Accuracy
Vrms (ac+dc)	1 V to 1000 V phase to neutral	0.01 V	± 0.1% of nominal voltage
Vpk	1 Vpk to 1400 Vpk	1 V	5% of nominal voltage
Voltage Crest Factor (CF)	1.0 > 2.8	0.01	± 5 %
Vfund	N/A	0.1 V	± 0.1% of nominal voltage
See datasheet for more specifications
