| Model |

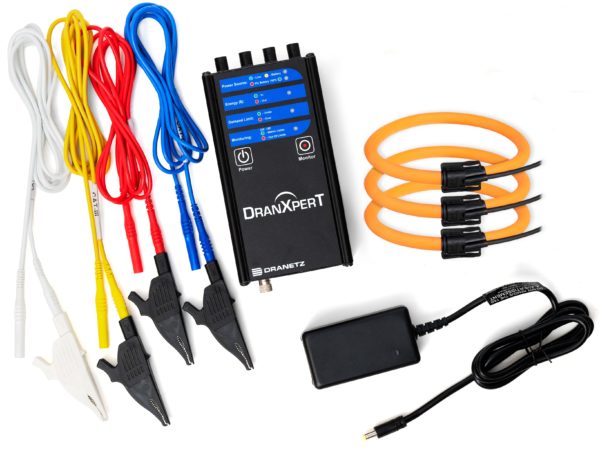

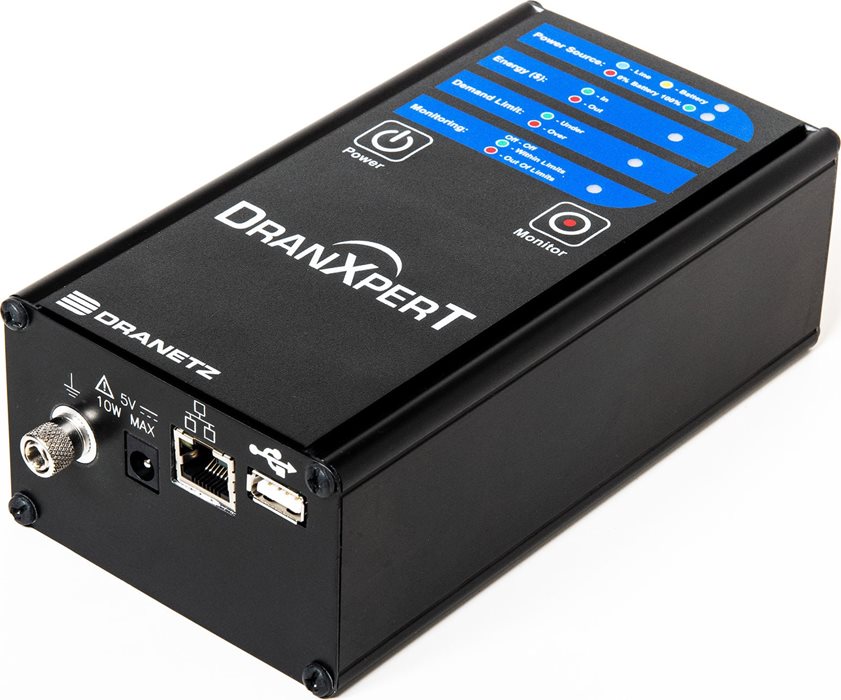

DranXperT Power Logger w/ 4 Flex Current Probes 16-inch, 1500 A |
Dimensions
(W x H x L) |
3.5” x 2.2” x 7.4” (8.9 x 5.6 x 18.8 cm) |
| Weight |
1.4 lb. (0.64 kg) |
| Voltage |
Range: 90 to 600 Vrms CAT III
Accuracy: 90 Vrms to 600 Vrms = ±0.1%, <90 Vrms = 0.5%
Connections: 4 safety banana voltage inputs – 3 phase voltage and 1 neutral/reference |
| Current |
Input: 0.333 Vrms full scale
Accuracy: ±0.1% + probe
Connections: BNC |
| Sampling Frequency |
32 ksps (recorded and real-time meters)
128 samples per cycle (periodic waveform snapshots) |
| Power Supply |
Range: 90 to 264 VAC (47 to 63 Hz)
Consumption: 15 W maximum |
| Storage Temperature |
5 to 131°F (-15 to +55°C) |
| Operating Temperature |
32 to 113°F (0 to +45°C) |
| Storage |
8 GB |
| Battery |
Rechargeable lithium Ion battery pack (UL recognized)
Run Time: 7 hours (typical)
Charge Time: 15 hours (typical) |
| IP Rating |
IP50 (vertical position) |
