Dranetz Current Probe Rentals

Dranetz Current Probes

Dranetz current probes are made for accurate current measurement across a variety of ranges, from 0.1 A to 6000 A, with frequency coverage from DC to 10 kHz depending on the model. Models feature multiple conductor sizes, length options, and power methods, with available accessories including extension and adapter cables.

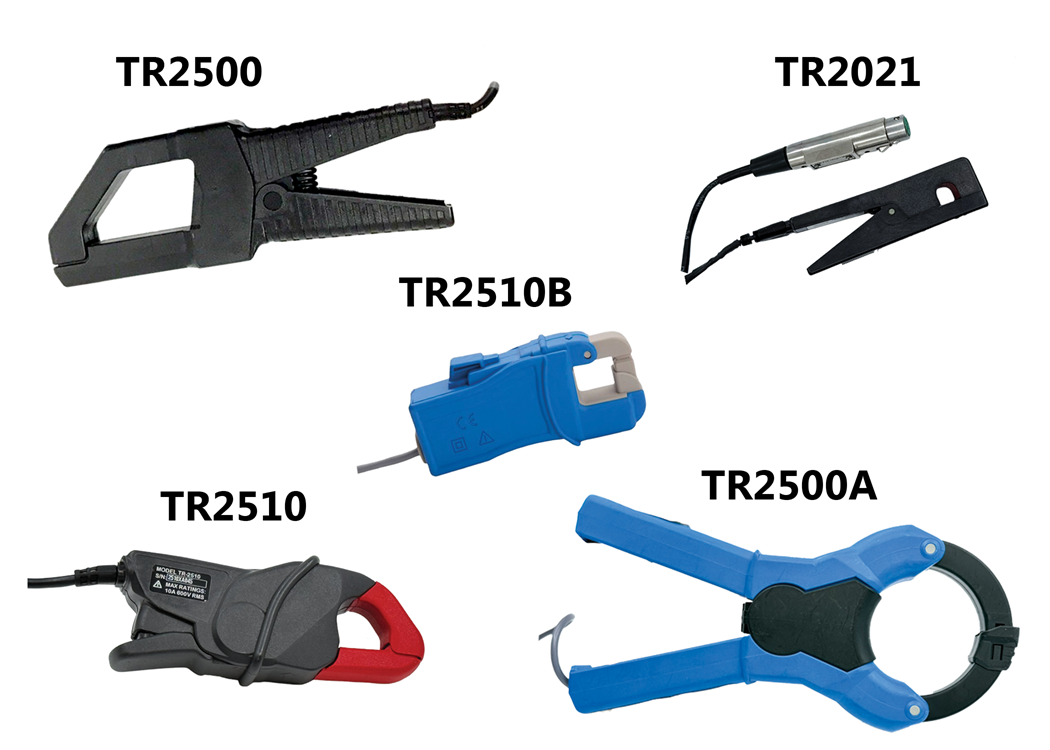

ATEC currently offers the Dranetz TR 2510B, TR 2500A, TR 2510, TR 2500, and TR 2021 probes.

They are compatible with the following models:

Dranetz PX5-XFast PowerXplorer Power Quality Meter

Dranetz HDPQ Guide SP Power Quality Analyzer

Dranetz HDPQ Xplorer Power Quality Analyzer

Dranetz HDPQ Visa Power Quality & Energy Monitoring Analyzer

Model	Current Range	Amplitude Accuracy ±	Phase Accuracy ±	Frequency Range	Max Conductor Size
TR2500	10 A – 500 A RMS	10–500 A: 1.5% of reading + 0.6 A	< 4°	48 Hz – 1 kHz	30 mm dia.
TR2500A	10 A – 500 A RMS	10–100 A: 2% 100–500 A: 1.2%	3° (10–100 A) 1° (100–500 A)	40 Hz – 5 kHz	50 mm dia.
TR2510	1 A – 10 A RMS	1–10 A: 1% 5–10 A: 1.2%	1.5°	40 Hz – 3 kHz	20 mm dia.
TR2510B	1 A – 10 A RMS	1–5 A: 2% 5–10 A: 1.2%	1° (1–5 A) 1.5° (5–10 A)	40 Hz – 5 kHz	15 mm dia.
TR2021	1 A – 30 A RMS	1%	3°	40 Hz – 10 kHz	20 mm dia.

Model

Current Range

Amplitude Accuracy ±

Phase Accuracy ±

Frequency Range

Max Conductor Size

TR2500

10 A – 500 A RMS

10–500 A: 1.5% of reading + 0.6 A

< 4°

48 Hz – 1 kHz

30 mm dia.

TR2500A

10 A – 500 A RMS

10–100 A: 2%
100–500 A: 1.2%

3° (10–100 A)
1° (100–500 A)

40 Hz – 5 kHz

50 mm dia.

TR2510

1 A – 10 A RMS

1–10 A: 1%
5–10 A: 1.2%

1.5°

40 Hz – 3 kHz

20 mm dia.

TR2510B

1 A – 10 A RMS

1–5 A: 2%
5–10 A: 1.2%

1° (1–5 A)
1.5° (5–10 A)

40 Hz – 5 kHz

15 mm dia.

TR2021

1 A – 30 A RMS

3°

40 Hz – 10 kHz

20 mm dia.

Fluke i5s AC Current Clamp

Fluke i400s AC/DC High Safety Current Clamp w/BNC output

Fluke i400s is the only current clamp available with a CAT IV 600 V / CAT III 1000 V safety rating
Companion to your scope or power quality meter to measure up to 400 A AC
Specially designed to offer maximum utility in a compact shape

Fluke 80i-110s AC/DC Current Clamp DC - 1kHz/20kHz

Current Ranges: 0 to 10A DC or AC peak 0 to 100A DC or AC peak
0 to 10A DC or AC peak
0 to 100A DC or AC peak

Fluke i410 AC/DC Current Clamp

Battery-powered Hall-effect probe measures 1 A to 400 A
1mV/Amp output guarantees easy reading on your meter
Take accurate current readings without breaking the circuit

Fluke i1010 AC/DC Current Clamp

Battery-powered Hall-effect probe that extend the current ranges of Fluke tools, measuring DC current from 1 A to 1000 A and AC current from 1 A to 600A
Provides accurate current reading without breaking the circuit
Compatible with most Fluke multimeters

AEMC MN 193 Current Probe

Fluke I2000 Flex AC Current Clamp

Three ranges: 20A, 200 A & 2000 A, 100 mV/A, 10 mV/A & 1 mV/A output
Ideal for current measurement on thick and hard to reach conductors without breaking the circuit
Maximum conductor diameter 178 mm

AEMC MN93 240A Current Probes

AEMC SR651 AC Current Probe

Large jaw opening accommodates conductors up to two 500 MCM conductors
Improved ergonomic design and easy operation
Conforms to EN 61010, 600 V Cat. III safety standard

AEMC SR752 AC Current Probe

Measurement range of 1mA to 1200AAC
Large jaw opening accommodates conductors up to two 500kcmil
Improved ergonomic design and easy operation
