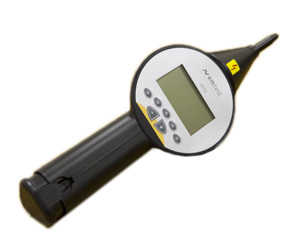

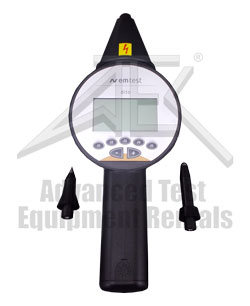

Test Levels |
CD mode |
500V - 10,000V +/-5% |
AD mode |
500V - 16,500V +/-5% |
Resolution |
100V steps |
Holding time |
More than 5 seconds |
Polarity |
Positive, negative |
Test voltage |
measured, indicated in the display |
Trigger |
Single mode |
Release of single pulses |
Continuous mode |
Continuous discharge up to 20Hz (AD) and 10Hz (CD) |
Pulse release via software |
Remote control from computer via fiber optic link (USB) |
Test Routines |
Easy Zap |
Test based on standard levels |
Quick Zap |
All test parameters are adjustable during test; fast and easy-to-use |
Evaluation |
Air discharge with 20Hz; for test point evaluation on the DUT |
Standard Test routines |
As per EN/IEC 61000-4-2, EN 61000-6-1/-6-2 |
Set-up |
Parameters, standard levels, etc. |
Displays and Controls |
Display |
LCD graphic display; 128 x 64 pixels |
Operation |
5 function keys, 2 cursor keys, pulse trigger |
Operation |
Manual |
Via function keys |
Remote control |
Via built-in optical interface |
Voltage Supply |
Battery (ACCU) |
More than 50,000 pulses @ 16.5kV; automatic power-off after 10 minutes if not operated |
Mains supply |
Via mains supply adapter (MAD) |
General Data |
Weight |
940 grams incl. battery |
Case material |
ABS; non-inflammable as per UL 94VO |
Temperature |
5°C - 40°C (operation conditions) |
Rel. humidity |
20% - 80% (operation conditions) |
Battery charger |
100V - 240V +/-10%; 50/60Hz Charging time less than 1.5 hours |
