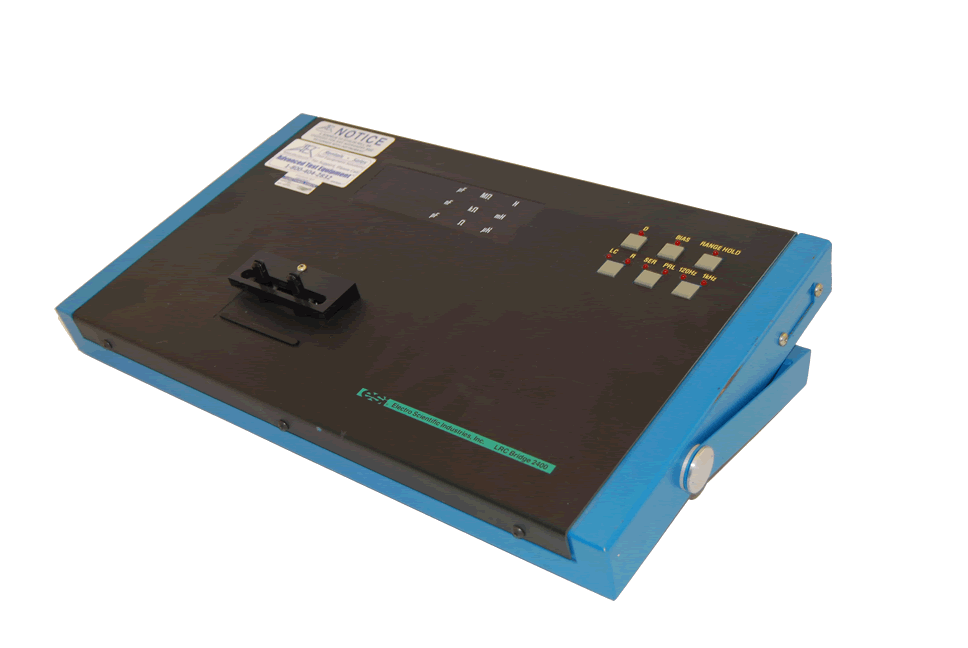

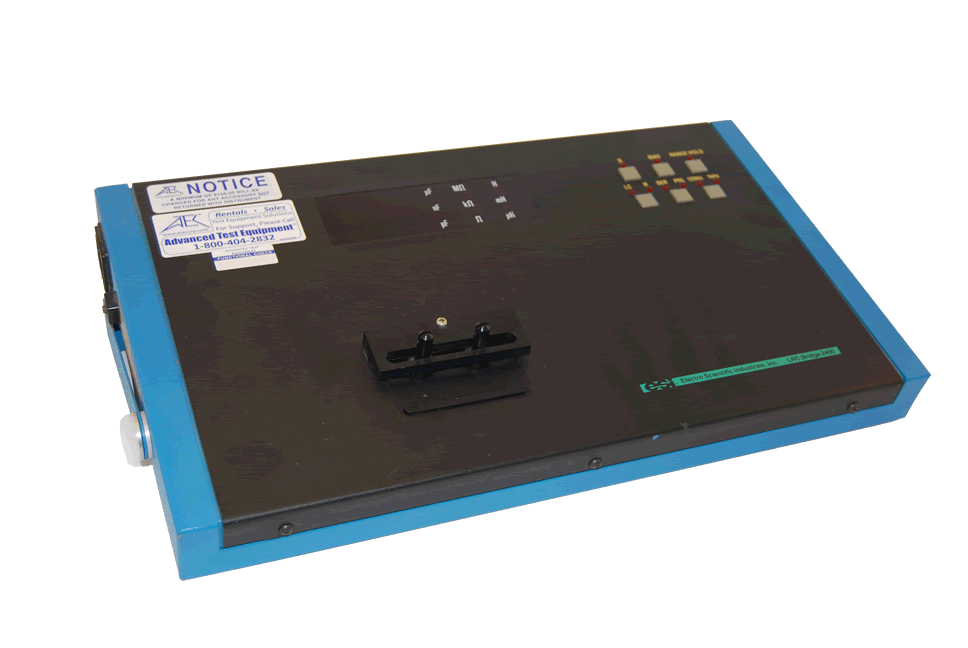

ESI / Tegam 2400 LCR Bridge, 120 Hz or 1 kHz

Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery
Rent ESI / Tegam 2400 LCR Bridge, 120 Hz or 1 kHz
Enlarge Image
Rent ESI / Tegam 2400 LCR Bridge, 120 Hz or 1 kHz Rent ESI / Tegam 2400 LCR Bridge, 120 Hz or 1 kHz
ESI / Tegam 2400
Request Quote Print Page

The ESI / Tegam 2400 LCR Bridge, 120 Hz or 1 kHz measures inductance, capacitance, resistance, and dissipation factor, to a basic accuracy of ±0.25% of reading, for values up to 2000 Henrys, 2000 microfarads, and 2 MΩ, respectively. Measurements can be made at frequencies of 120 Hz or 1 kHz, as required, and either the Series Equivalent or Parallel Equivalent component values can be displayed. Range selection is fully automatic and the LRC Bridge automatically discriminates between inductors and capacitors. An internal DC bias voltage of 2 Volts can be selected for use when testing electrolytic capacitors. The operating system of the LRC Bridge provides assistance to the user, in selecting the measurement mode and frequency, to give best accuracy. Loss of basic accuracy due to measurement of the minor term in any component is also indicated. Measurements up to 9999 henrys, 9999 microfarads, and 100 MΩ can be made, although at a degraded accuracy.
ESI / Tegam 2400 Specs
Variables measured R, L, C, and D
Modes Series or parallel equivalent circuit
Measurement frequency user selectable 120 Hz or 1 kHz
Maximum voltage across component 0.3 Vrms
Measurement update rate 2 per second
Maximum time for valid reading after connecting component 1 sec
Display 4 digit, LED with automatic decimal point
Connection to component under test 4-terminal via integral test fixture
Automatic functions Full auto-range
Auto-function distinguishes between L and C
User prompt to change frequency or mode to improve accuracy
Measurement Ranges R: 0.000 Ω to 100 MΩ
L: 0.0 microhenry to 9999 henrys
C: 0.0 picofarad to 9999 microfarads
D: 0.000 to 99.9
Best Resolution L: 0.1 microhenry
C: 0.1 picofarad
R: 0.001 Ω
D: 0.001
Digital outputs digital output of reading and range available for use with limits comparator
Input protection the input is protected against connection of capacitors of up to 10 mF charged up to 50 Volts
