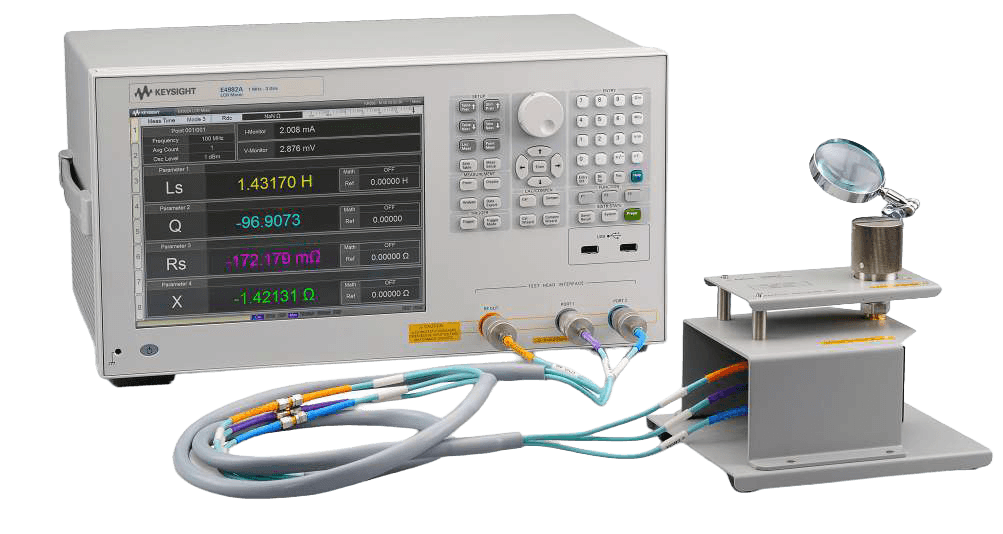

Keysight E4982A-300 LCR Meter
Enlarge Image
Keysight E4982A-300
Request Quote Print Page
E4982A-300 Datasheet
The Keysight E4982A-300 LCR Meter is a 1MHz-3GHz precision LCR testing device operating at a frequency range of 1MHz-3GHz. Keysight E4982A-300 models provide optimal performance for passive component manufacturing projects such as SMD inductors and EMI filters, where impedence testing at high frequencies is required. This LCR Meter offers uber-quick .9 msec measurement when set to time mode 1 and can measure over 11 parameters from 0.14Ω to 4.8kΩ with .8% basic accuracy. The sleek interface is capable of connecting via GPIB, LAN or USB connection methods. List measurement is available up to 201 points per table in a table and plot format. Technicians define their own function keys and parameters, and the Keysight E4982A-300 responds with context sensitive embedded help, all displayed on a 10.4 inch LCD touch screen. Applications of this LCR meter include R&D, quality assurance and a variety of fields requiring high-speed component tests.

Keysight E4982A-300 Features
  • Multiple frequency range choices: 1 MHz to 300 MHz, 500 MHz, 1 GHz or 3 GHz
  • High-speed testing: 0.9 ms (Mode 1), 2.1 ms (Mode 2), 3.7 ms (Mode 3); Up to 6x faster than the 4287A
  • 0.8% accuracy with unrivaled measurement repetition capability
  • Wide impedance measurement ranging from 140 mΩ to 4.8 kΩ
  • 4287A compatibile: features SCPI, handler-interface with 10 varieties of test fixture
  • Small test-head (same size as 4287A)
  • Versatile in PC connection methods (GPIB, LAN and USB)
  • E4982A-030 1 MHz to 300 MHz
  • E4982A-050 1 MHz to 500 MHz
  • E4982A-100 1 MHz to 1 GHz
  • E4982A-300 1 MHz to 3 GHz
  • E4982A-004 Add working standard set
  • E4982A-019 Standard Data Storage 1
  • E4982A-020 Add test fixture extension cable set (1 m)
  • E4982A-700 16195B calibration kit
  • E4982A-710 Test fixture stand
  • E4982A-720 3.5 mm to 7 mm coaxial adapter
  • E4982A-810 Add keyboard
  • E4982A-820 Add mouse
  • E4982A-1A7 ISO 17025 compliant calibration
  • E4982A-A6J ANSI Z540 compliant calibration
