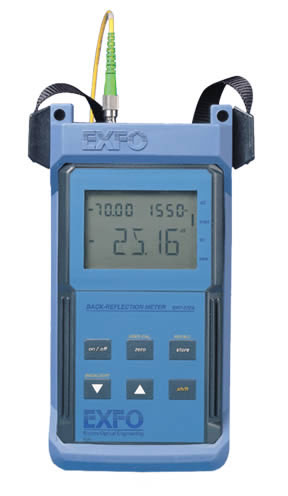

Exfo BRT320A Back Reflection Test Set

Exfo BRT320A Back Reflection Test Set
Enlarge Image
Request Quote Print Page
Specifications

EXFO’s BRT-320A is a field-ready return loss test set offered in five configurations: 1310 nm, 1550 nm or 1625 nm; dual-wavelength 1310/1550 nm or 1550/1625 nm. All come equipped with rapidly stabilizing TEC lasers and low-drift photodetectors to ensure constant optical return loss (ORL) measurements year after year.

Features:

  • 1300/1550 nm dual wavelength lasers
  • Direct and isolated back reflection measurements
  • Back reflection readings can be stored; up to 300 memories



Specifications:

  • Source: Lasers
  • Wavelength: 1300 ± 15 / 1550 ± 15 nm
  • Spectral Width: 5/5 nm
  • Range: -8 to -70 dB
  • Resolution: ±.05 dB
  • Power Output: -6/-6 dBm
