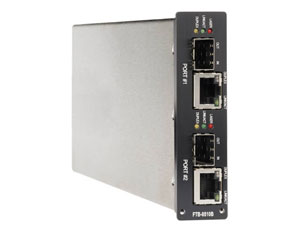

EXFO FTB-8510B Packet Blazer

Rent EXFO FTB-8510B Packet Blazer
Enlarge Image
Request Quote Print Page
Datasheet
The EXFO FTB-8510B Packet Blazer brings performance assurance to Ethernet-based services. Its wide range of test functionalities provides all the necessary measurement tools for verifying service-level agreements (SLAs) between service providers and their customers. The FTB-8510B module is the ideal tool for turning-up and troubleshooting Ethernet-based mobile backhaul, commercial and wholesale services.  Combined with its rack-mounted remote test unit counterpart, the RTU-310, the FTB-8510B simplifies and speeds up the deployment of Ethernet services. The combination of the portable EXFO FTB-200-S1 or EXFO FTB-200-V2-S1 and the FTB-8510B Packet Blazer with the IPTV software option offers service providers the most effective tool to quickly and efficiently test and monitor IPTV streams over their network


Features:


  • Complete EtherSAM (ITU-T Y.1564) test suite allowing full validation of today’s Ethernet services (bidirectional results through dual test set)
  • Throughput, back-to-back, latency and frame loss measurements as per RFC 2544 (bidirectional results through dual test set)
  • Multistream generation and analysis, providing per-stream measurements for throughput, latency, frame loss and packet jitter
  • True wire-speed and stateful TCP throughput testing
  • PBB-TE and MPLS support for Carrier Ethernet
  • Up to 1 Gbit/s full-line-rate data capture and decode
  • IPTV testing and analysis
  • Dual port capability for simultaneous traffic generation and reception at 100 % wire speed for 10/100/1000Base-T, 100Base-FX, 100Base-LX, 1000Base-SX, 1000Base-LX or 1000Base-ZX full-duplex networks at all packet sizes
