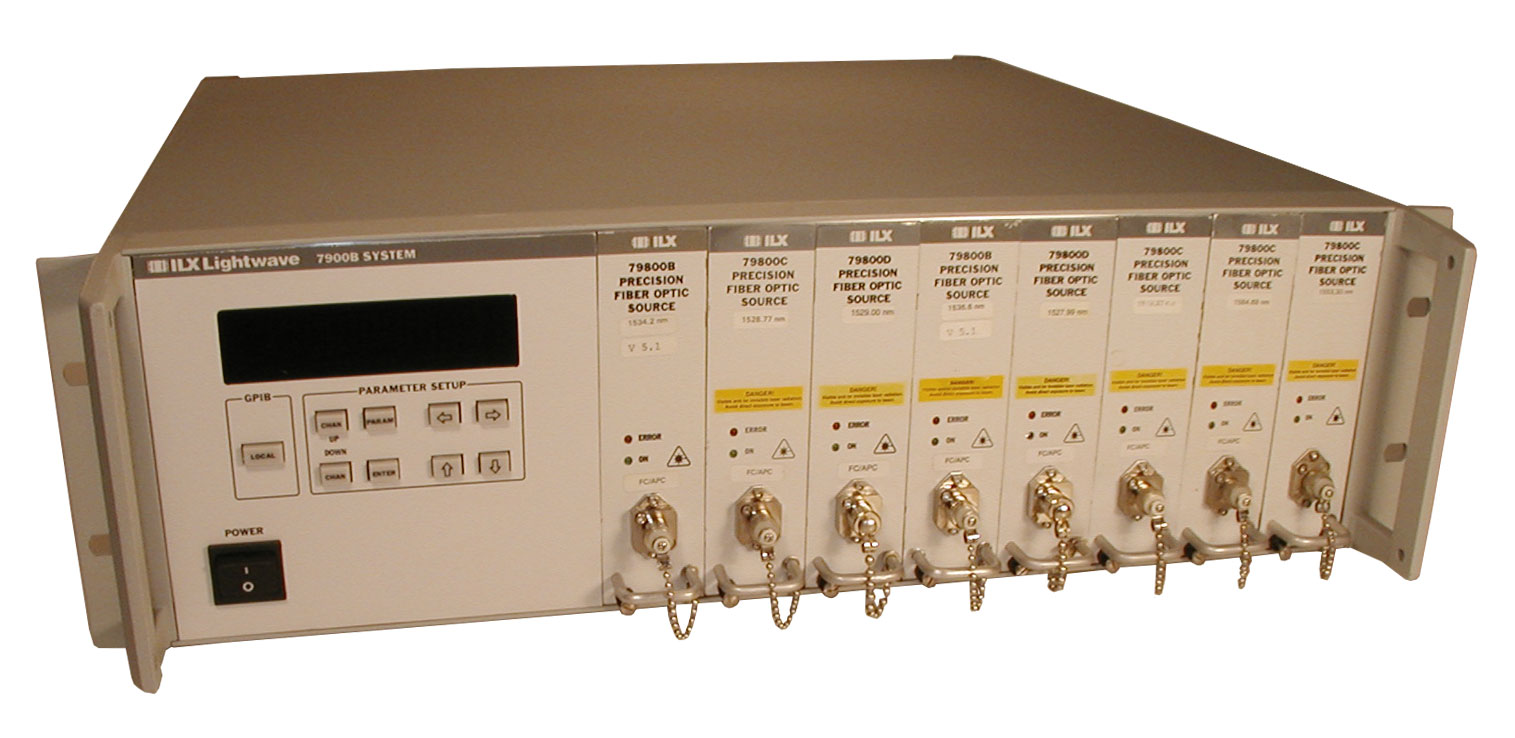

ILX Lightwave 7900B Multi-Channel Fiber Optic Mainframe
Enlarge Image
ILX Lightwave 7900B
Request Quote Print Page
Manual 7900B Datasheet Supplemental Document

The ILX Lightwave FOM-7900B Multi-Channel Fiber Optic Mainframe System meets the demands of high channel count fiber optic testing. The FOM-7900B System Mainframe provides the capability to synchronously modulate up to 200 fiber optic source modules. To further simplify system integration, we provide input and output modulation ports. For fast, automated testing, the FOM-7900B has a GPIB/IEEE–488.2 interface and LabVIEW® instrument drivers.

The FOM-7900B is a high-performance fiber-optic test and development platform that consists of an 8-bay instrument mainframe and supporting plug-in modules all controlled by an intuitive, user-friendly interface. This system provides a cost-effective solution for all your WDM test application needs, including EDFA testing and fiber optic component characterization.
ILX Lightwave FOM-7900B Uses the following modules:
  • FOS-79710 Fiber Optic Switch Module
  • FOS-79800D/315C1 WDM DFB 10 mW Source Module
  • FOS-79800D/315L1 WDM DFB 10 mW Source Module
  • FOS-79800D/315C2 WDM DFB 20 mW Source Module
  • FOS-79800D/315L2 WDM DFB 20 mW Source Module
  • DPM-79810 Dual Power Meter Module
  • SS-810 SourceShutter Option (not compatible with PM Alignment Module)
  • PM Alignment - Per Channel PM Alignment
ILX Lightwave 7900B Features
  • Up to 8 channels per mainframe
  • Customer-specified wavelength, output power, connector, and fiber options
  • Synchronous modulation of sources up to 500 kHz
  • Internal Modulation Waveform Frequency: 0.1 - 500 kHz
  • Modulation Input Frequency: 1 - 500 kHz
  • Computer Interface: GPIB/IEEE-488.2, RS-232
