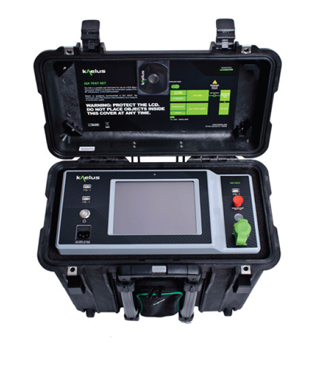

Kaelus IQA PIM Analyzer Series

The Kaelus IQA Passive Intermodulation (PIM) Analyzer is a feature-rich, high-power test system. The IQA PIM Test Set fulfills the IEC 62037 standard for passive intermodulation with an innovative design for increased safety and efficiency. This field-proven PIM test instrument enables network operators to improve site performance by finding and eliminating sources of passive intermodulation at the cell site. The design includes an integrated panel PC with intuitive touch screen interface for performing tests and generating site reports, and offers Range To Fault (RTF) technology as an additional optional module. Operators are able to activate RTF mode within the IQA user software to accurately measure the distance to return loss faults as well as the distance to PIM faults at the cell site. The Kaelus IQA PIM Analyzer performs immediate and accurate Distance-to-PIM tests, informing you of the distance and magnitude of all PM sources simultaneously, both within the antenna system and beyond the antenna itself. With the growing amount of systems which utilize duplex transmissions paired with collocated transmitters and receivers, the Kaelus IQA PIM Test Set is an essential tool to discover distortions to RF transmissions.

The Kaelus iQA PIM Analyzer Series consists of the IQA-700LB, IQA-700LC, IQA-700HB, iQA-790C, IQA-700HC, IQA-850B, IQA-850C, iQA-900C, iQA-901C, iQA-1800C, IQA-1921C and iQA-2101C models.

Features
Specifications
Applications
Options
Accessories
Standards
Videos

Features

Rugged, reliable construction suitable for field use
Fully configurable frequencies, powers and IM product
Integrated polycarbonate transit case
Simple to operate touch screen interface
Internal report generation
Spectrum monitor, frequency sweep and time trace modes

Specifications

Model	Description	TX Range	RX Range (PIM)	RTF Module
iQA-700LB	700 MHz (low)	728-746 MHz	698-716 MHz	Not Available
iQA-700LC	700 MHz (low)	728-746 MHz	698-716 MHz	RTF-1000A
iQA-700HB	700 MHz (high)	728-757 MHz	776-787 MHz	Not Available
iQA-700HC	700 MHz (high)	728-757 MHz	776-787 MHz	RTF-1000A
iQA-790C	LTE800	791-821MHz	832-862MHz	RTF-1000A
iQA-850B	850 MHz	869-894 MHz	824-849 MHz	Not Available
iQA-850C	850 MHz	869-894 MHz	824-849 MHz	RTF-1000A
iQA-900C	GSM900	935-960MHz	890-915MHz	RTF-1000A
iQA-901C	EGSM900	925-960MHz	880-915MHz	RTF-1000A
iQA-1800C	DCS1800	1805-1880MHz	1710-1785MHz	RTF-2000A
iQA-1921C	Dual Band PCS/AWS	1930-1990 MHz / 2110-2155 MHz	1710-1755 MHz / 1850-1910 MHz	RTF-2000A
iQA-2101C	UMTS (3rd & 7th order)	2110-2170MHz	1920-2080MHz	RTF-2000A
