Kaelus

Kaelus IQA-700LC PIM Analyzer

  Tech Support
(800) 404-2832
ATEC Assurance With Every
Rental
    Worldwide
Delivery

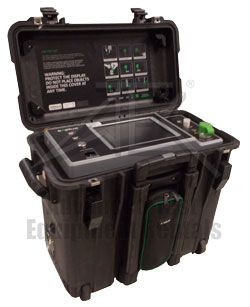

Kaelus IQA-700LC PIM Analyzer Larger
Kaelus IQA-700LC PIM Analyzer

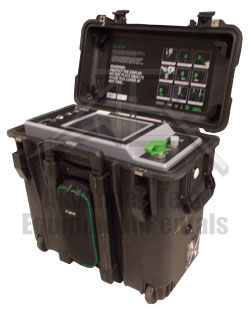

Kaelus IQA-700LC PIM Analyzer
Kaelus IQA-700LC PIM Analyzer
Categories
  • PIM Testers
    PIM Testers
Documents
  • Datasheet
  • Print
  • Email

Item Discontinued

View the Kaelus iPA PIM Analyzer Series

The Kaelus IQA-700LC PIM Analyzer operates at a transmission and receiving band frequency range of approximately 700-800MHz and possesses RTF-1000A module capability. The IQA Passive Intermodulation (PIM) analyzer is a feature-rich, high power PIM test solution which fulfills the IEC 62037 standard for passive intermodulation, its innovative design increasing safety and efficiency. This field-proven analyzer enables network operators to improve site performance by finding and eliminating sources of passive intermodulation at the cell site. The design includes an integrated panel PC with intuitive touch screen interface for performing tests and generating site reports. The Kaelus IQA-700LC PIM Analyzer performs immediate and accurate Distance-to-PIM tests, informing you of the distance and magnitude of all PM sources simultaneously, both within the antenna system and beyond the antenna itself. With the growing amount of systems which utilize duplex transmissions paired with collocated transmitters and receivers, the Kaelus IQA-700LC PIM Test Set is an essential tool to discover distortions to RF transmissions.

The Kaelus IQA-700LC PIM Analyzer is the second model in the Kaelus IQA PIM Analyzer Series.
  • Specifications
  • Features
  • Applications
  • Options
  • Accessories
  • Standards
  • Videos
Features
  • Rugged, reliable construction suitable for field use
  • Integrated polycarbonate transit case
  • Simple to operate touch screen interface
  • Fully configurable frequencies, powers and IM product
  • Spectrum analyzer mode
  • Internal report generation
  • Spectrum monitor, frequency sweep and time trace modes
Specifications
Frequency Ranges
TX RANGE 728-746 MHz
RX RANGE (PIM) 698-716 MHz
System
Measurement method Reverse (reflected) PIM, 3rd, 5th, 7th and 9th order
Residual PIM < -115dBm/-158dBc max (<-125dBm/-168dBc typ.)
User interface ports 2x USB, x1 LAN 1x RF output (7-16 DIN female)
Display 8.4in (213mm) touch screen display
Transmitter
Frequency increment 50 kHz
Frequency accuracy ± 5ppm (max), aging ± 1ppm (max) after first year
Power per tone (adjustable) 2x 2 to 20W (+33 to +43dBm)
Power accuracy (per tone) ± 0.5dB (max)
Receiver
Measurement noise floor < -128dBm
Measurement range -50dBm to -128dBm
Electrical
Mains power 115-230V, 50/60Hz AC
Power consumption 650W
Mechanical
Dimensions 19 x 18 x 12in (500 x 457 x 305mm)
Weight < 50lbs (22.7kg)
Cooling Forced air
Environmental
Operating temperature range -10°C to +40°C
Storage temperature range -20°C to +60°C
Ingress protection (IP) IP20 (with lid open) IP21 (with lid closed)
Relative humidity 5% to 95% RH non-condensing
Mechanical shock 40G shock rating
Applications
Options
Accessories
Standards
Media

RELATED PRODUCTS

Anritsu PIM Master MW82119B-0194 Passive Intermodulation Analyzer, PCS/AWS
Anritsu PIM Master MW82119B-0194 Passive Intermodulation Analyzer, PCS/AWS
Anritsu PIM Master MW82119B-0850 Passive Intermodulation Analyzer, Cellular 850 MHz
Anritsu PIM Master MW82119B-0850 Passive Intermodulation Analyzer, Cellular 850 MHz
Anritsu PIM Hunter Probe
Anritsu PIM Hunter Probe 2000-1884-R
Anritsu PIM Master MW82119A PIM Analyzer Series
Anritsu PIM Master MW82119A PIM Analyzer Series
Anritsu PIM Master MW82119B Passive Intermodulation (PIM) Analyzer
Anritsu PIM Master MW82119B Passive Intermodulation (PIM) Analyzer
Anritsu PIM Master MW82119B-0260 Passive Intermodulation Analyzer, LTE 2600 MHz
Anritsu PIM Master MW82119B-0260 Passive Intermodulation Analyzer, LTE 2600 MHz
Anritsu PIM Master MW82119B-0600
Anritsu PIM Master MW82119B-0600 PIM Tester
Anritsu PIM Master MW82119A-0700 PIM Analyzer
Anritsu PIM Master MW82119A-0700 PIM Analyzer, LTE 700 MHz
Kaelus iPA-0707A PIM Analyzer
Kaelus iPA-0707A PIM Tester
Kaelus iPA-1921A PIM Analyzer
Kaelus iPA-1921A PIM Tester
Kaelus iPA-0850A PIM Analyzer
Kaelus iPA-0850A PIM Tester
Kaelus IAK-0060A PIM Accessory Kit
Kaelus IAK-0060A PIM Accessory Kit
Kaelus RTF-2000A RTF Module
Kaelus RTF-2000A RTF Module
Kaelus RTF-1000A RTF Module
Kaelus RTF-1000A RTF Module
Kaelus iPA-1900A PIM Analyzer
Kaelus iPA-1900A PIM Analyzer
Anritsu MT2780A IQ Fiber Master
Anritsu MT2780A IQ Fiber Master
Anritsu PIM Master MW82119B Analyzer
Anritsu PIM Master MW82119B Analyzer Series
Anritsu PIM Master MW82119B-0700
Anritsu PIM Master MW82119B-0700 PIM Analyzer, LTE 700 MHz
900633-02
ConcealFab 900633-02 Filter Kit
Kaelus iPA PIM Analyzer Series
Kaelus iPA PIM Analyzer Series
Kaelus iPA 0600A
Kaelus iPA-0600A Portable PIM Tester
Kaelus iPA-0707D 40W
Kaelus iPA-0707D 40W Portable PIM Tester
Kaelus iPA-0790A PIM Analyzer
Kaelus iPA-0790A PIM Analyzer
Kaelus iPA-2600A PIM Analyzer
Kaelus iPA-2600A PIM Analyzer
Kaelus iXA 0707A
Kaelus iXA 0707A Portable PIM Tester
  • Certified ISO 9001
  • A2LA
REP PORTAL Terms & Conditions About About ATEC Blog Media News FAQs Forms Careers

© 2023 Advanced Test Equipment Corp. All Rights Reserved.

Privacy Notice Terms of Use Site Map Linecards
This site uses cookies, as explained in our cookie policy.
