Keysight 4191A RF Impedance Analyzer

Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery
4191A RF Impedance Analyzer
Enlarge Image

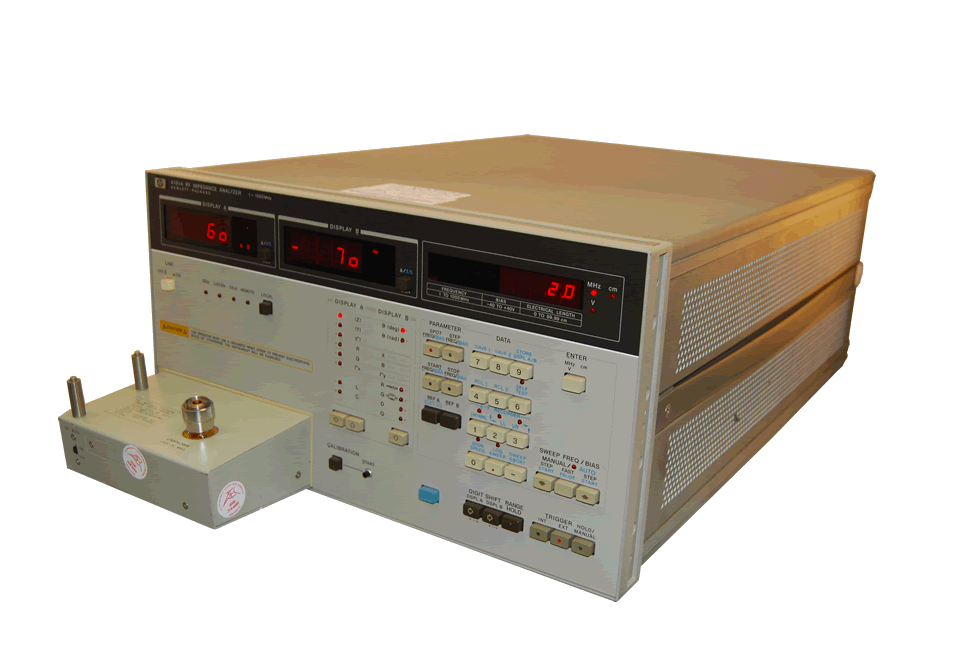

4191A RF Impedance Analyzer 4191A RF Impedance Analyzer
Keysight 4191A
Request Quote Print Page
4191A Datasheet

The 4191A RF Impedance Analyzer measures 14 parameters with a maximum resolution of 4½ digits . The internal synthesizer provides variable frequencies from 1 MHz through 1000 MHz covering the UHF, VHF and video bands with automatic sweep capability. An internal dc bias supply with auto sweep function covers the voltage range of ±40 V in 10 mV steps.

The 4191A permits reliable measurements over a wide measuring range. Its outstanding repeatability, frequency response and accuracy are made possible by unique error correction capability and specially designed test fixtures. These features allow the 4191A to be used in evaluation of electronic materials, components and circuitry.

Keysight 4191A Features
  • 1 - 1000 MHz variable test frequency with sweep capability
  • Direct reading of |Z| - Θ, |Y| - Θ, |F| - Θ; L, C-R, G, D, Q, R-X, G-B, Px-Py
  • High resolution - 4½ digit max
  • Wide measuring range- 1 m - 100k (|Z|)
  • Versatile, easy-to-use test fixtures
Keysight 4191A Accessories

Optional Accessories Available:

16091A Coaxial Test Fixture

16092A Spring Clip Test Fixture

16093A/16093B Binding Post Test Fixture

16904A Probe Fixture
