The Keysight E4990A Impedance Analyzer has a frequency range of 20 Hz to 120 MHz and provides an industry best 0.045% (typical) basic accuracy over a wide impedance range, with a 40 V built-in DC bias source. The Keysight E4990A's equivalent circuit analysis function supports seven different multi-parameter models and helps you to simulate your own equivalent parameter values of components. Five frequency options (20 Hz to 10/20/30/50/120 MHz) and frequency upgrades allow you to choose the most appropriate Keysight E4990A option. With option 001, which enhances measurement speed, the low-frequency (10M/20M/30M/50M) models of the E4990A are as fast as the flagship 120-MHz E4990A model. It’s suitable to reduce overall cost-of-test for accurate evaluation like resonators or inductors or incoming inspection where many points per device or many DUT measurements are required.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Features

Five frequency options: 20 Hz to 10/20/30/50/120 MHz, upgradable
±0.08% (typical ±0.045%) basic impedance measurement accuracy
25 mΩ to 40 MΩ wide impedance measurement range (10% measurement accuracy range)
Measurement parameters: |Z|, |Y|, θ, R, X, G, B, L, C, D, Q, Complex Z, Complex Y, Vac, Iac, Vdc, Idc
Built-in DC bias range: 0 V to ±40 V, 0 A to ±100 mA
Enhanced measurement speed option (option 001. For 10M/20M/30M/50M options only)
4-channel & 4-trace on 10.4 inch color LCD with touch screen
Data analysis function: Equivalent circuit analysis, limit line test

Specifications

Operating frequency	20 Hz to 10/20/30/50/120 MHz (Option 010/ 020 /030/ 050/120 respectively)
Measurement parameters	\|Z\|, \|Y\|, q, R, X, G, B, L, C, D, Q, Complex Z, Complex Y, Vac, Iac, Vdc, Idc
Basic impedance accuracy	± 0.08% (typical ± 0.045%)
Q accuracy	± 3% (typical) at Q = 100, frequency ≤ 10 MHz
Impedance range	25 mΩ to 40 MΩ (10% accuracy)
Measurement time	3 msec/point at Option 120, and 010/020/030/050 with Option 001, frequency ≥ 100 kHz, measurement time = 1 (fast)
Measurement type	Four-terminal-pair measurement (standard) 7-mm 1-port measurement with 42942A measurable grounded devices Impedance probe measurement with 42941A measurable grounded devices
Voltage/current signal level	5 mVrms to 1 Vrms /200 μArms to 20 mArms, 1 mV/20 μA resolution
DC bias	0 to ± 40 V/± 100 mA, 1 mV/40 μA resoluton
Auto level control (ALC)	Signal level voltage/current, DC bias voltage/current
Sweep parameters	Frequency, signal voltage/current, DC bias voltage/current
Sweep type	Linear frequency, log frequeny, linear signal level, linear DC bias, log DC bias, segment
Number of measurement points	2 to 1601
Number of channels/traces	4-channel/4-trace
Marker	10 independent markers per trace, delta marker, marker search, marker analysis
Data analysis	Equivalent circuit analysis, limit line test

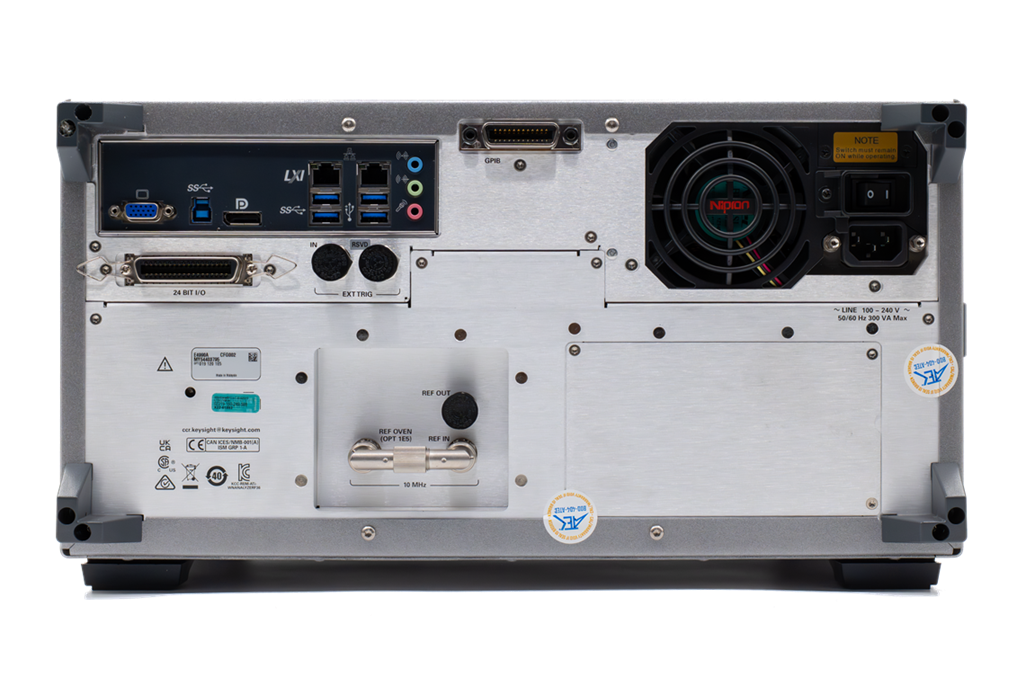

Interface	USB (front 2, rear 4), LAN, USBTMC, GPIB, 24 bit I/O
Display	10.4 inch TFT color LCD with touch screen
