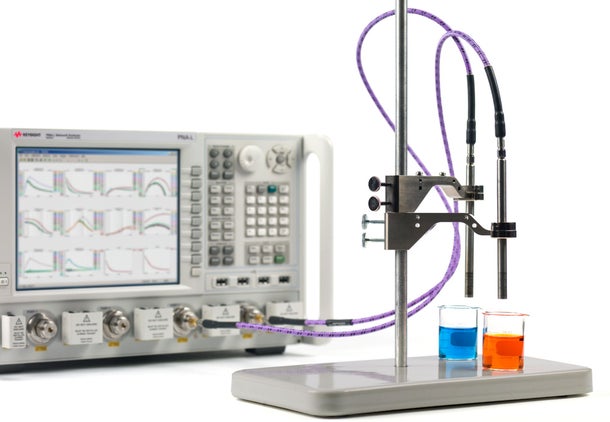

The Keysight N1501A Dielectric Probe Kit uses a network analyzer and other software to find the electromagnetic features of the dielectric matter. In its analysis, the N1501A Dielectric Probe Kit can also find the molecular makeup of similar properties. The probe kit can instantly find complex permittivity in formats like dielectric constant and loss factor.
Through the use of various probes, the N1501A can measure a wide range of frequencies, starting as low as 200 MHz and reaching 50 GHz. The three probes, high temperature, performance, and slim form, are built to provide analysis on a variety of objects and properties.
Features
- Measures complex permittivity
- Designed to work with Keysight N1500A materials measurement suite, with Option 004 coaxial probe method
- Best for measuring liquids and conformable solids
- Flexible option configuration allows you to choose the probes and accessories you need, anytime you want, and to fit your budget
Specifications
| High Temperature Probe |
| Frequency range with a network analyzer |
200 MHz to 20 GHz; |
| Frequency range with an impedance analyzer |
10 MHz to 3 GHz |
| Male connector |
3.5 mm |
| Temperature range |
–40 to +200°C |
| Performance Probe |
| Frequency range |
500 MHz to 50 GHz; |
| Male connector |
2.4 mm |
| Temperature range |
–40 to +200°C |
| Slim Form Probe |
| Frequency range |
500 MHz to 50 GHz; |
| Male connector |
2.4 mm |
| Temperature range |
0 to +125°C |
