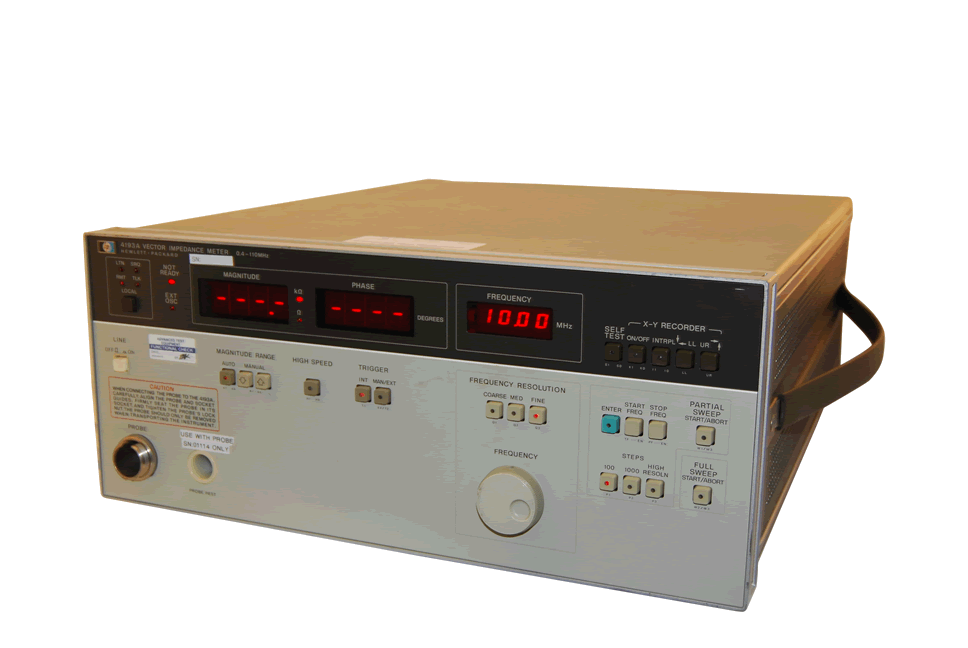

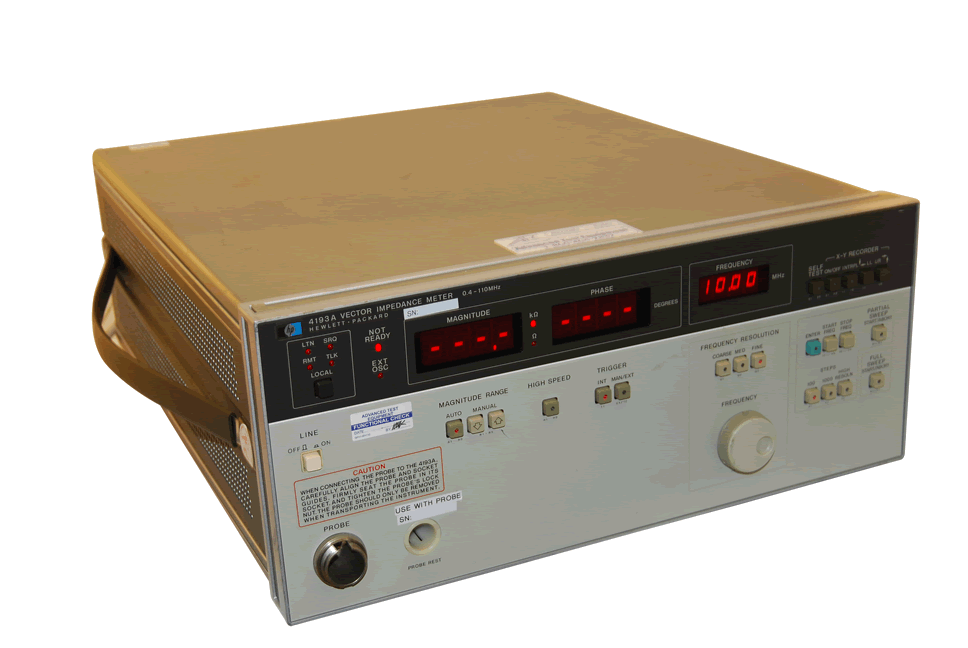

HP/Agilent 4193A Vector Impedence Meter
Enlarge Image
HP/Agilent 4193A Vector Impedence Meter HP/Agilent 4193A Vector Impedence Meter
Keysight 4193A
Request Quote Print Page
The Keysight 4193A Vector Impedance Meter measures impedance magnitude and phase. An internal oscillator provides test signals from 400 kHz to 110.0 MHz. The test signal is a constant current between 10µA and 100µA, depending on |Z| range.
Keysight 4193A Features
  • Test components in-circuit and out-of-circuit
  • Measure impedance magnitude (10 mΩ to 120 kΩ) and phase (-180.0 to +180.0)
  • Fixtures include low-grounded probe, spring clip fixture, and binding post fixture
  • Standard HP-IB and analog outputs
Keysight 4193A Specs
Test Signal Output
Frequency Range 400 kHz to 110.0 MHz
Frequency Control Spot: Spot frequency is set using coarse, medium and fine controls
Full sweep: Logarithmic sweep at 43 points over full range of 400 kHz to 110 MHz
Partial Sweep: Linear sweep from selected START to STOP frequency
Impedance Measurement
Input Configuration Low-grounded probe (furnished)
Digital Display of Impedance: 3½ digits |Z|: 0 to 1999 counts (0 to 120 counts on 100 kΩ range)
θ: -1800 to +1800 counts (-180 to +180 counts on 100 kΩ range)
Measurement Range |Z|: Five decade ranges: 10 Ω, 100 Ω, 1 kΩ, 10 kΩ, 100 kΩ
Minimum |Z| (sensitivity): 10 mΩ
Maximum |Z|: 120 kΩ
One range: -180.0° to +180.0°
