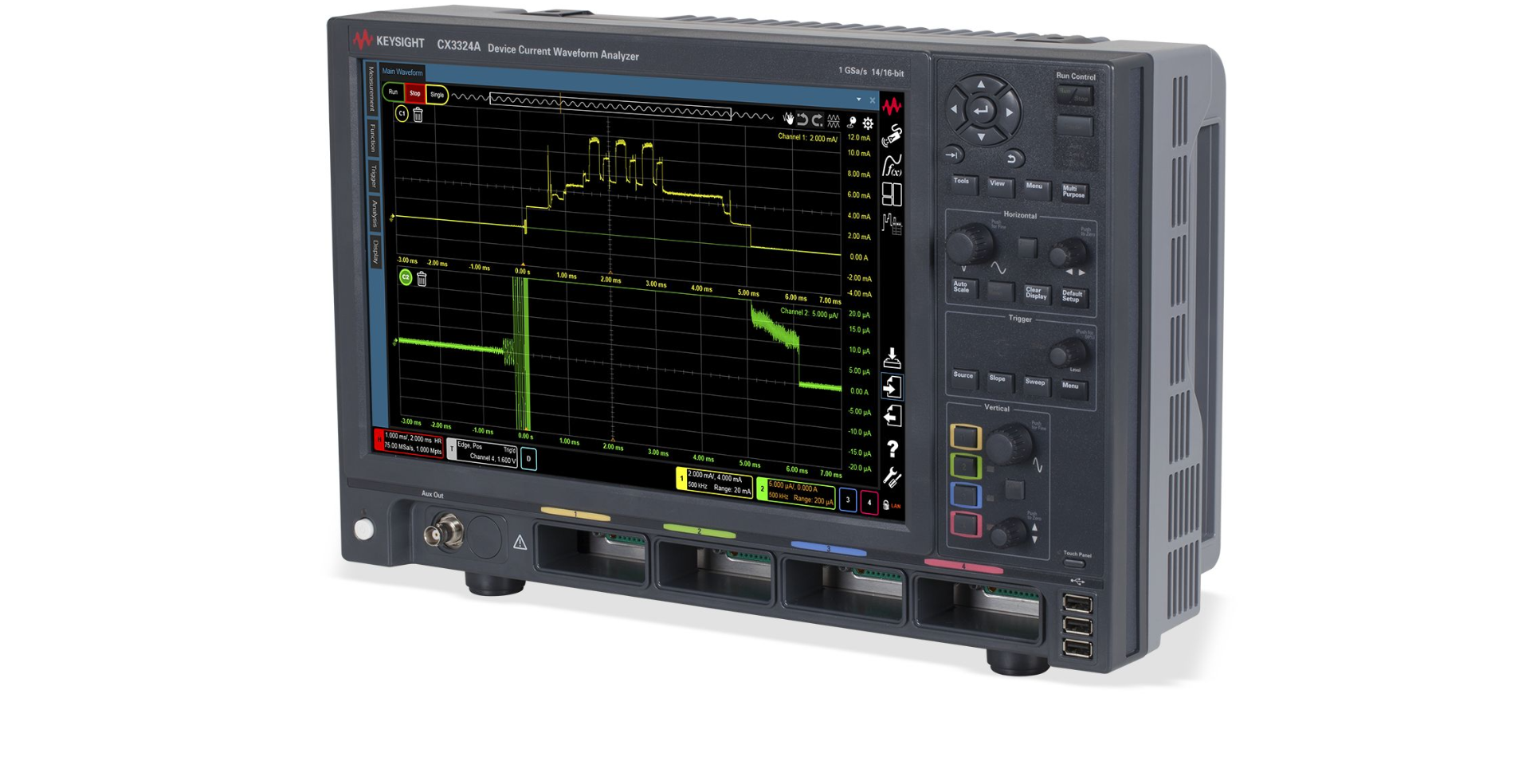

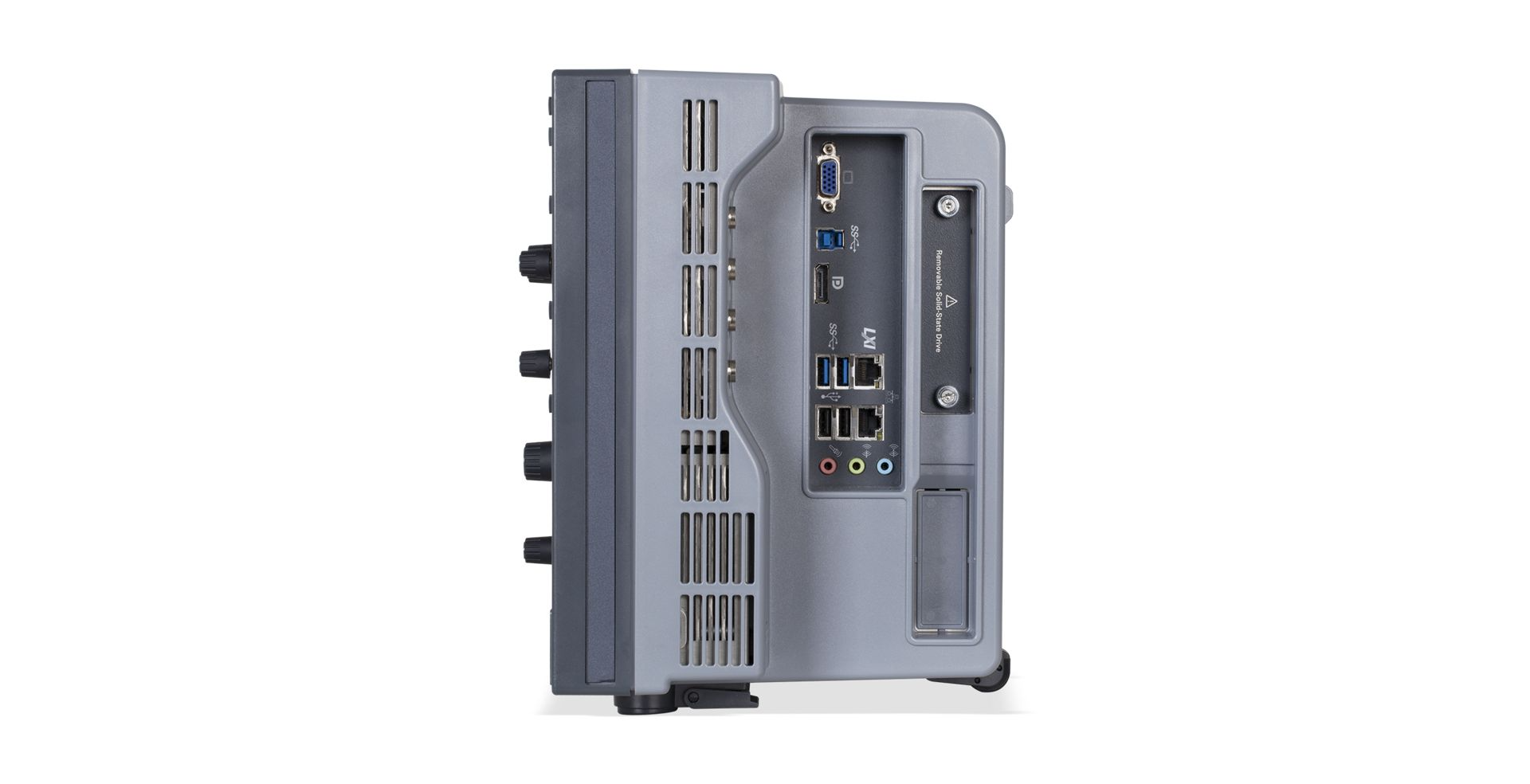

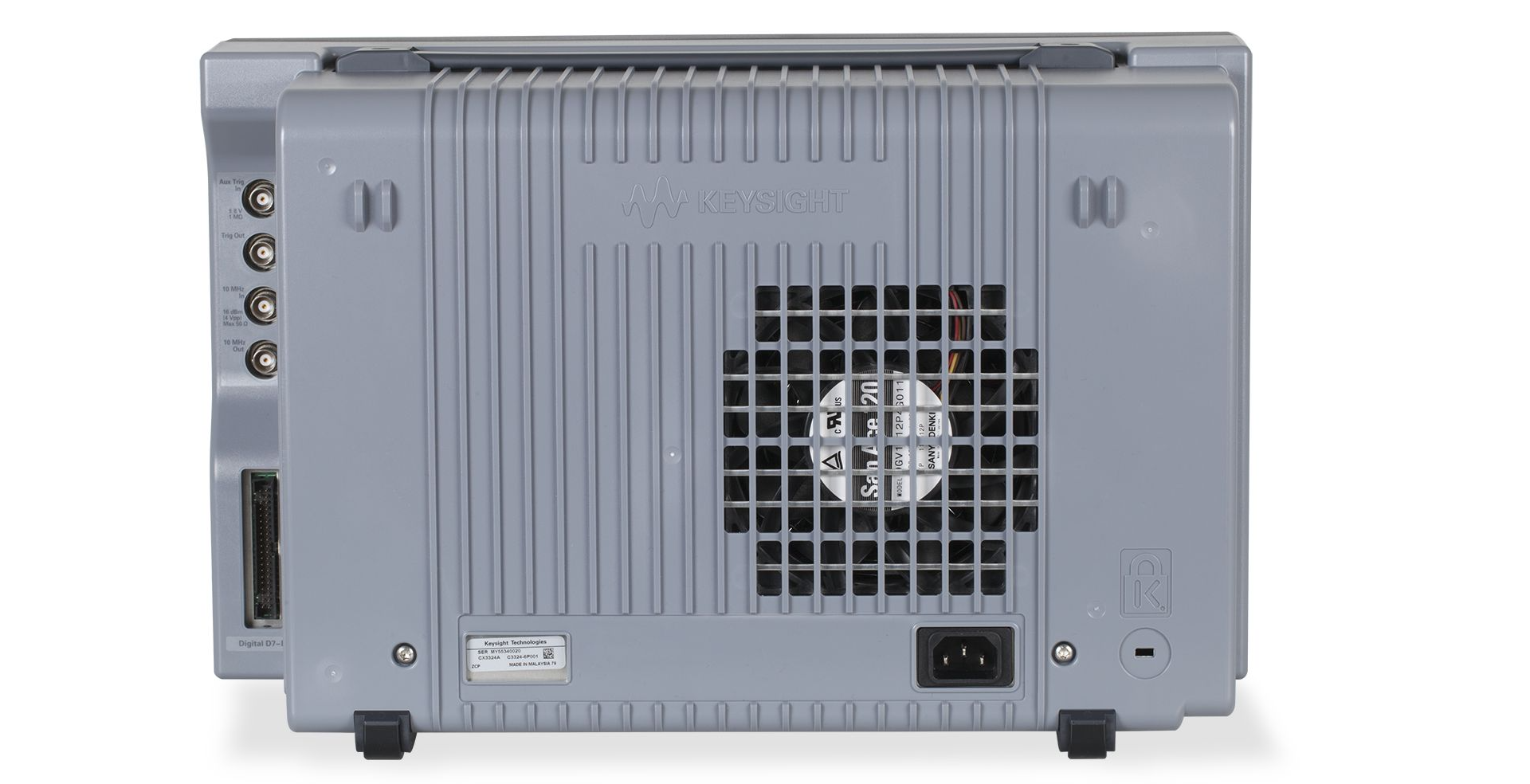

Keysight CX3324A Device Current Waveform Analyzer

The Keysight CX3324A Device Current Waveform Analyzer is a 4-channel current and voltage analysis tool with bandwidth options of 50 MHz, 100 MHz, and 200 MHz as well as memory depth options of 16 Mpts/ch, 64 Mpts/ch, or 256 Mpts/ch. The CX3324A uses a single-channel current sensor and a passive probe interface that enables power measurements. Engineers can zoom in on any part of the waveform they need to look at in more depth on the Keysight CX3324A capacitive touch screen. Operators working under strict time-to-market constraints will appreciate the interface's adaptability. The Keysight CX3324A is used for research and development testing on the Internet, mobile, advanced NVM, sensor, and control unit devices for use in the communications, medical, semiconductor, and automotive industries.

Product Info Related Products

Analog bandwidth	50 MHz - 200 MHz
Max sample	1 GSa/s
Memory depth	4 Mpts, 16 Mpts, 64 Mpts, 256 Mpts
Vertical resolution	14-bit
Input impedance	50 Ω: ± 3.5%
nput range	± 0.65 V nominal, ± 2 V peak
Weight	11 kg (24 lb.)
Dimensions (W x H x D)	425 mm x 266 mm x 196 mm ( 16 x 10 x 8 in)

"Anywhere" zoom function
Dual channel current sensor
Wide bandwidth
Trigger settings
Touch panel switch

Power Consumption Analysis: Optimizing low-power devices like IoT sensors and wearables.
Battery Testing: Characterizing battery discharge and performance in battery-powered devices.
Semiconductor Characterization: Testing transistors, ICs, and measuring leakage currents.
Power Supply Testing: Analyzing ripple, noise, and dynamic load response.
Circuit Debugging: Real-time current measurement for troubleshooting and current profiling.
Automotive Electronics: Testing in-vehicle systems and components in EVs.
IoT & Wearables: Power optimization and sleep mode analysis.
Wireless Devices: Testing RF amplifiers, transmitters, and receivers.
