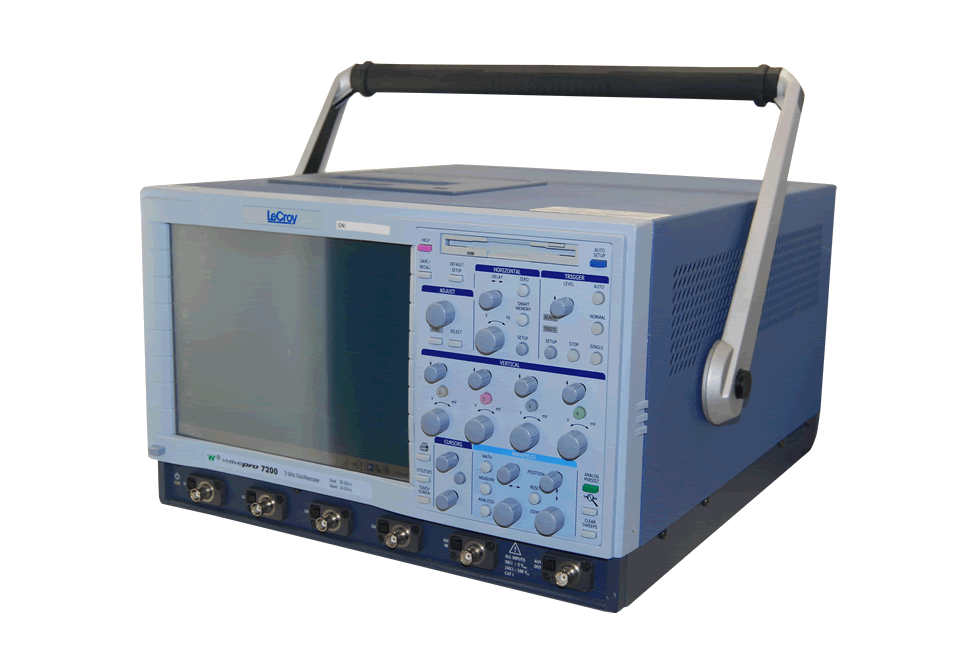

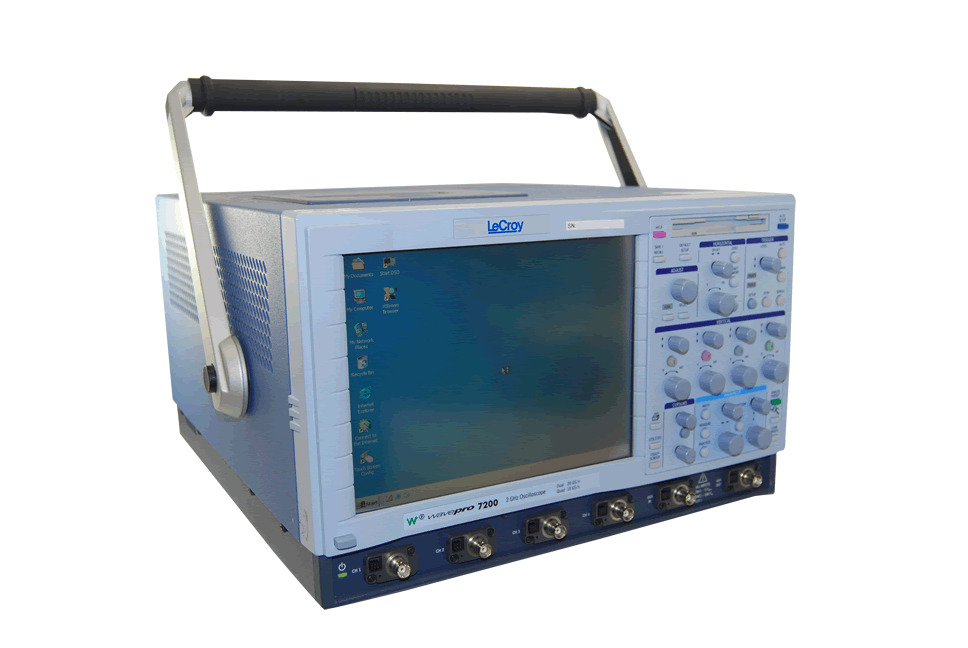

The LeCroy WavePro 7200 Oscilloscope can conduct next-generation waveform measurements and analysis with bandwidths of 1 GHz, 2 GHz. The WavePro 7200 oscilloscope offers high-speed integrated 1 MΩ and 50 Ω inputs. The LeCroy WavePro 7200 comes with 1 M/channel memory and is standard at 1 GHz. The device has a user-friendly user interface and is equipped with X-StreamTM Technology. The Lecroy WavePro 7200 allows technicians the complete efficient oversampling at 10 GS/s on all channels. The oscilloscope has an acquisition memory of up to 48 million points and efficient jitter noise floor performance that allows quick sampling. The WavePro 7200 allows engineers the ability to comprehend the signals used in a design. The WavePro 7200 offers a variety of features, such as simply clicking the zoom button to view the waveform's increased detail and view the evolution of a measurement over time in graphical perspectives such as histograms, tracks, and trends.
Features
- 1, 2, and 3 GHz bandwidths
- 1 MO and 50 O input paths
- X- Stream powered technology
- Touch screen and front panel user interface
- 10.4" SVGA display
- Zoom and multi-zoom display
- Automated measurements with histicons
- Connectivity to USB,GPIB and 802.3xx
- Customizable with XDEV developer's kit option
- Expandable waveshape analysis with XMAP Option
- Jitter analysis
Specifications
Analog bandwidth |
2 GHz |
Rise time |
225 ps |
Input channels |
4 |
Bandwidth limiters |
25 MHz; 200 MHz |
Input impedance |
50 Ω; 1 MΩ//11pF typical (using PP005A probe) |
Input coupling |
1 Ω: AC, DC, GND; 50 Ω: DC |
Maximum input voltage |
50 Ω: 5 Vrms, 1 MΩ: 100 Vmax (peak AC: = 5 KHz + DC) |
Channel-channel isolation |
250:1 at same V/div setting, 40:1 at 3 GHz |
Vertical resolution |
8 bits; up to 11 bits with enhanced resolution (ERES) |
Sensitivity |
50 Ω: 2 mV – 1 V/div fully variable; 1 MΩ: 2 mV – 2 V/div fully variable |
DC gain accuracy |
±1.5% of full scale; ±1% (typical) |
Offset accuracy |
±(1.5% of full scale + 0.5% of offset value + 2 mV) |
Weight |
18 kg (39 lb.) |
Dimensions (H x W x L) |
264 mm x 397 mm x 491 mm (10 x 16 x 19 in) |
