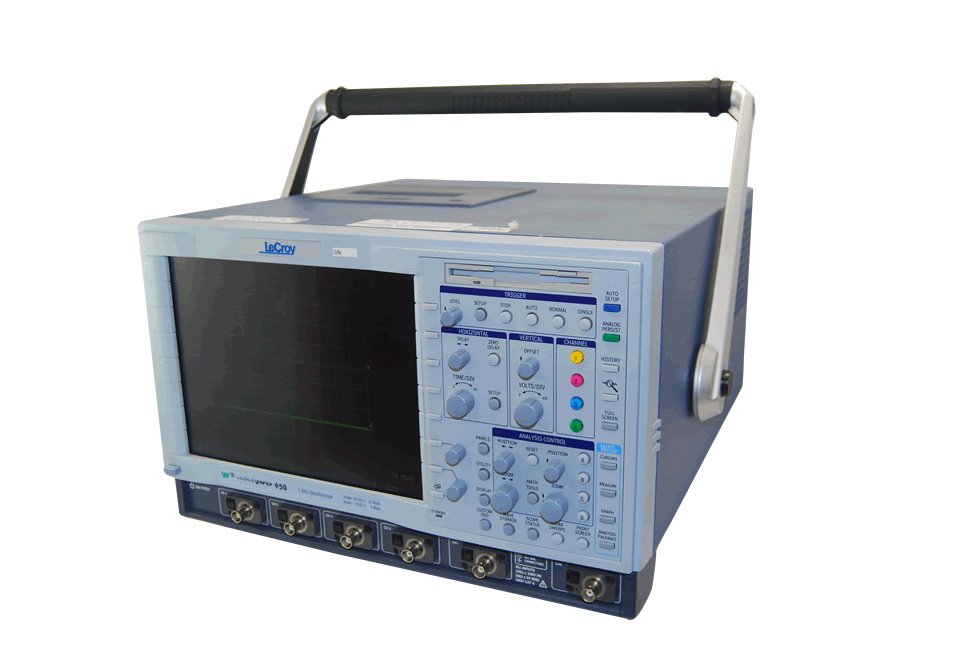

The LeCroy WAVEPRO 950 Oscilloscope 1 GHz, 4 GS/s is a high-performance active differential probe. High bandwidth, excellent common mode rejection ratio (CMRR) and low-noise floor make the WAVEPRO ideal for applications such as disk drive design and failure analysis as well as wireless and data communication design.
Features
- 1 GHz Bandwidth
- x10 Gain to ÷10 Attenuation Range
- 10,000: 1 DC CMRR
- 2 pF/Side Input C
- 200 µV/div - 10 V/div
- Input ESD Protection
- Autobalance Feature
Specifications
| Bandwidth | 1 GHz |
| Gain Range | x10, x1, ÷10 (÷100 w/plug on ÷10 attenuator) |
| DC Accuracy | 1% in 1x without external attenuator |
| Attenuator Range Accuracy | 0.2% |
| Gain Range Accuracy | 1% |
| Input Resistance | 1 M ohms (each input to ground), 2 M ohms Differential (between inputs) |
| Input Capacitance | 2 pF (each input to ground) (÷10) |
| 5 pF (each input to ground) (÷1) |
| 1.2 pF Differential (between inputs) (÷10) |
| 2.7 pF Differential (between inputs) (÷1) |
| Input Voltage Differential Max | ±40 V (÷100) |
| ±4 V (÷10) |
| ±400 mV (x1) |
| ±40 mV (x10) |
| Common Mode Max | ±42.4 V AC peak or 50 V DC (÷10), ±5 V (÷1) |
| Max. Non-Destruct Voltage | ±200 VDC continuous |
| ESD Protection | >15 kV |
| CMRR | 10,000:1 (DC) |
