Keysight DAQ973A Data Acquisition System

Larger

SKU: KEYS-DAQ973A

Categories

Data Loggers

Documents

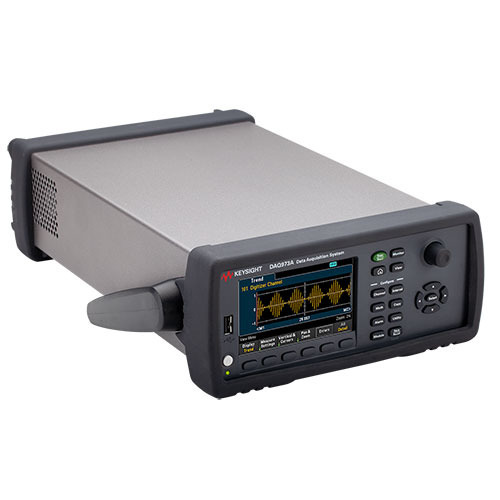

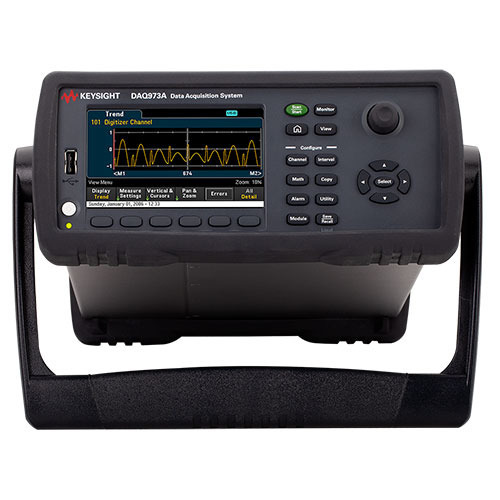

The Keysight DAQ973A Data Acquisition System makes strides in data collection with help from a 3-slot mainframe and 9 switch and control plug-in modules. Keysight DAQ973A systems also make improvements in measurement with 6 ½ digit internal DMM. The data acquisition system can scan 450 channels per second and maintain a dcV accuracy of .004%.

The DAQ973A also offers up to 120 channels in every system and a remarkable 24-bit sample rate at 800 kSa/s. With such a wide measurement range, Keysight's device is unlikely to miss any pivotal data. The data acquisition system can measure low current ranges at 1 µA DC and 100 µA AC and those at a higher resistance of 1000 MΩ.

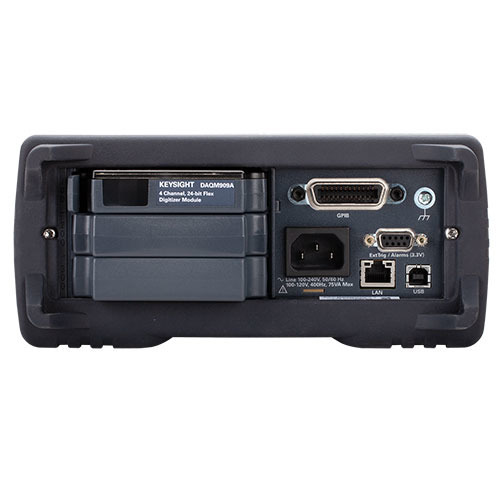

The Keysight DAQ973A is available to include both the 20-channel Multiplexer (2/4 wire) module and the 4-channel Simultaneous Sampling module.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Types of measurements	Temperature, voltage, current, resistance, frequency, diode and capacitance, direct strain and bridge strain
Digital Input/Output	Up to 48-bits
Analog output	-10 V to +10 V, 20 mA
Multiplexing	Maximum 120 (1-wire), 60 (2-wore) channels
Matrix switching	Maximum 96 cross points
General purpose	Maximum 60 switches
RF multiplexing	Maximum 24 channels, 2 GHz
Simultaneous sampling	Maximum 12 channels, up to 800 kSa/s, 24-bit resolution
Interface	Graphic web, USB front/rear, LAN/LXI, GPIB
