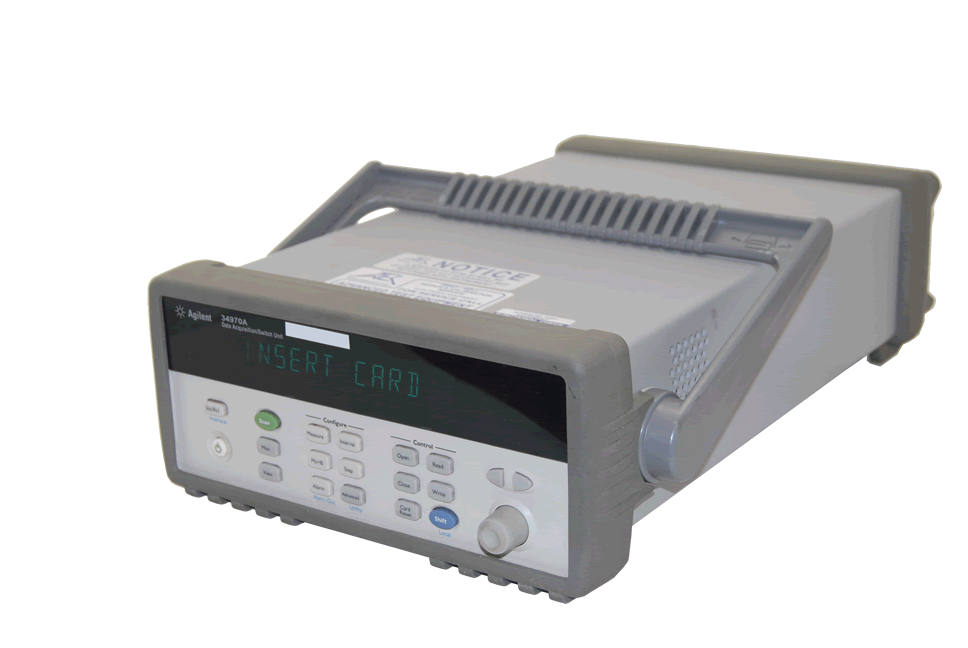

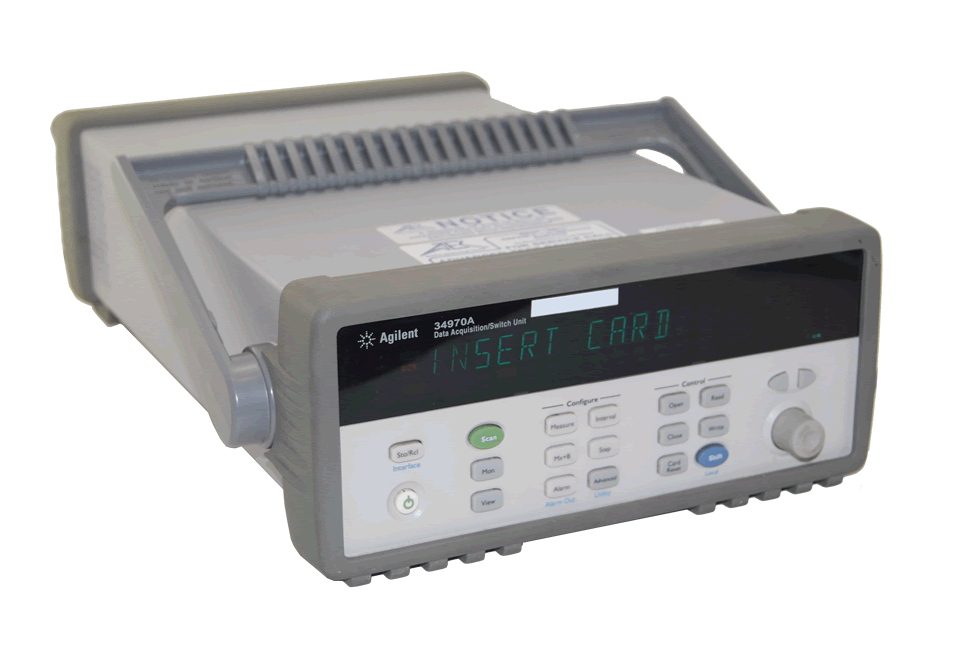

Keysight 34970A Data Acquisition & Switching Unit

Rent 34970A Data Acquisition & Switching Unit
Enlarge Image
Rent 34970A Data Acquisition & Switching Unit Rent 34970A Data Acquisition & Switching Unit Rent 34970A Data Acquisition & Switching Unit
Request Quote Print Page
Datasheet Accessory Kit

Features:


  • 3-slot data acquisition and switching mainframe
  • 6½ digit (22 bit) internal DMM
  • 11 built-in measurement functions
  • 8 switch and control plug-in modules
  • BenchLink data logger software included
  • DC Voltage Range: 100.0000mV; 1.000000V; 10.00000V; 100.0000V; 300.000V
  • True RMS AC Voltage: 100.0000mV to 100.0000V; 300.0000V
  • Resistance: 100.0000 ohms; 1.000000 k ohms; 10.00000 k ohms; 100.0000 k ohms; 1.000000 M ohms; 10.00000 M ohms; 100.0000 M ohms
  • Frequency and Period: 3 Hz to 300 kHz
  • DC Current (34901A only): 10.00000 mA; 100.0000 mA; 1.000000A
  • True RMS AC Current (34901A only): 10.00000 mA and 1.00000A; 100.0000 mA
  • Temperature Thermocouple Type: B, E, J, K, N, R, S, T
  • RTD
  • Thermistor
  • System Speeds - INTO Memory
    Single Channel dcV: 600 Channels



Specifications:




For more channels and options, see the 34980A
