Ophir 5115E Linear Power RF Amplifier 10 kHz - 225 MHz

Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery
Rent Ophir 5115E Linear Power RF Amplifier 10 kHz - 225 MHz
Enlarge Image

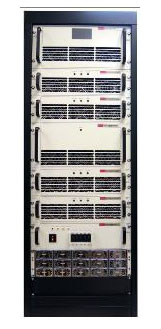

Ophir 5115E
Request Quote Print Page
5115E Datasheet
The 5115E is a 2500 Watt broadband amplifier that covers the 0.01-225 MHz frequency range. This amplifier utilizes Class A linear power devices that provide an excellent 3rd order intercept point, high gain, and a wide dynamic range.

Due to robust engineering and employment of the most advanced devices and components, this amplifier achieves high efficiency operation with proven reliability, Like all OPHIR RF amplifiers, the 5115E comes with an extended multiyear warranty backed by Ophir RF’s commitment to total customer satisfaction.
Ophir 5115E Specs
Frequency range: 0.01 – 225 MHz
Saturated output power: 2500 Watts;
10 KHz-100 MHz 2500 -1900 Watts;
100 MHz-225MHz
Power Output @ 1 dB comp: 2000 Watts;
10KHz-100MHz 2000-1200 Watts;
100 MHz- 225MHz
Small signal gain: +64 dB min
Gain flatness: +/- 3.0 dB Maximum
+/- 1.0 dB Maximum w/ ALC
Input VSWR: 2:1 max
Harmonics: -20 dBc maximum @ 1800 Watts
Spurious signals: -60 dBc typical @ 1800 Watts
Input/output impedance: 50 Ohms nominal
AC input power: 10,000 Watts maximum
AC input: 187-264 VAC, 3Ø “Delta” (4-wire)
Nominal RF input: 0 dBm
RF input overdrive: +10 dBm maximum
RF input signal format: CW/AM/FM/PM
Class of operation: A
