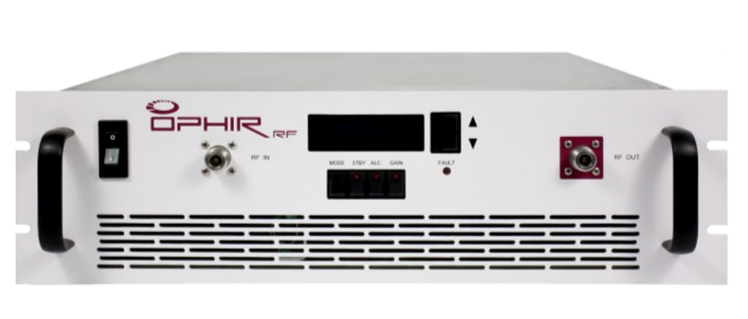

Ophir 5293RE Solid State RF Amplifier

The Ophir 5293RE Solid State RF Amplifier is a 50 watts, broadband high power, and linear power RF amplifier. The unit has a frequency range of 0.7 to 6.0 GHz while using Class A linear power devices. The Ophir 5293RE Amplifier features an excellent 3rd-order intercept point and a high gain of +48 dB (minimum). With 100 to 240 VAC single-phase AC input and a wide dynamic range, the 5293RE model achieves high-efficiency operation with proven reliability. With an Integrated Automatic Leveling Control, the device allows technicians to maintain steady output levels with variances in temperature or input RF level.

Advanced Amplifiers AA-2640G-40 Solid State Amplifier

26.5 - 40.0 GHz
40 W
46 dB min

Advanced Amplifiers AA-28G-400 Solid State CW/Pulse Amplifier

2.0 - 8.0 GHz
400 W
56 dB min

Advanced Amplifiers AA-2640G-200 Solid State Power Amplifier

26.5 - 40.0 GHz
200 W
53 dB min

Advanced Amplifiers AA-1826G-200 Solid-State Power Amplifier

18.0 - 26.5 GHz
200 W
53 dB min

Advanced Amplifiers AA-700M6G-300 Solid State Amplifier

0.7 - 6.0 GHz
300 W
53 dB min

Advanced Amplifiers AA-618G-100 Solid State Amplifier

6.0 - 18.0 GHz
100 W
50 dB min

Advanced Amplifiers AA-618G-40 Solid State Amplifier

6.0 - 18.0 GHz
40 W
46 dB min

IFI T251-500A TWT Amplifier | 0.8 GHz – 2.5 GHz, 500 W

0.8 - 2.5 GHz
500 W
57 dB min

Advanced Amplifiers AA-700M6G-50 Solid State Amplifier

0.7 - 6.0 GHz
50 W
47 dB min

Advanced Amplifiers AA-1826G-40 Solid State Amplifier

18.0 - 26.5 GHz
40 W
46 dB min

Amplifier Research 1000A400 Broadband RF Amplifier | 10 kHz - 400 MHz, 1000 W

10 kHz - 400 MHz
1000 W
60 dB

Empower 2198 Solid State Amplifier 20 MHz - 6 GHz, 100 W

20 MHz - 6 GHz
100 W (CW)
49 dB

Empower 2170 Solid State Broadband High Power Amplifier 1 GHz - 3 GHz, 1000 W

1.0 - 3.0 GHz
1000 W
63 dB

Advanced Amplifiers AA-13G-500/1KWP Solid State RF Amplifier

Frequency Range: 0.8 - 3.2GHz
Output: 1kW, 60dBm
Duty Cycle: 10%, Pulse Width: up to 560μs

Amplifier Research 1000W1000G Solid-State Amplifier | 80 MHz - 1000 MHz, 1000 W

80 MHz - 1000 MHz
1000 watts CW
60 dB minimum

Amplifier Research 40S6G18-L Solid State CW Amplifier, 6 GHz - 18 GHz, 40 Watts

6.0 -18.0 GHz
40 W
46 dB min

Advanced Amplifiers AA-4050G-4 Solid State Amplifier

40.0 - 50.0 GHz
4 W
36 dB min

IFI S31-500-900P | Dual Mode CW/Pulse Amplifier

0.8 - 3.1 GHz
900 W
60 dB

IFI S31-500 Solid State RF Power Amplifier 800 MHz - 3 GHz, 500 Watts

800 MHz - 3 GHz
500 W
57 dB min

Advanced Amplifiers AA-118G-50 Solid-State High Power Amplifier

1.0 - 18.0 GHz
50 W
47 dB min

IFI SMC1500 Solid State Amplifier 80 - 1000MHz, 1500W

80 - 1000 MHz
1500 W
62 dB (min)

IFI SMIV-1000 Amplifier for HIRF Testing, 400 MHz - 1000 MHz, 1000W

400 MHz - 1000 MHz
1000 W
50Ω

Advanced Amplifiers AA-500M6G-150 Solid-State RF Amplifier

0.5 - 6 GHz
150 W
53 dB min

AE Techron 7796 DC Power Amplifier

DC – 30kHz (100kHz at reduced power)
22,000W peak (40mSec, 0.5Ω load)
Slew Rate: 41V/µs

Ophir 5089 Linear Power RF Amplifier

Solid-state broadband high-power RF amplifier
1000 Watt broadband amplifier
Frequency range of 10 kHz - 200 MHz

Frequency range	0.7 - 6.0 GHz
Saturated output power	50 W
Small signal gain	+48 dB min.
Harmonics	-20 dBc min. at 30 W
AC input power	1000 W max.
AC input	100 - 240 VAC, single phase
RF input	0 dBm max.
Dimensions	19 x 5.25 x 21 in (48 x 13.335 x 53.34 cm)
Weight	55 lb. (25 kg)
Operating temperature	0 to +50ºC
