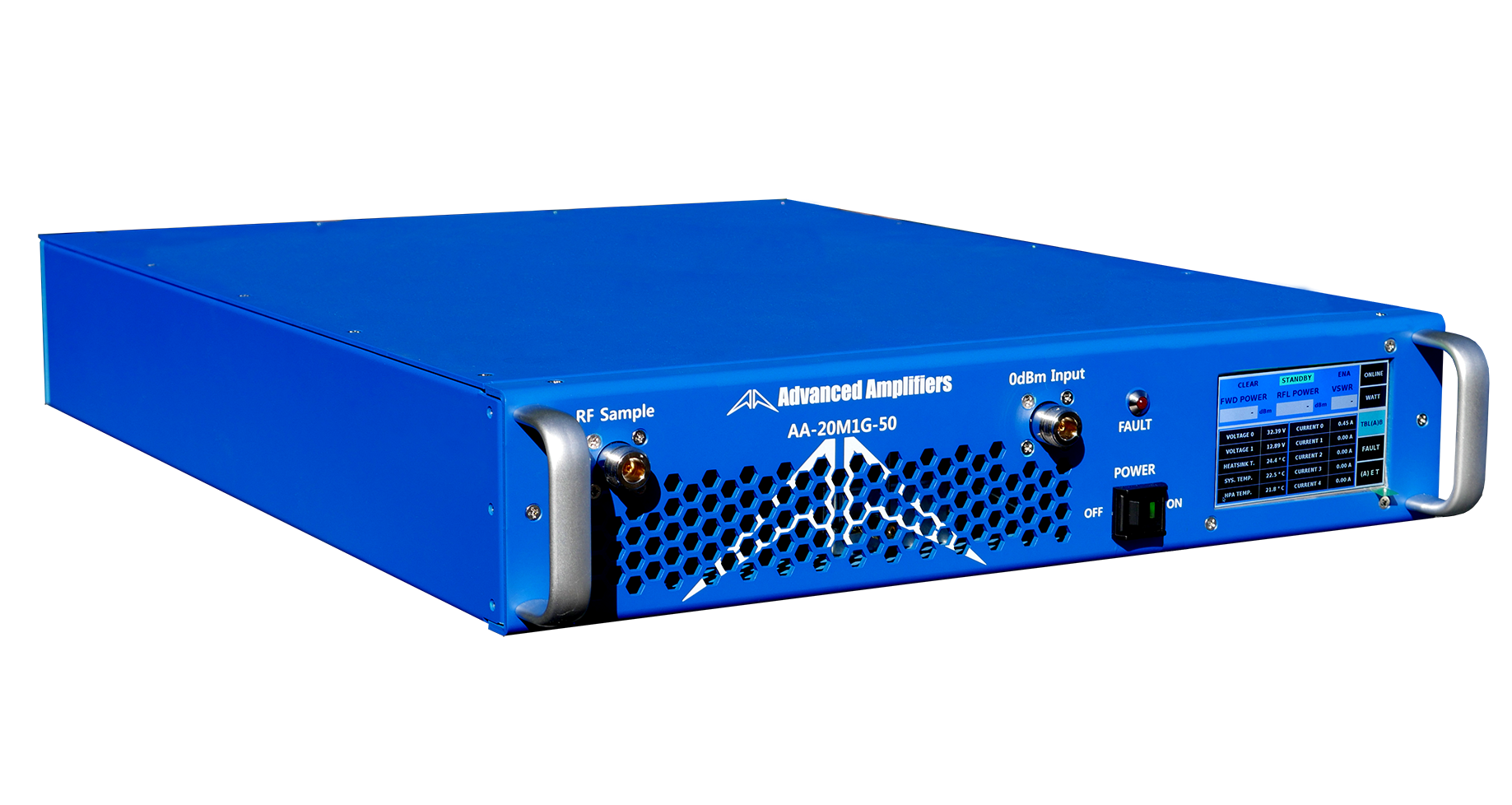

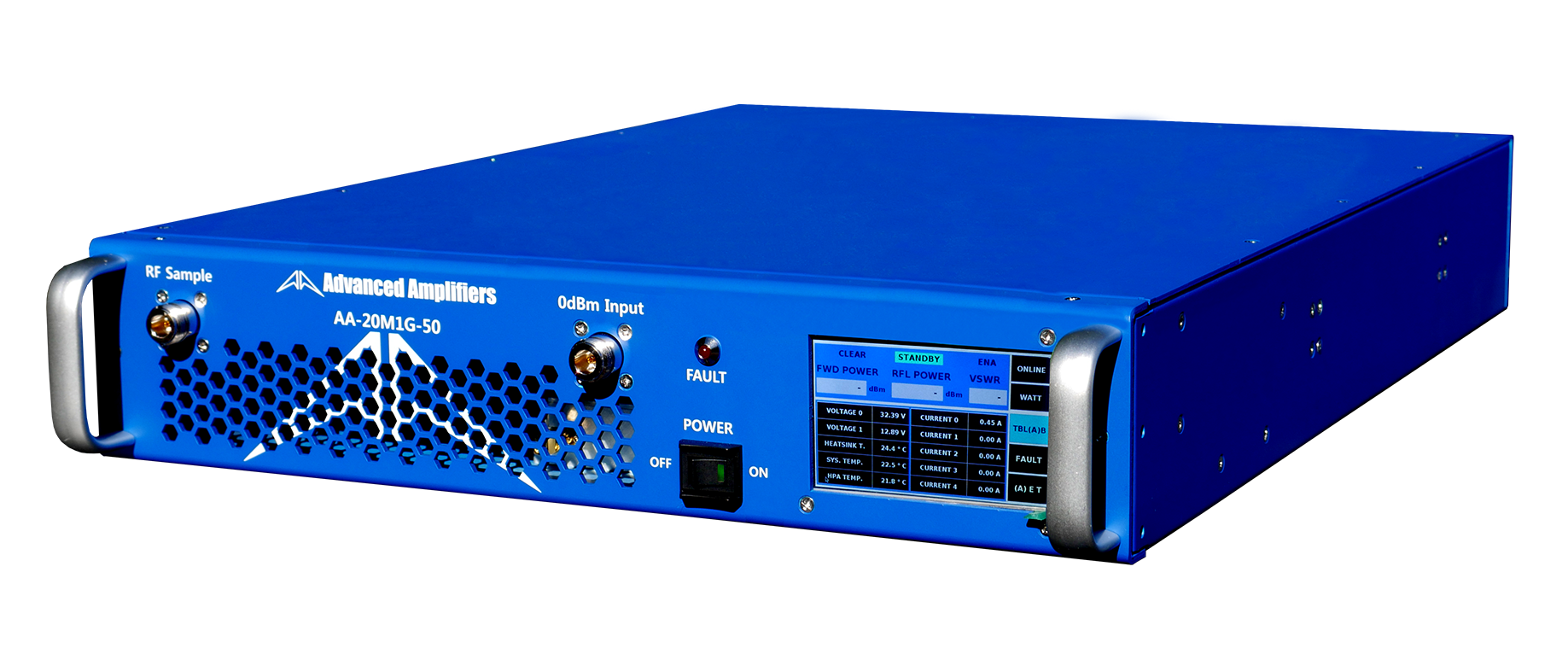

Advanced Amplifiers AA-20M1G-50 Solid State Amplifier

Name: Advanced Amplifiers AA-20M1G-50 Solid State Amplifier Rental
Brand: Advanced Amplifiers
SKU: AA-20M1G-50-rent
Price: 1459.00 USD
Availability: InStock

20.0MHz - 1.0GHz / 50W

Advanced Amplifiers AA-20M1G-50 Solid-State Amplifiers operate within a frequency range of 20 MHz - 1 GHz and can generate 50 W of power. They are designed to offer high linearity, simple front panel operation, and quick heat dissipation. This model has a minimum power gain of 47 dB and operates with a 100 - 240 VAC 1-phase (350 W) input.

ATEC offers AA amplifiers at affordable rental rates.

Product Info Available Add-Ons Related Products

Parameter	Specification	Notes
Operating Frequency Range	20 - 1000 MHz
Power Output	50 Watt Min	Saturated CW
Power Gain	47 dB Min
Power Gain Flatness	3.0 dB p-p Max
Input Return Loss	10 dB Min	Relative to 50 Ohm
2-Tone Intermodulation (IMD)	>30 dBc Typ	37dBm/Tone, Δ = 1MHz
Harmonics 2nd / 3rd	>25dBc / 15 dBc Typ	At Rated Pout
Non Harmonics Spurious	60 dBc Min	Non Harmonics
Operating Voltage	100 - 240 VAC
Operating Ambient Temperature	0 to +50 °C
Storage Temperature	-40 to +85 °C
Relative Humidity	5 to 95 %	Non Condensation
Dimensions W x H x D	430 x 88 x 562 mm	2U
Weight	10 kg.

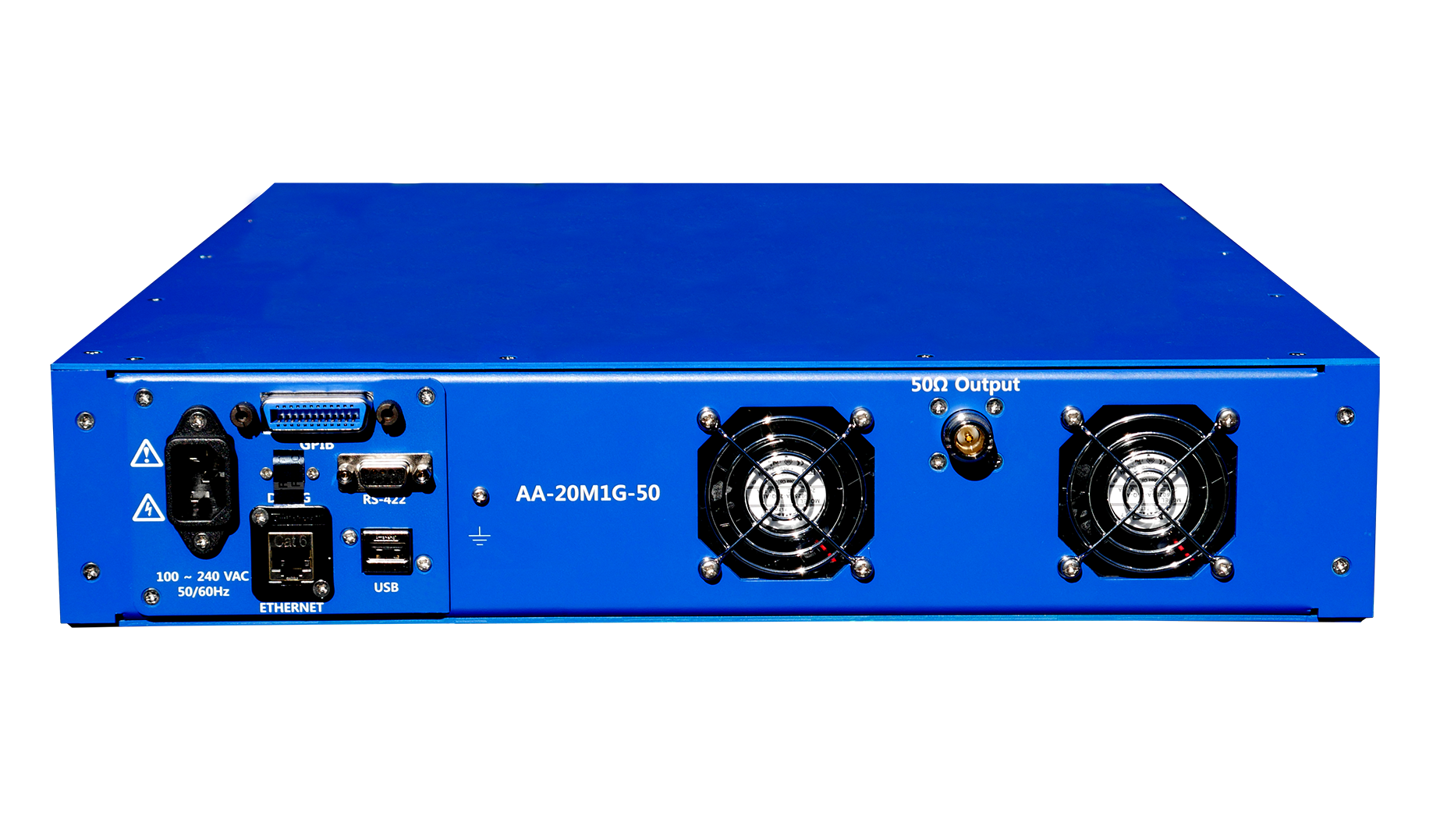

RF Connectors In/Out	Type-N Female	Front Panel Standard
AC Power / Interface Connector	IEC 60320-C14 / 9-Pin D-Sub
Cooling	Built in Fan Cooling
OPTIONAL: Digital Monitor & Control FWD, REV, VSWR, GAIN, ALC, V & I, TEMP	Ethernet RJ-45 TCP/IP, RS422/485, Optional GPIB Interface	Remote Bluetooth application
