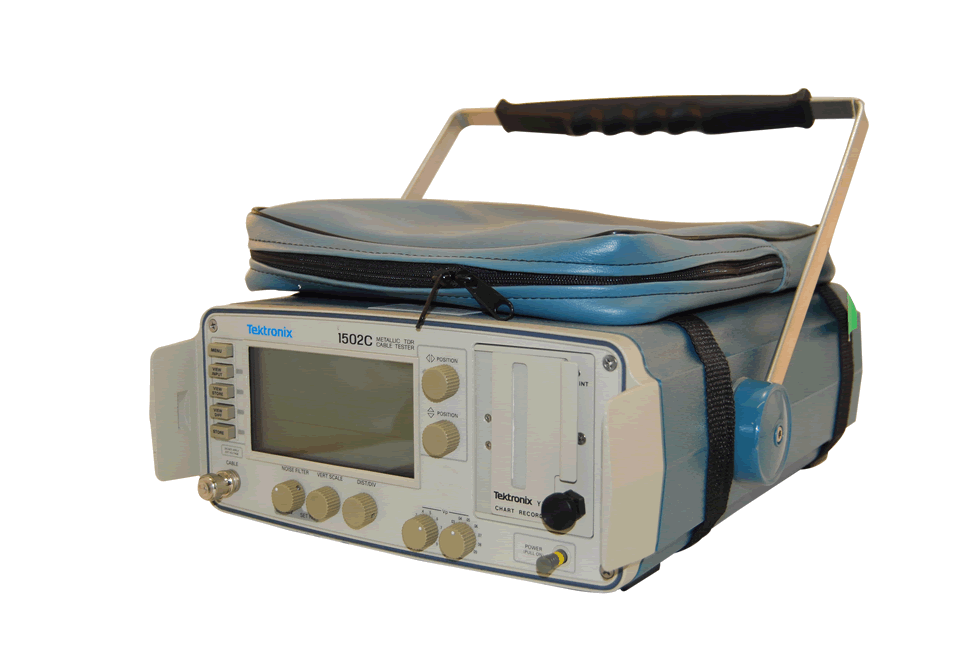

Tektronix 1502C Metallic Cable Tester TDR

Rent Tektronix 1502C Metallic Cable Tester TDR
Enlarge Image
Rent Tektronix 1502C Metallic Cable Tester TDR Rent Tektronix 1502C Metallic Cable Tester TDR Rent Tektronix 1502C Metallic Cable Tester TDR
Tektronix Test Equipment 1502C
Request Quote Print Page
Datasheet Accessory Kit

The Tektronix 1502C Metallic Cable Tester's ultra-high resolution generates a 200 pico-second rise time step pulse and output impedance of 50W. The fast rise time permits identification of multiple faults as close together as 0.6 inches.


Features:

  • Cable impendance: 50 ohm
  • System rise time: 200 ps (1.15 in / 2.92 cm)
  • Maximum range: 2000 ft / 500 m
  • Distance per division: 0.1 to 200 ft/div / 0.025 to 50 m/div
  • Direct Distance Readout Resolution: 0.12 in / 0.30 cm
  • Intermittent fault monitor mode
  • High-resolution LCD display with zoom
  • Menu-driven setup
  • Help mode
  • Rugged Portability
  • Calibrated vertical scale: 0.5 to 500 mp/div
  • Optional internal printer
  • Noise filter
  • Option 04 = Recorder; YT1 Strip Chart
