| Model |

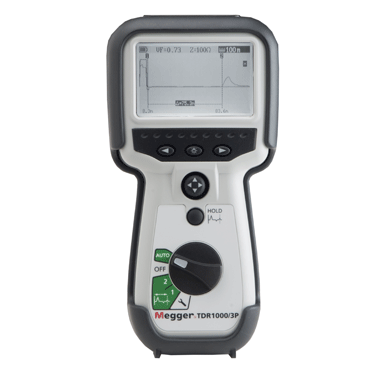

TDR1000/3P |
| Velocity Factor |
Variable from 0.2 to 0.99 in steps of 0.01 |
| Operating Temperature Range |
-15°C to +50°C (+5°F to +122°F) |
| Storage Temperature Range |
-20°C to 70°C (-4°F to +158°F) |
| Resolution |
1% of range |
| Output Impedance Options |
25 Ω, 50 Ω, 75 Ω, and 100 Ω |
| Battery Life |
Up to 14 hours (Typical) |
| Display |
256 x 128 pixel Graphics LCD |
| Dimensions |
230 x 115 x 48 mm ( 9.0 x 4.5 x 2.0 in) |
| Weight |
0.6 kg (1.32 lb.) |
