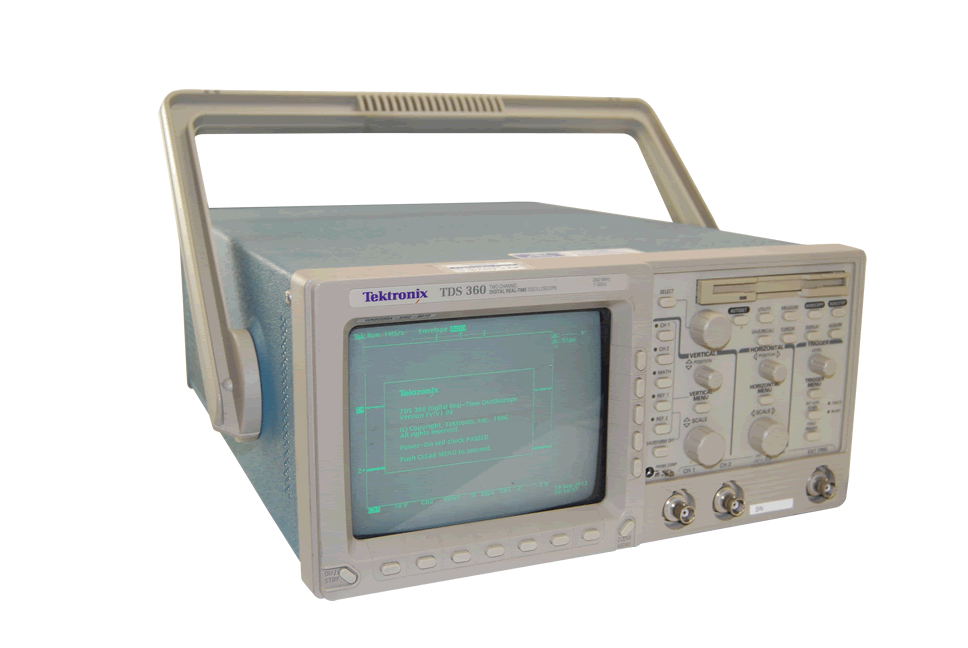

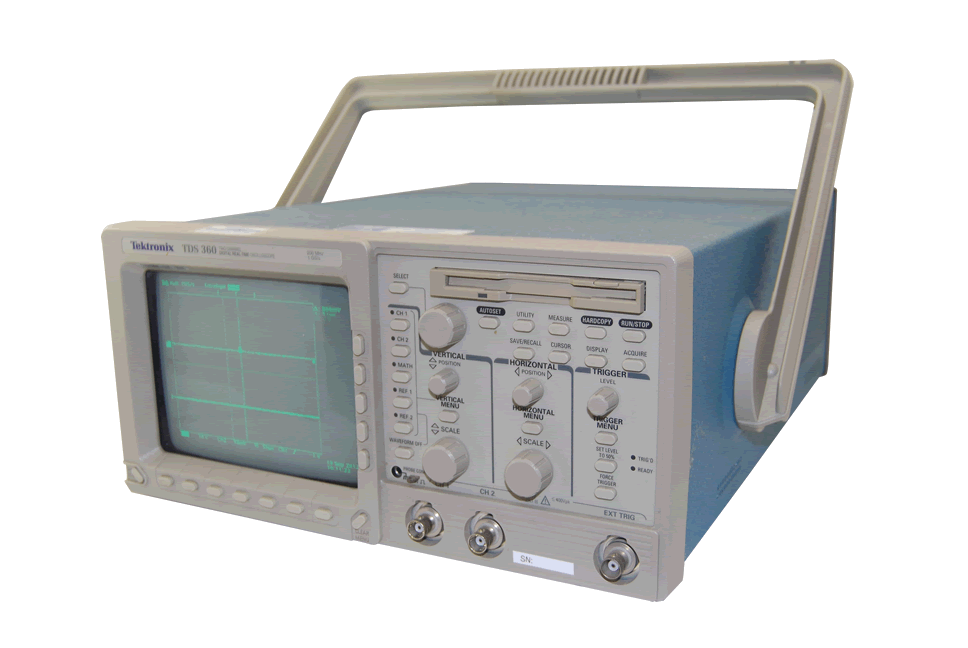

Tektronix TDS360 Digitizing Oscilloscope 200 MHz , 1 GS/s

Used Sales Price: $1000
Rent Tektronix TDS360 Digitizing Oscilloscope 200 MHz , 1 GS/s
Enlarge Image
Rent Tektronix TDS360 Digitizing Oscilloscope 200 MHz , 1 GS/s Rent Tektronix TDS360 Digitizing Oscilloscope 200 MHz , 1 GS/s Rent Tektronix TDS360 Digitizing Oscilloscope 200 MHz , 1 GS/s
Tektronix Test Equipment TDS360
Request Quote Print Page
Datasheet
  • Signal Acquisition System
    • Bandwidth: 200 MHz
    • Sample Rate: 1 GS/s on each channel
    • Channels: two identical channels, each with invert function
    • Sensitivity: 2 mV to 10 V/div (with calibrated fine adjust)
    • Vertical Resolution: 8-Bits (256 levels over 10.24 vertical divisions)
  • Time Base System (Main and Delayed)
    • Time/Division Range: 2.5 ns to 5 s/div
    • Record Length: 1000 sample points per channel
  • Triggering System (Main Only)
    • Triggering Types: Edge, Vide
  • Option 14 (I/O Interface): Computer Interface and Hardcopy Capability
    • GPIB (IEEE-488.2) Programmability
    • RS-232 Interface Programmability
    • Video Output
    • Hardcopy Port - Centronics-type parallel or RS-232
    • Graphics Interface File Formats - Interleaf (.img), TIFF, PCX (PC Paintbrush), BMP (Microsoft Windows), and Encapsulated Postscript (EPS)
    • Printer Formats - ThinkJet, DeskJet, LaserJet, Epson (9 & 24 Pin), Seiko DPU 411/II, DPU 412.

Includes: Two P6114B X10 Probes
