Tektronix TDS5054 500 MHz, 5 GSa/s Oscilloscope
Enlarge Image

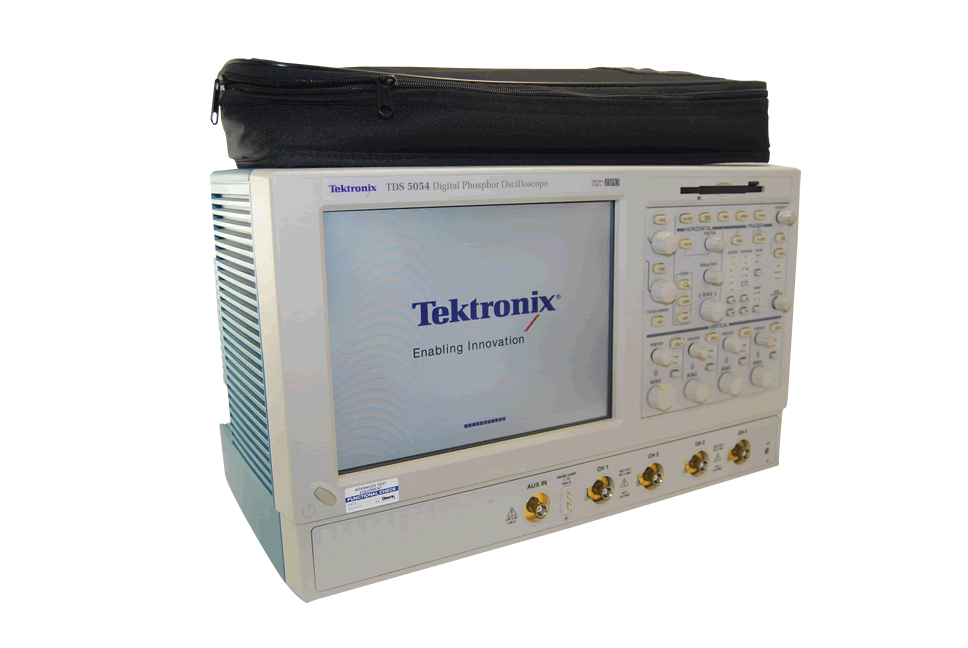

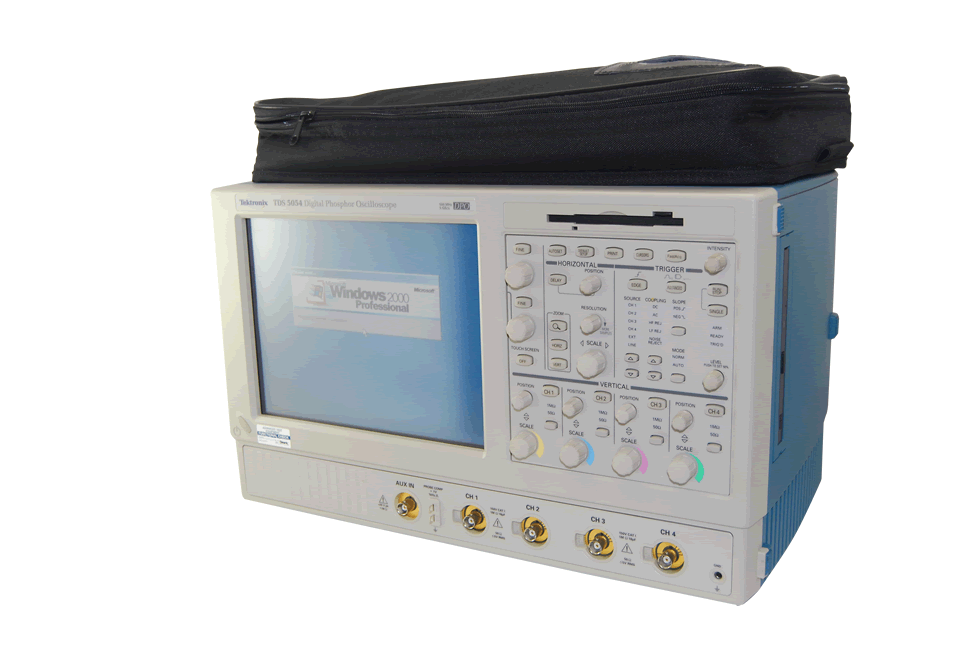

Tektronix TDS5054 500 MHz, 5 GSa/s Oscilloscope Tektronix TDS5054 500 MHz, 5 GSa/s Oscilloscope
Tektronix Test Equipment TDS5054
Request Quote Print Page
TDS5054 Datasheet
The Tektronix TDS5054 has been replaced by the Tektronix TDS5054B.

View the TDS5054B


The Tektronix TDS5054 digital phosphor oscilloscope delivers up to 500 MHz Bandwidth, 5 GS/s real-time sample rate, 2 MB record length and 100,000 wfms/s maximum waveform capture rate. This performance, along with a suite of advanced triggers, intuitive user interface, and an open Windows platform, all in a compact bench-top package, provides exceptional value.

Digital phosphor oscilloscopes provide insight into signal behavior by displaying, storing and analyzing complex signals in real-time using three dimensions of signal information: amplitude, time and distribution of amplitude over time. The Tektronix TDS5054 500 MHz, 5GSa/s Oscilloscope delivers fast waveform capture rates, enabled by Tektronix proprietary DPX™ acquisition technology, saving minutes, hours or even days by quickly revealing the nature of faults so sophisticated trigger modes can be applied to isolate them.

Tektronix Test Equipment TDS5054 Features
  • Intuitive User Interface for Easy Operation
  • Small Footprint
  • 10.4 in. (264 mm) Bright Display
  • Suite of Advanced Triggers
  • Interoperability with Tektronix Logic Analyzers
Tektronix Test Equipment TDS5054 Specs
TDS5054 Vertical System
Input Channels 4
Analog Bandwidth (-3 dB) 5 mV/div - 1 V/div 500 MHz
Calculated Rise Time 5 mV/div (typical) 800 ps
Hardware Bandwidth Limits 150 MHz or 20 MHz
Input Coupling AC, DC, GND
Input Impedance, 1 MΩ ±1%
Input Impedance, 50 MΩ ±1%
Input Sensitivity, 1 MΩ 1 mV/div to 10 V/div
Input Sensitivity, 50Ω 1 mV/div to 1 V/div
Vertical Resolution 8-bits (>11-bits w/ averaging)
Max Input Voltage, 1 MΩ ±150 V CAT I derate at 20 dB/decade to 9 VRMS above 200 kHz
Max Input Voltage, 50 Ω 5 VRMS with peaks <±30 V
DC Gain Accuracy 1.5% with offset set to 0 V
Offset Range, 1 MΩ 1 mV/div - 99.5 mV/div ±1 V
100 mV/div - 1 V/div ±10 V
1.01 V/div - 10 V/div ±100 V
Offset Range, 50 Ω 1 mV/div - 99.5 mV/div ±1 V
100 mV/div -1 V/div ±10 V
Channel-to-channel Isolation Any Two Channels at Equal Vertical Scale ≥100:1 at ≤100 MHz and ≥30:1 at >100 MHz up to the rated bandwidth
TDS5054 Timebase System
Timebase Range 200 ps/div to 40 s/div
Timebase Delay Time Range 16 ns to 250 s
Channel-to-channel Deskew Range ±75 ns
Delta Time Measurement Accuracy ±(0.30 sample interval) + (15 ppm * reading)
Trigger Jitter (RMS) 8 psRMS (typical)
Long Term Sample Rate and Delay Time Accuracy ±15 ppm over ≥1 ms interval
TDS5054 Acquisition System
Real-time Sample Rate 1.25 GS/s
Equivalent Time Sample Rate (max) 250 GS/s
Maximum Record Length per Channel with Standard Memory 100 k
With Opt. 1M 500 k
With Opt. 2M 2 M
TDS5054 Acquisition Modes
FastAcq Acquisition FastAcq optimizes the instrument for analysis of dynamic signals and capture of infrequent events
Maximum FastAcq Waveform Capture Rate 100,000 wfms/s
Sample Acquire sampled values
Peak Detect Captures narrow glitches at all real-time sampling rates
Minimum Peak Detect Pulse Width <1 ns
Averaging From 2 to 10,000 waveforms included in average
Envelope From 2 to 2 x 109 waveforms included in min-max envelope
Hi-Res Real-time boxcar averaging reduces random noise and increases resolution
FastFrame™ Acquisition Acquisition memory divided into segments; maximum trigger rate >225,000 waveforms per second
TDS5054 Trigger System
Sensitivity Internal DC Coupled: 0.35 div DC to 50 MHz increasing to 1 div at rated bandwidth
External (auxiliary input): 400 mV from DC to 50 MHz increasing to 750 mV at 100 MHz
Main Trigger Modes: Auto, Normal, and Single
Trigger Sequences: Main, Delayed by time, Delayed by events. All sequences can include separate horizontal delay after the trigger event to position the acquisition window in time
Trigger Level Range Internal: ±10 divisions from center of screen
External (auxiliary in): ±8 V
Line: Fixed at 0 V
Trigger Coupling: DC, AC (attenuate <60 Hz), HF reject (attenuate >30 kHz)
LF reject (attenuate <80 kHz) Noise reject (reduce sensitivity)
Trigger Hold-off Range: 250 ns minimum to 12 s maximum
