Advanced Amplifiers AA-16G-300 Solid State Amplifier | 1.0 - 6.0 GHz, 300 W

Categories

Documents

Datasheet

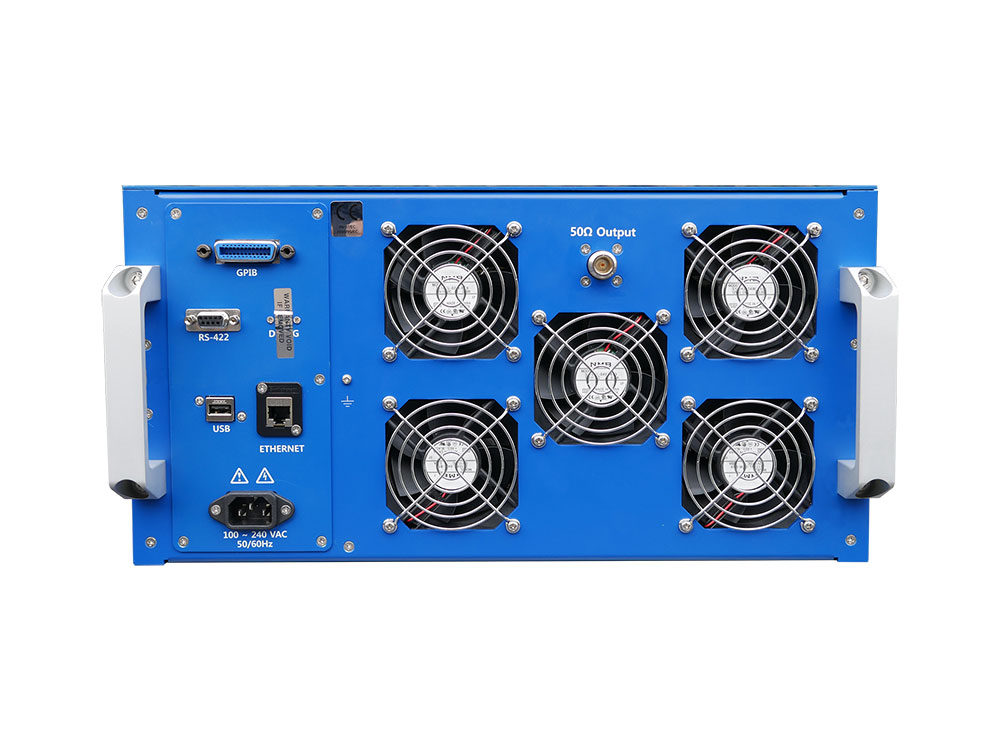

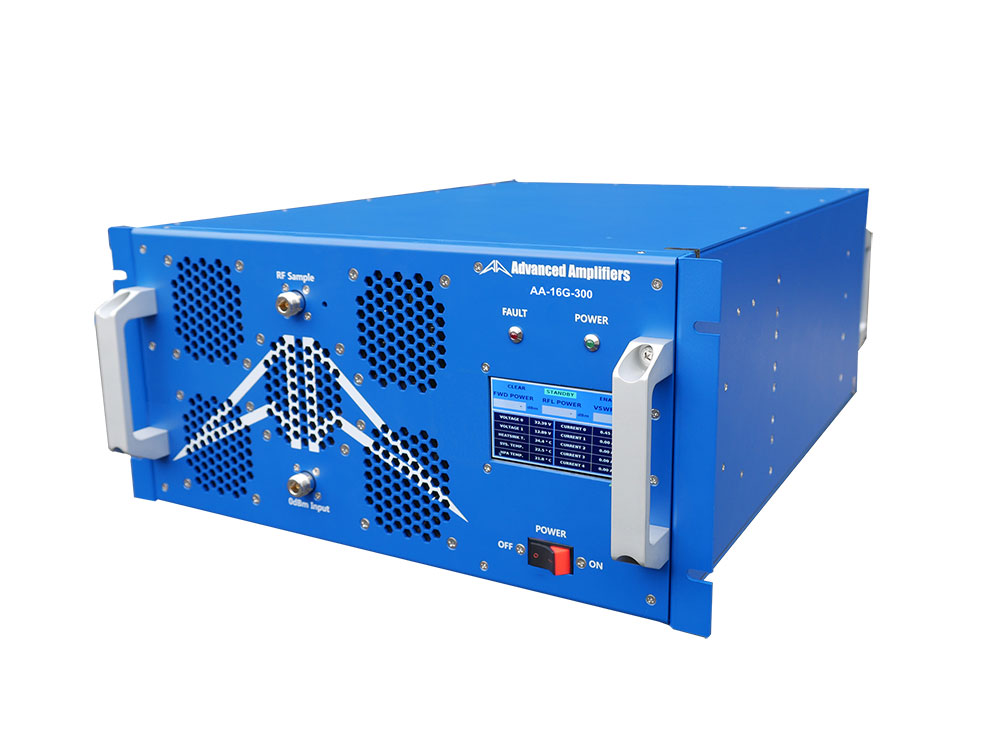

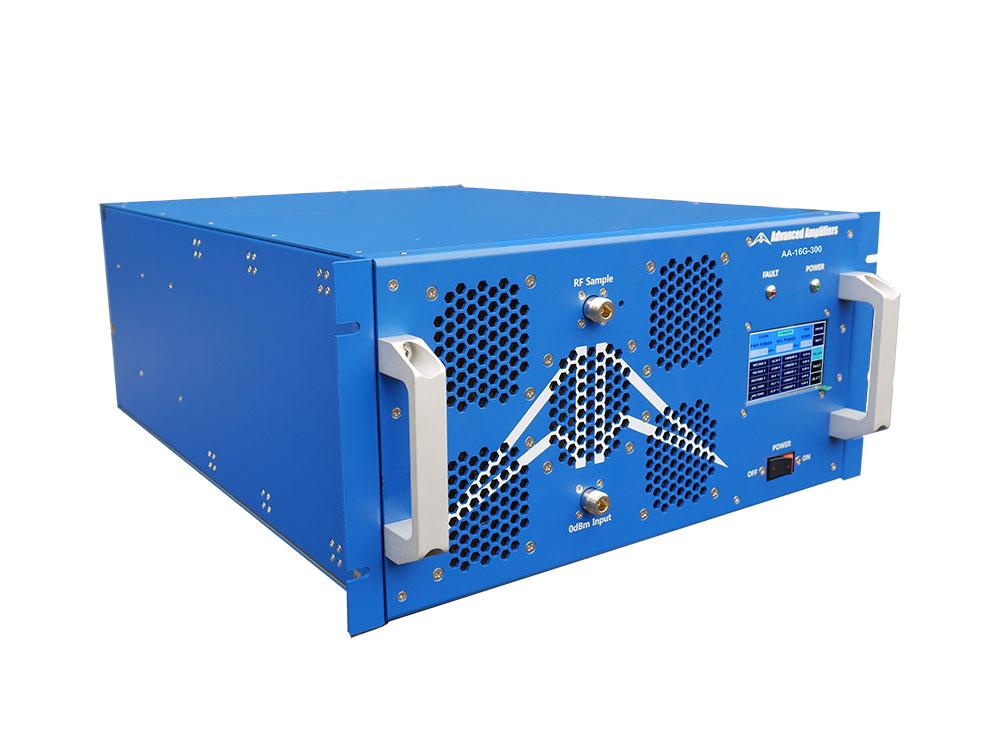

The Advanced Amplifiers AA-16G-300 Solid-State High-Power Amplifier offers an operating frequency range of 1.0 to 6.0 GHz. With a rugged design and built-in protection circuits, the Advanced Amplifiers AA-16G-300 offers durability and reliability. Its revolutionary design offers a unique form factor, high energy efficiency, and simple front panel operation.

This solid-state amplifier includes a Class AB linear GaN design. The Advanced Amplifiers AA-16G-300 is suitable for all single channel modulation standards as well. The front panel is simple to operate with a touchscreen interface or can be controlled via Ethernet (RJ-45 TCP/IP), RS422/485 or GPIB interfaces. This amplifier gives you the performance capabilities needed to complete your project safely and on time.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Parameter	Specification	Notes
Operating Frequency Range	1.0 - 6.0 GHz
Power Output @ Psat	300 Watt Typ
Power Output @ P1dB GCP	200 Watt Min	CW
Power Gain	53 dB Min
Power Gain Flatness	4 dB p-p Max	Constant input power
Gain Variation Over Temperature	±2.0 dB Max
Input / Output Return Loss	10 dB Min	Relative to 50 Ohm
2-Tone Intermodulation (IMD)	-30 dBc Typ	43dBm/Tone, Δ = 1MHz
Harmonics	-20 dBc Typ	At rated output
Non Harmonic Spurious	-60 dBc Max
Operating Voltage	180 - 240 VAC
Power Consumption	2500 Watt Max	At rated output
Max Input Power Protection	+5 dBm	<10 Sec without damage
Load VSWR Protection	10 : 1 Max	< 1 minute at rated Pout
FWD Sample Port Coupling Factor	40 dB Norm	Front panel
