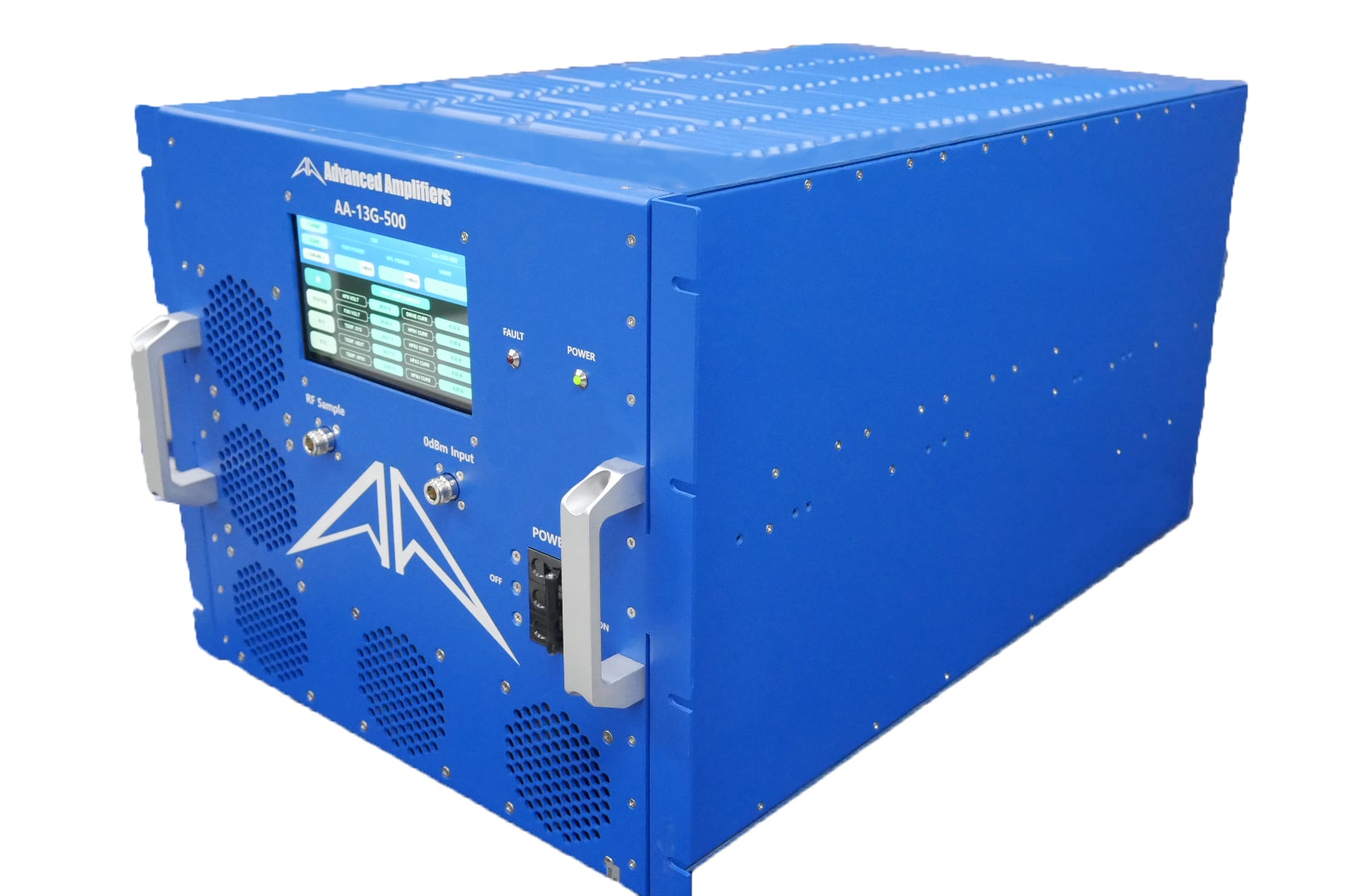

The Advanced Amplifiers AA-13G-500 is a solid state continuous wave, high-linearity class AB power amplifier that operates over a frequency range of 1.0 - 3.0 GHz and generates 500 W of power. Its revolutionary design offers a unique form factor, high energy efficiency and simple front panel operation. The AA-13G-500 has a power gain of 57 dB minimum and operates with an input of 180 - 240 VAC single-phase (3 KW).

The AA-13G-500 is lightweight and has a low-profile (5U) build compared to standard amplifiers with the same specifications, allowing for easy transportation and more rack space for additional test systems. This unique amplifier offers high linearity and quick heat dissipation. The front panel is simple to operate with a touchscreen interface or can be controlled via Ethernet (RJ-45 TCP/IP), RS422/485 or GPIB interfaces. The Advanced Amplifiers AA-13G-500 unit is housed in a striking cobalt-blue cabinet for benchtop applications and can be removed for rack mounting.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Features

Rack mounted system
Class AB linear GaN design
Instantaneous wide bandwidth
Suitable for all single channel modulation standards
Built-in protection circuits
High reliability and ruggedness

Specifications

Parameter	Specification	Notes
Operating Frequency Range	1.0 - 3.0 GHz
Power Output @ Saturation	500 WattTyp	CW
Power Output @PldB GCP	300 WattTyp	CW
Power Gain	57 dB Min
Power Gain Flatness	3.0 dB p-p Max	Constant input power
Input Return Loss	10 dB Min	Relative to 50 Ohm
2-Tone Intermodulation (IMD)	-30 dBc Typ	47dBm/Tone, Δ = 1MHz
Harmonics	-20 dBc Typ	At rated output power
Spurious	-60 dBc Max	Non-harmonics
Operating Voltage	180 - 240 VAC
Power Consumption	3 KW Max	At rated Pout
Input Power Protection	+3 dBm Max	<10 Sec without damage
Load VSWR Protection	∞: 1	<1 minute at rated Pout
Operating Ambient Temperature	0 to +50 °c
Storage Temperature	-40 to +85 °c
Relative Humidity	5 to 95 %	Non-condensation
Dimensions W x H x D	430 x 222 x 560 mm	SU Rack Mount Chassis
Weight	35 Kg.

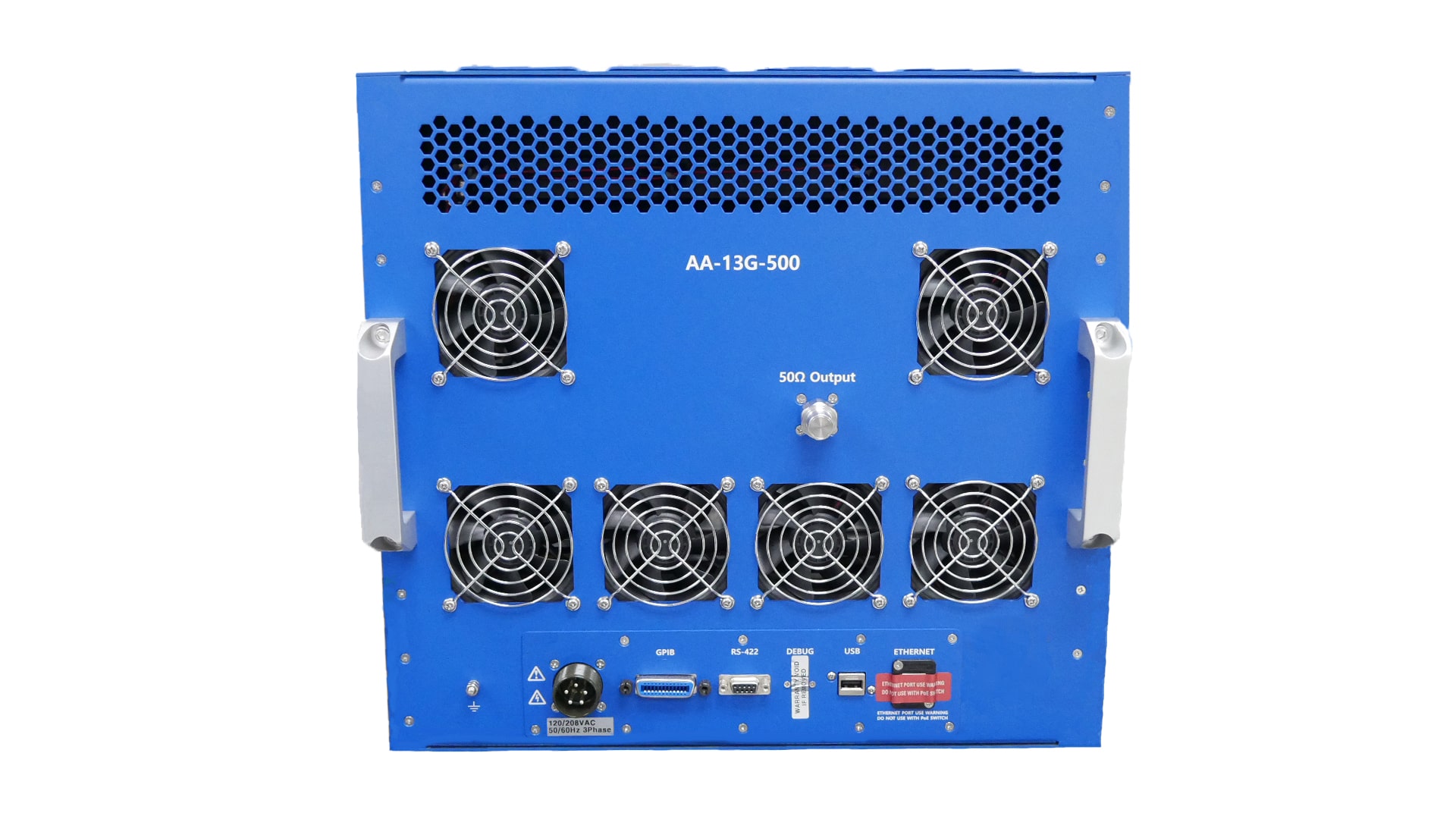

RF Connectors In/Out	Type-N Female	Front Panel Standard
AC Power / Interface	IEC 60320-C14 / 9-Pin D-Sub	Or equivalent
Cooling	Built in Fan Cooling	Variable speed
OPTIONAL: Digital Monitor & Control: FWD, REV, VSWR, GAIN, ALC, V & I, TEMP	Ethernet RJ-45 TCP/IP, RS422/485 Optional GPIB Interface	Remote Bluetooth application
