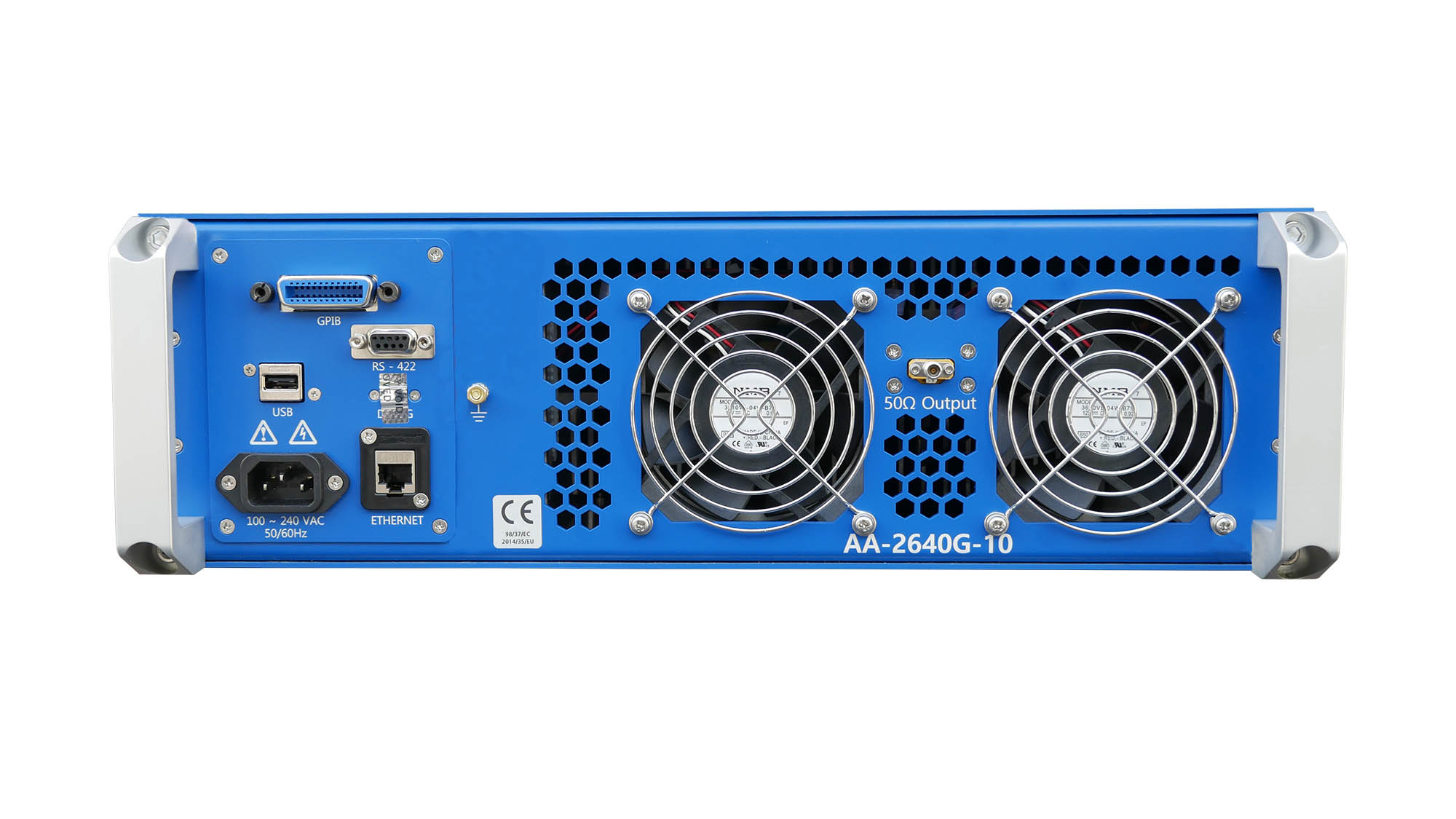

Advanced Amplifiers AA-2640G-10 Solid State Amplifier | 26.5 - 40.0 GHz , 10 W
Quote Add-Ons
Tech Support
(800) 404-2832
With Every
Rental
Worldwide
Delivery
Larger
Categories
RF Amplifiers
Solid State Power Amplifiers
CW Amplifiers
Documents
Datasheet
Print
Email
The Advanced Amplifiers AA-2640G-10 is a solid state RF amplifier that operates over a frequency range of 26.5 - 40.0 GHz and generates 10W of power. Advanced Amplifiers AA-2640G-10 RF power amplifiers feature an instantaneous wide bandwidth and are built with a class AB linear GaAsFET design. Ideal for EMI/RFI, lab, and general communications applications, the AA-2640G-10 is suitable for all single-channel modulation standards. Each unit is rack-mounted, offers local LCD and remote flexible interfaces, and performs with high reliability and ruggedness.
Specifications
Features
Applications
Options
Accessories
Standards
Videos
Features
Class AB linear GaAsFET design
Instantaneous wide bandwidth
Designed for EMI/RFI, lab, and general communication applications
Suitable for all single channel modulation standards
Rack mounted system
Local LCD & remote flexible interfaces
High reliability and ruggedness
Specifications
Parameter
Specification
Notes
Operating Frequency Range
26.5 - 40.0 GHz
Power Output
10 Watt Min
Saturated CW
Power Output at P1dB GCP
10 Watt Typ
Power Gain
53 dB Min
40 dB Min
Power Gain Flatness
6.0 dB p-p Max
Constant input power
Input Return Loss
-10 dB Max
Relative to 50 Ohm
Noise Figure
12 dB Max
43dBm/Tone, Δ = 1MHz
Harmonics
-20 dBc Typ
At rated Pout
Spurious
-60 dBc Max
Non-harmonics
Operating Voltage
100 - 240 VAC
Power Consumption
360 Watt Max
At rated Pout
Input Power Protection
+3 dBm Max
<10 Sec without damage
Load VSWR Protection
∞ : 1
<1 Minute at rated Pout
Operating Ambient Temperature
0 to +50 °C
Storage Temperature
-40 to +85 °C
Relative Humidity
5 to 95%
Non-condensation
Dimensions W x H x D
19 x 7 x 22 inch (483 x 178 x 580 mm)
10U
Weight
30 kg.
RF Connectors In/Out
2.9 mm (K / air type) Female
Gate Control
BNC Female
AC Power / Interface Connector
IEC 60320-C14 / 9-Pin D-Sub
Cooling
Built in Fan Cooling
Standard Digital Monitor & Control: FWD, REV, VSWR, GAIN, ALC, V & I, TEMP
Ethernet RJ-45 TCP/IP, RS422/485, USB, GPIB Interface
Applications
Options
Accessories
Standards
Media
RELATED PRODUCTS
Advanced Amplifiers AA-700M6G-300 Solid State Amplifier | 700 MHz - 6.0 GHz, 300 W
IFI T2618-50 Millimeter TWT Amplifier, 18 - 26.5GHz, 50Watt
Advanced Amplifiers AA-618G-40 Solid State Amplifier | 6.0 - 18.0 GHz, 40 W
Amplifier Research 2500A225 RF Power Amplifier 2500 Watt CW, 10 kHz – 225 MHz
IFI T251-500A TWT Amplifier 1 GHz - 2.5 GHz, 500 Watt
Advanced Amplifiers AA-80M1G-750 Solid State Amplifier | 80MHz - 1GHz, 750W
Amplifier Research 2500A225 RF Power Amplifier 2500 Watt CW, 10 kHz – 225 MHz
IFI SMC1500 Solid State Amplifier 80 - 1000MHz, 1500W
Empower 2208 Solid State Pulse Amplifier 1 - 2 GHz, 8kW
IFI SMC1500 Solid State Amplifier 80 - 1000MHz, 1500W
Empower 2170 Solid State Broadband High Power Amplifier 1 GHz - 3 GHz, 1000 W
Amplifier Research 2500A225 RF Power Amplifier 2500 Watt CW, 10 kHz – 225 MHz
IFI T2618-50 Millimeter TWT Amplifier, 18 - 26.5GHz, 50Watt
IFI T251-500A TWT Amplifier 1 GHz - 2.5 GHz, 500 Watt
IFI GT186-300 Gridded TWT Amplifier 6 GHz - 18 GHz, 300W
IFI T82-300 TWT Microwave Power Amplifier, 2 GHz - 8 GHz, 300Watts
IFI SMC1500 Solid State Amplifier 80 - 1000MHz, 1500W
IFI GT825-500 High Power Pulse TWT Amplifier 2.5 - 8 GHz, 500 Watt
Advanced Amplifiers AA-2100M-1000 Solid State Amplifier | 2 - 100 MHz, 1000 W
Advanced Amplifiers AA-618G-300 Solid State Amplifier
Advanced Amplifiers AA-1826G-40 Solid State Amplifier | 18 - 26.5 GHz, 40 W
Advanced Amplifiers AA-2640G-40 Solid State Amplifier | 26 - 40 GHz, 40 W
IFI T188-500 High Power Amplifier 7.5 GHz - 18 GHz, 500 Watt
IFI PT42-5KW Pulse Amplifier | 2 GHz - 4 GHz, 5000W
IFI PT1812-3.5KW Pulse Amplifier 12 GHz - 18 GHz
×
