Amplifier Research 1000W1000F
Request Quote Print Page
1000W1000F Datasheet

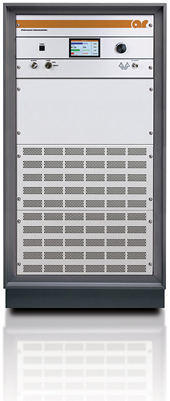

The Amplifier Research 1000W1000F is a solid state broadband amplifier that generates 1000 W of continuous wave power and operates over an instantaneous frequency range of 80 MHz - 1000 MHz. AR 1000W1000F units are ideal amplifiers for applications calling for high gain and an instantaneous bandwidth. To lower distortion and enhance stability, push-pull circuitry is used in all high-power stages. A digital control panel offers both local or remote control of the Amplifier Research 1000W1000F amplifier, providing status reporting and control capability from an LCD touchscreen. Gain control, internal automatic level control and forward/reflective RF sample ports are built in, along with output level protection. AR 1000W1000F devices are housed in a single equipment rack.

Amplifier Research 1000W1000F Features
  • 1000 W
  • 80 MHz - 1000 MHz
  • LCD touchscreen display
  • Solid state amplifier, broadband, instantaneous bandwidth
  • GPIB/IEEE-488, RS-232, fiber optic, USB, Ethernet
Amplifier Research 1000W1000F Specs
RATED OUTPUT POWER Typical, 1200 watts; 1000 watts minimum
INPUT FOR RATED OUTPUT 1.0 milliwatt maximum
POWER OUTPUT @ 3 dB compression Nominal 1200 watts, 1100 watts min up to 700 MHz
950 watts from 700 to 1000 MHz
POWER OUTPUT @ 1 dB compression Nominal 1000 watts, 950 watts min up to 700 MHz
850 watts min from 700 to 1000 MHz
FLATNESS ±1.5 dB maximum; ±1.0 dB typical
FREQUENCY RESPONSE 80–1000 MHz instantaneously
GAIN (at maximum setting) 25 dB minimum
INPUT IMPEDANCE 50 ohms, VSWR 1.5:1 maximum, 1.3:1 typical
OUTPUT IMPEDANCE 50 ohms nominal
