Amplifier Research 30S1G3M3 RF Amplifier .8 - 3 GHz 30 Watts

Rent Amplifier Research 30S1G3M3 Solid State RF Amplifier .8 - 3 GHz 30 Watts
Enlarge Image
Request Quote Print Page
Datasheet

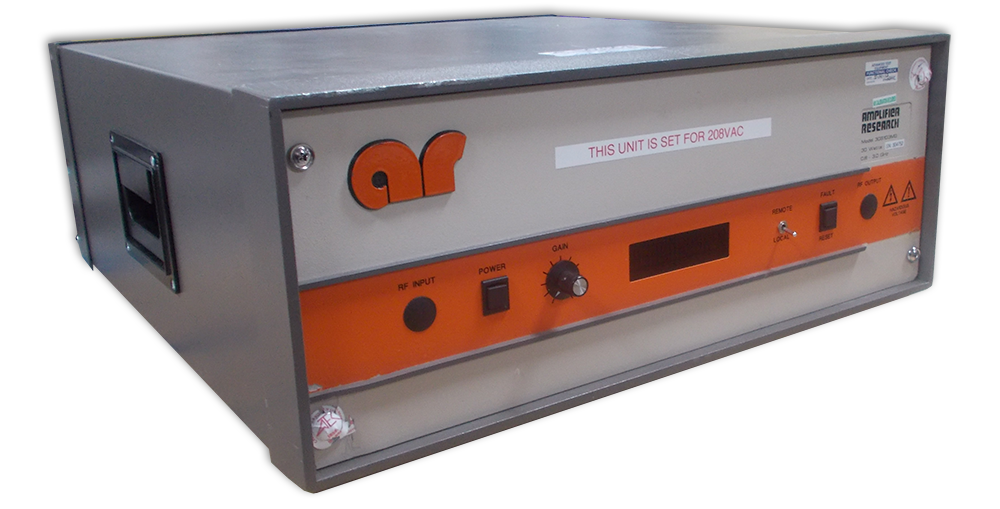

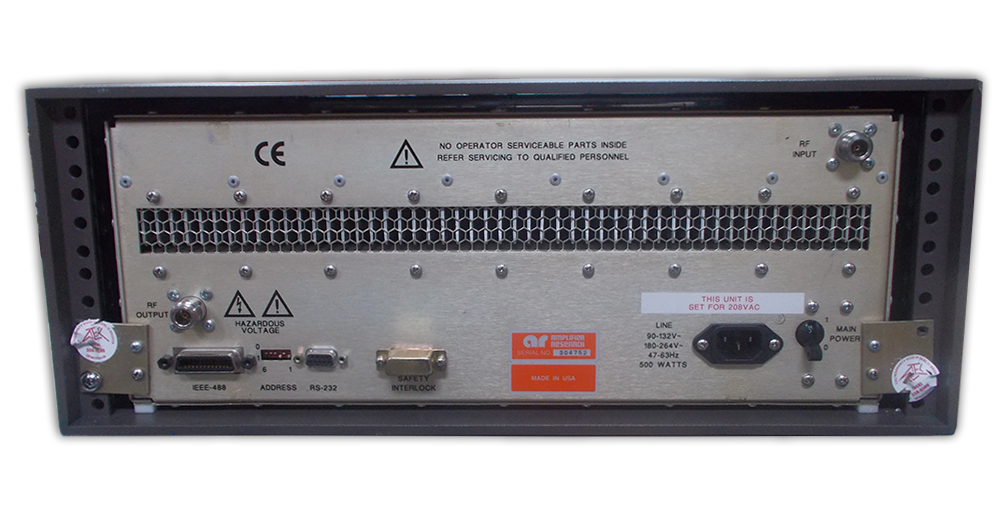

The Amplifier Research 30S1G3 0.8 GHz - 3 GHz, 30 Watt CW, Solid-State RF Broadband Amplifier is a solid state, self-contained, air-cooled, broadband amplifier designed for applications where instantaneous bandwidth, high gain and linearity are required. Housed in a stylish contemporary cabinet, the unit is designed for benchtop use, but can be removed from the cabinet for immediate equipment rack mounting.





Specifications:


Rated Power Output 30 Watts Minimum
Input For Rated Output 1.0 Milliwatt Maximum
Power Output at 3dB Compression Nominal: 37 watts
Minimum: 30 watts
Power Output at 1dB Compression Nominal: 32 watts
Minimum: 25 watts
Flatness ±1.5 dB typical
±2.0 dB maximum
Frequency Response 0.8 GHz - 3.0 GHz instantaneously
Gain (at maximum setting) 45 dB minimum
Gain Adjustment (Continuous Range) 10 dB minimum (4096 steps remote)
Iput Impedance 50 ohms
VSWR 2.0:1 maximum
Output Impedance 50 ohms, nominal
Harmonic Distortion Minus 20 dbc
max at 25 watts
Spurious Minus 73 dbc Type
Phase Linearity ± 1.0 deg/100 MHz, Type
Primary Power (Selected Automatically) 90-132, 180-264 VAC
50/60 Hz, single phase
340 watts maximum
RF Input Connector Type N female
RF Output Connector Type N female
