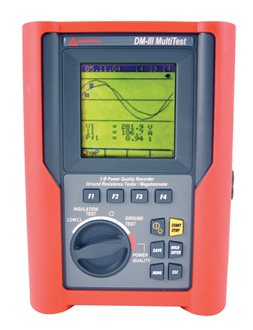

The Amprobe DM-III MultiTest 1000A Power Quality Recorder works with single and three phase systems. The DM-III measures and records a broad spectrum of power quality parameters, AC current, AC voltage to 600V including sags and surges, harmonics, active, reactive and apparent power & energy, peak demand, power factor, and frequency measure. The Amprobe DM-III provides three measuring modes for ground resistance and resistivity functions.
The megohmmeter function of the Amprobe DM-III offers selectable test voltages up to 1000V and the power quality analyzer/ data logger is True RMS. This leading power quality recorder records up to 64 parameters (single or three phase) simultaneously. The DM-III comes as a complete kit: current transducers, voltage leads, ground probes & leads, PC software and download cable are included with this product.
Features
- True-rms
- Measures and records broad spectrum of power quality parameters: AC current, AC voltage to 600V including sags and surges, harmonics (THD and individual up to 49th), active, reactive and apparent power & energy, peak demand, power factor, frequency measure
- Compatible with wide range of current transducers
- Comes as a complete kit: current transducers, voltage leads, ground probes & leads, PC software and download cable are included with this product.
- Works with single and three phase systems (Y and Delta)
- Detects and records voltage anomalies, sags and surges
- Built in scope displays waveforms
- Phase sequence indication
- Records up to 64 parameters (single or three phase) simultaneously
- Manual and programmable recording start
- Password protection
- Selectable fundamental frequency of 50 or 60 Hz
- Special data compression system and user selectable rates allow recording from several hours to several years

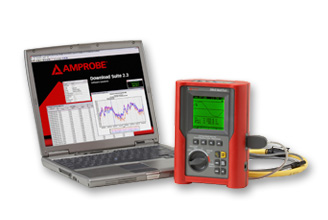

- Download capabilities, Windows compatible PC software
- Displacement power factor for power factor correction determination
- Line or battery powered
- Megohmmeter functions: Tests insulation of wires, cables, transformers and electrical motors
- Selectable test voltages up to 1000V
- Programmable timer to perform the dielectric absorption ratio test
- Sensitive ohmmeter for checking resistance of motor windings
- Selectable polarization of ohmmeter for checking grounding continuity
- Automatic voltmeter protects against misuse on hazardous energized systems
Specifications
| FEATURE |
DM-III MULTITEST |
| AC Voltage |
600 V |
| AC Currrent |
1000 A |
| Optional CT’s |
1000 A, 3000 A |
| Harmonics |
THD, DC to 49th |
| Power |
W, VAR, VA |
| Energy |
Wh, WARh, VAh |
| Voltage anomalies |
Sag/surge |
| Power factor |
0.00 +/- 1.00 |
| Frequency |
50 / 60 Hz |
| Phase sequence |
1-2-3 |
| Insulation tester |
50 V, 100 V, 250 V, 500 V, 1000 V |
| Ground resistance |
Resistance & resistivity |
