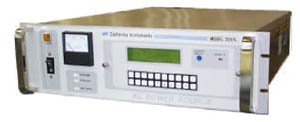

California Instruments 1503L
Request Quote Print Page
Specifications
With the California Instruments 1503L AC Power Supply you can test any product that operates from AC power with the most compact, versatile power source in the test industry. The L-Series' small size provides more power per inch than most other AC supplies. Highly efficient, this product dissipates less heat than previous generation systems and allow up to an additional 10% output power.

California Instruments 1503L Specs
Power at 35° C 1 Phase2 Current in 135 V range Cur/phase 3 mode
A rms A peak 3 A peak 4
1667 VA 3 4.1 9.3 10 4.1

Notes:

1. Derate power by 10% for operation at 50° C ambient or when using the -UP option
2. 1 or 3 phase systems are factory configured unless the "MODE" option is specified
3. Repetitive peak current capability
4. Non repetitive peak inrush current
