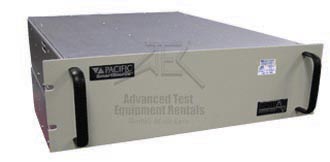

Pacific Power 360AMXT
Request Quote Print Page
Datasheet
The Pacific Power 360AMXT with the Pacific Power 13450 is a unique approach to generate programmable DC voltages. Pacific Power's AMXT high performance linear AC power sources offer low output voltage noise and distortion, ease of installation, and high AC waveform fidelity that is used to product the required DC output voltage.

Pacific Power 360AMXT Features
  • Advanced Linear Amplifiers Provide Very Low Voltage Distortion, no Switching Noise, Fast Voltage and Current Slew Rates, Exceptionally Low Output Impedance and High Peak Current Capability
  • Single or Split phase selectable output from front panel or bus command
  • 20 to 5,000 Hz. Full Power Bandwidth Operation – 5Hz to 50KHz small signal bandwidth, 3dB at 10% of full voltage
  • Precision Voltage Programming – 0.05% with Continuous Self-Calibration (CSC) engaged
  • True-RMS Metering of Volts, Amps, and Power
  • GPIB (IEEE-488.2) or RS-232 Interface
  • Waveform Library – Arbitrary Waveform Generator
  • Up to 99 Programs with Associated Transients for Static and Dynamic Test Applications
  • UPC Studio Software Suite
Pacific Power 360AMXT Specs
  • Rated Power (VA): 6000
  • Output Form:3
  • Output Volts - Max (VRMS): 135/270, 135(L-N)
  • Output Amps (ARMS): 48/16, 16 per
  • Output Amps (APeak): 210/70, 70 per
  • Input Power Form: 3
Pacific Power 360AMXT Standards
Document of capable IEC Standards
