California Instruments

California Instruments SQ0045C1C Grid Simulator | 45 kVA / 45 kW 1, 3P

  Tech Support
(800) 404-2832
ATEC Assurance With Every
Rental
    Worldwide
Delivery
California Instruments SQ0045C1C Grid Simulator | 45 kVA / 45 kW 1, 3P Larger
Categories
  • AC Power Supplies
    AC Power Supplies
  • DC Power Supply
    DC Power Supply
  • Grid Simulators
    Grid Simulators
Documents
  • Datasheet
  • Print
  • Email
The California Instruments SQ0045C1C Grid Simulator is an AC and DC power supply with 45 kVA power per chassis. The SQ0045C1C2-20E0000 model has an AC voltage range of 0-333 Vrms L-N (0-440 Vrms L-N Optional) and a DC voltage range of 0 to 440 VDC. The California Instruments SQ0045C1C Grid Simulator is ideal for power conditioning equipment testing, avionics & shipboard electronics testing, regulatory compliance testing, and more.
  • Specifications
  • Features
  • Applications
  • Options
  • Accessories
  • Standards
  • Videos
Features
  • Dual Voltage ranges that support over voltage testing on 480 V based systems
  • Instrument Setups for quickly re-establishing the known instrument state
  • 500uS time resolution for Transients
  • Virtual Panels control software included
  • Non-Linear current waveform programming during Load mode
  • Phase coordination among multiple units (LKM/LKS)
  • Powerful set of analog controls for PHIL and Modulation tests
  • Trigger In & Out to permit extensive coordination with external systems
  • Extensive Onboard diagnostics
  • Digital I/O, including RS232, USB, Ethernet (GPIB optional)
  • Intuitive 5” color display for ease of navigation
  • Auto-paralleling for maximum flexibility with multi-chassis configurations
  • Separate terminal blocks for single phase and 3 phase outputs
Specifications
Output power 45 kVA / 45 kW 1 or 3 Φ
Voltage range (AC) Low Range: 0-166 Vrms L-N
High Range: 0-333 Vrms L-N
Voltage range (DC) Low Range: 0-220 VDC
High Range: 0-440 VDC

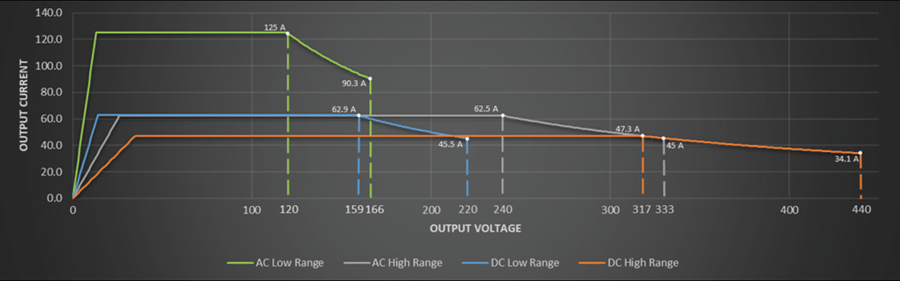

Current per Φ (max) 125/62.5 Arms
85/42.5 ADC
Frequency range DC: 16 - 550 Hz
DC: 16 - 905 Hz with HF option (source mode only)
Frequency accuracy ±0.01% + (resolution/2)
Current Range 125/62.5 Arms
85/42.5 ADC
Power Range 45 kVA / 45 kW
Operating Temperature 0°C to +40°C (+32°F to +104°F)
Applications
  • Power Conditioning Equipment Testing
  • Grid Interactive Green Energy & Distributed Power Generation
  • Avionics & Shipboard Electronics Testing
  • Regulatory Compliance Testing
  • Electric Vehicle (EVSE, V2G) Testing
  • Manufacturing Line Testers
  • Advanced Renewable Energy Simulation and Testing
Options
Accessories
Standards
Media

RELATED PRODUCTS

Keysight RP7983A Regenerative DC Power Source | 2000 V, 30 kW
Keysight RP7983A Regenerative DC Power Source | 2000 V, 30 kW
NH Research 9410 Regenerative Grid Simulator | 30 - 100 Hz, 3P
NH Research 9410 Regenerative Grid Simulator | 12 kW - 36 kW, 3P
Regenerative Grid Simulator 50kW up to 1.2MW – Model 9510
NH Research 9510 Regenerative Grid Simulator | 50kW to 1.2MW
Pacific Power 3150AFX AC and DC Programmable Power Source
Pacific Power 3150AFX AC & DC Programmable Power Source
California Instruments Asterion AST2253 AC/DC Power Source | 2250 VA
California Instruments Asterion AST2253 AC/DC Power Source | 2250 VA
Chroma 62180D-100 Bidirectional DC Power Supply | 100 V, 18 kW
Chroma 62180D-100 Bidirectional DC Power Supply | 100 V, 18 kW
Preen PAS Series Grid Simulators | 45 - 2000 kVA, 3P
Preen PAS Series Grid Simulators | 45 - 2000 kVA, 3P
Chroma 61860 Regenerative Grid Simulator 60 kVA
Chroma 61860 Regenerative Grid Simulator | 60 kVA
Chroma 62180D-600 Bidirectional DC Power Supply | 600 V, 18 kW
Chroma 62180D-600 Bidirectional DC Power Supply | 600 V, 18 kW
Pacific Power 3500 AZX Regenerative AC and DC Power Source | 50 kVA, 50 kW, 3P
Pacific Power 3500 AZX Regenerative AC and DC Power Source | 50 kVA, 50 kW, 3P
California Instruments MX45 AC Power Source | 45 kVA, 3P
California Instruments MX45 AC Power Source | 45 kVA, 3P
Chroma 62180D-1800
Chroma 62180D-1800 Bidirectional DC Power Supply
Pacific Power Supply
Pacific Power 360AMX AC Power Supply
TDK Lambda GENESYS+15KW Programmable DC Power Supply
TDK Lambda GENESYS+15KW Programmable DC Power Supply
California Instruments Asterion AST2253 AC/DC Power Source | 2250 VA
California Instruments Asterion AST2253 AC/DC Power Source | 2250 VA
California Instruments CSW5550 Programmable AC/DC Power Source, 5550VA
California Instruments CSW5550 Programmable AC/DC Power Source, 5550VA
NH Research 9300 High-Voltage Battery Test System | 1200 V, 100 kW - 2.4 MW
NH Research 9300 High-Voltage Battery Test System | 1200 V, 100 kW – 2.4 MW
Preen AFV Series Programmable AC Power Source
Preen AFV Series Programmable AC Power Sources
California Instruments Tahoe TA0045A1 AC Power Supply
California Instruments Tahoe | TA0045A1 Power Supply | 45kVA
Sorensen SG Series DC Power Supply
Sorensen SG Series DC Power Supply
Magna-Power Electronics MTAIV600-240
Magna-Power Electronics MTAIV600-240 DC Power Supply
Preen PWF-L 33045 Programmable AC Power Source
Preen PWF-L 33045 Programmable AC Power Source
Chroma 61612 AC/DC Power Source, 36kVA
Chroma 61612 Programmable AC/DC Power Source
Regatron TopCon Quadro TC.P.32.1000.480
Regatron TopCon Quadro TC.P.32.1000.480 DC Power Supply
California Instruments CSW5550 Programmable AC/DC Power Source, 5550VA
California Instruments CSW5550 Programmable AC/DC Power Source, 5550VA
  • Certified ISO 9001
  • A2LA
REP PORTAL Terms & Conditions About About ATEC Blog Media News FAQs Forms Careers

© 2023 Advanced Test Equipment Corp. All Rights Reserved.

Privacy Notice Terms of Use Site Map Linecards
This site uses cookies, as explained in our cookie policy.
