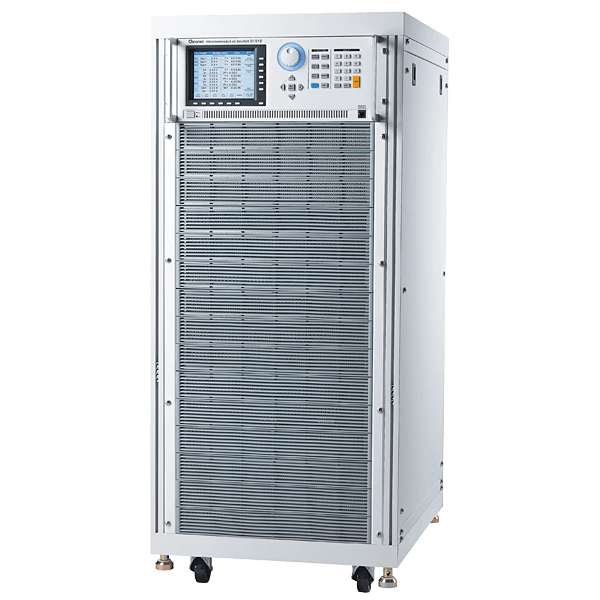

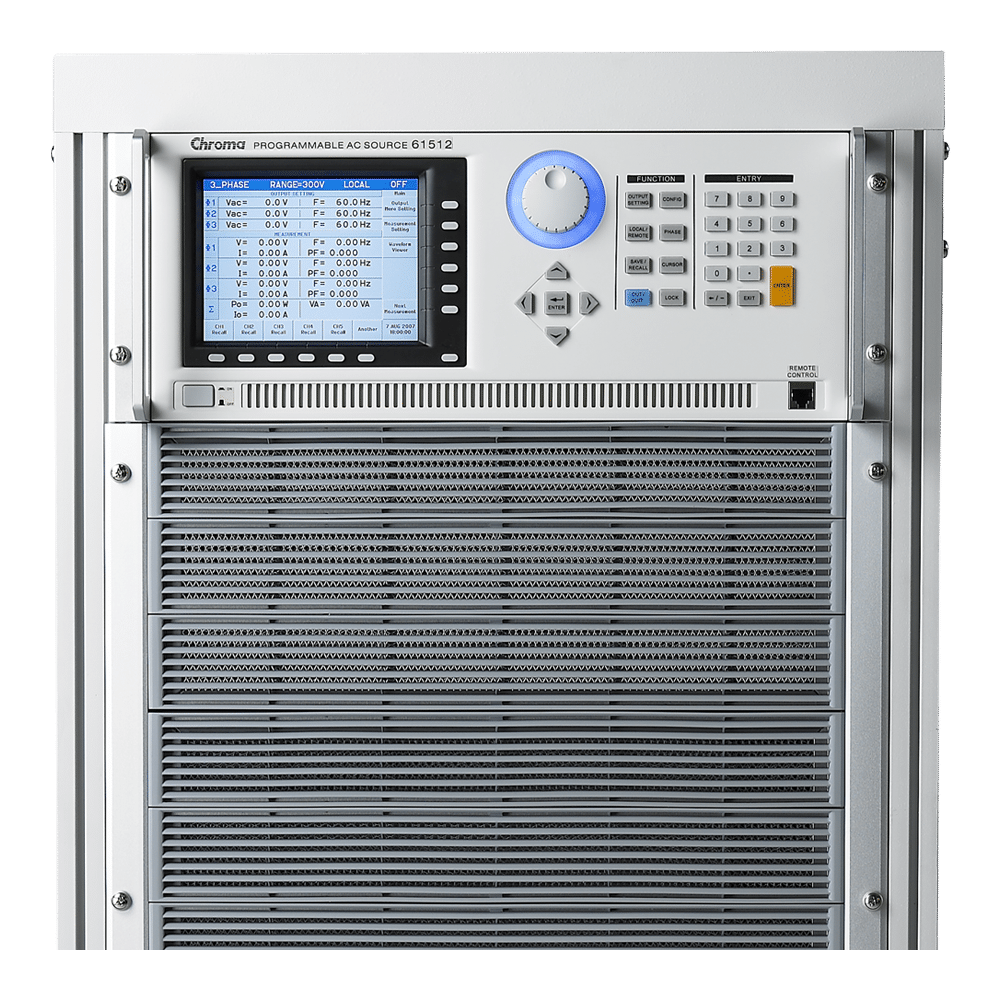

Chroma 61512 AC Power Source

Chroma 61512 AC Power Source
Enlarge Image
Request Quote Print Page
Datasheet

Features:

  • Programmable Voltage and Current Limit
  • Programmable Slew Rate Setting for Changing Voltage and Frequency
  • Single-Phase or Three-Phase Output Selectable
  • High Output Current Crest Factor, Ideal for Inrush Current Testing
  • TTL Signal Which Indicates Output Transient
  • LIST, PULSE, STEP Mode Functions for Testing Power Line Disturbance (PLD) Simulation
  • Voltage Dips, Short Interruption and Voltage Variation Simulation
  • Harmonics, Inter-Harmonics Waveform Synthesizer
  • Comprehensive Measurement Capability, Including Current Harmonics
  • Analog Programmable Interfaces
  • Remote Interface: GPIB, RS-232, USB and Ethernet


Specifications:

Output Phase 1 or 3 slectable
Output Rating-AC
Power 18kVA
Each Phase 6 kVA
Voltage
Range 0~150V/0~300V
Accuracy 0.2%+0.2%F.S.
Resolution 0.1 V
Distortion *1 0.3% @50/60Hz , 1%@15~1kHz,1.5%@>1kHz
Line regulation 0.1%
Load regulation *2 0.2%
Temp. coefficient 0.02% per degree from 25°
Max Current (1-phase mode)
RMS 144A / 72A
Peak (CF=4) 576A / 288A
Max Current (each phase in 3-phase mode)
RMS 48A / 24A
Peak (CF=4) 192A / 96A
Frequency
Range DC, 15-1.5kHz
Accuracy 0.15%
Phase
Range 0 ~ 360°
Resolution 0.3°
Accuracy <0.8°@50/60Hz
DC Output (1-phase mode)
Power 9kW
Voltage 212V / 424V
Current 72A / 36A
DC Output (3-phase mode)
Power 3kW
Voltage 212V / 424V
Current 24A / 12A
Input AC Power (each phase)
AC type 3-phase, Delta or Y connecting
Voltage range *3 190-250V (Delta: L-L, Y: L-N)
Frequency range 47-63 Hz
Max. current Delta: 120A Y: 90A
Measurement
Voltage
Range 150V / 300V
Accuracy 0.2%+0.2%F.S.
Resolution 0.1 V
Current
Range 192/48/12 A peak
Accuracy (rms) 0.4%+0.3%F.S
Accuracy (peak) 0.4%+0.6%F.S.
Resolution 0.1 A
Power
Accuracy 0.4%+0.4% F.S
Resolution 0.1 W
Dimensions (H x W x D) 1163 x 546 x 700 mm / 45.78 x 21.5 x 27.56 inch *5
Weight 242.4 kg / 533.92 lbs
