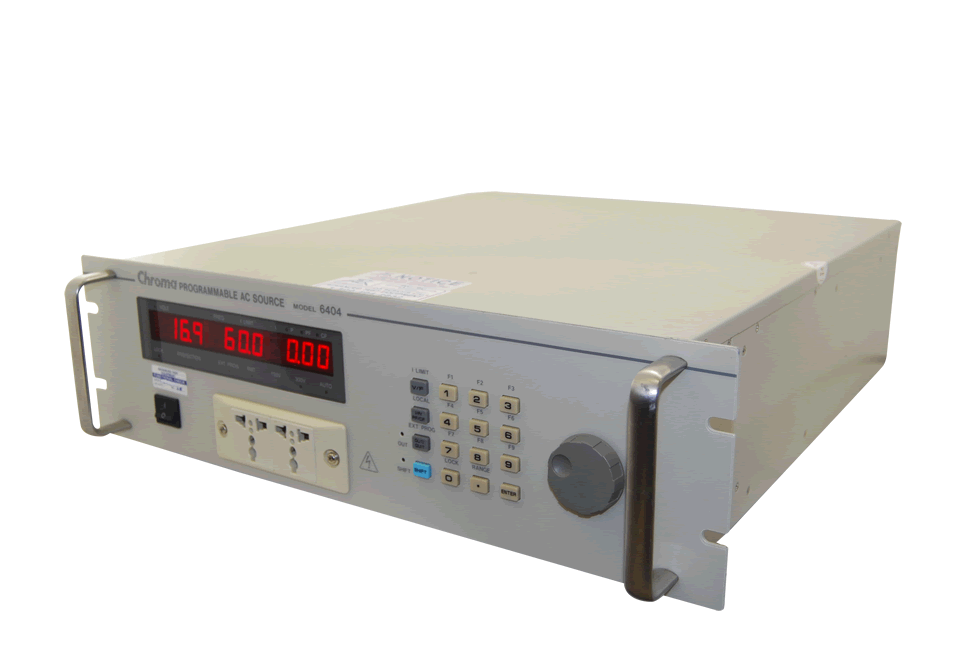

Chroma 6404 300 Volts, 375VAC, 45-500Hz Single Phase AC Power Source

Larger

Categories

AC Power Supplies

Documents

Datasheet

The Chroma 6400 Series Programmable AC Power Source uses state of the art PWM technology to deliver pure, instrument grade AC power at very low cost. The Chroma 6404 AC power source offers maximum rated power for the output voltage from 0 to 300 VAC, at the frequency from 45 Hz to 1 kHz. It is not only suitable for commercial applications (47 Hz - 63 Hz), but also for avionics, marine, and military applications at 400 Hz.

Specifications
Features
Applications
Options
Accessories
Standards
Videos

Output / Phase	1
Output Ratings
Power / Phase	375 VA
Voltage	Range / Phase:	150V/300V/Auto
	Accuracy:	0.2% of F.S. for freq. ≤200 Hz, 0.4%F.S. for freq. >200 Hz
	Resolution:	0.1V
	Distortion:	typ.0.3% for freq. ≤200 Hz, 0.8% for freq. >200 Hz
	Line Regulation:	0.1%
	Load Regulation:	0.1%
	Temp. Coefficient:	0.02% per °C
Max. current-rms	2.5 Amps/1.25 Amps
Peak Current/Phase - crest factor	Typ. 2.8 for freq. ≤100 Hz, typ. 2.2 for freq. >100 Hz
Frequency	Range:	45 Hz - 500 Hz
	Accuracy:	0.1%
	Resolution:	0.1 Hz
Input Ratings
Voltage Range	90 - 132 V/180 - 250 V
Frequency Range	47 Hz - 63 Hz
Current	7.5A Max.
Power Factor	0.8 Typ.
Measurement
Voltage / Phase	Range:	0 - 150 V/0 - 300 V
	Accuracy (rms):	0.1% F.S. + 0.1%
	Resolution:	0.1 V
Current / Phase	Range (peak):	0 - 2 Amps/2 - 10 Amps
	Accuracy (rms):	0.2% F.S. + 0.5%
	Resolution:	0.01 Amps
Power / Phase	Range:	0 - 375 Watts
	Accuracy:	0.5% F.S.
	Resolution:	0.1 Watts
Frequency	Range:	45 Hz - 500 Hz
	Accuracy:	0.02%
	Resolution:	0.1 Hz
