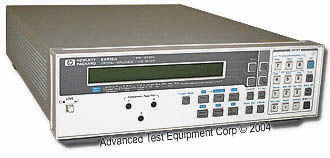

Agilent / HP E4916A Crystal Impedance Meter
Enlarge Image
Keysight E4916A
Request Quote Print Page
Manual E4916A Datasheet Supplemental Document Additional Information
The E4916A is a crystal impedance meter based on the transmission p network method which enables you to:
  • Test at high frequencies (1 MHz to 180 MHz)
  • Apply low drive level (0.1 nW to 1 mW, when testing a 25 W DUT with the p circuit).


The E4916A yet provides a cost effective solution, comparable enough to conventional CI meters.
  • Meets IEC Standard through the Transmission π Network Method
  • Allows Testing at up to 180 MHz
  • Enables Applying 0.1 nW Low Drive Level
  • Automates Testing and Evaluation through HP-IB and Parallel I/O Interfaces
  • 1MHz to 180MHz
  • +-2ppm Accuracy
  • 1MHz Resolution
Keysight E4916A Features
  • Based on the transmission p network method recommended by the IEC60050-444 standard
  • Wide frequency range (1 MHz to 180 MHz)
  • Easy to change the drive level (0.1 nW to 1 mW)
  • Applies up to 20 mW to the DUT when used in combination with the optional impedance probe (option 001)
  • Allows you to use the same test fixtures as those for the network analyzer
  • Provides the p calibration to correct errors resulting from the extension of the cable
  • Saves and recalls up to 10 patterns of the system settings together with calibration data
