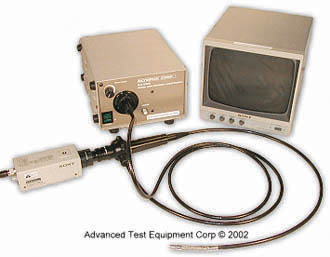

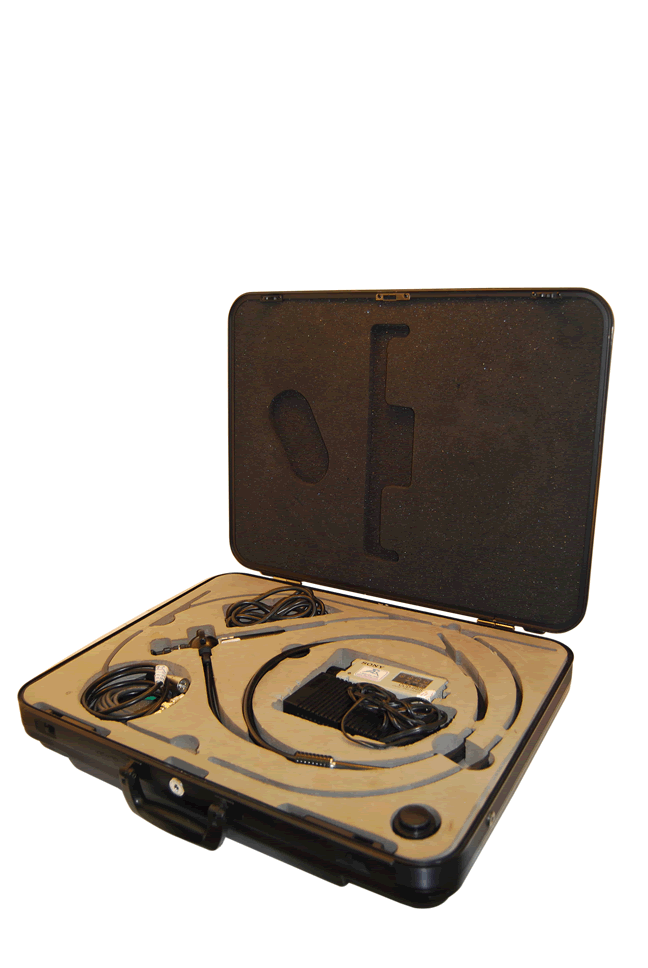

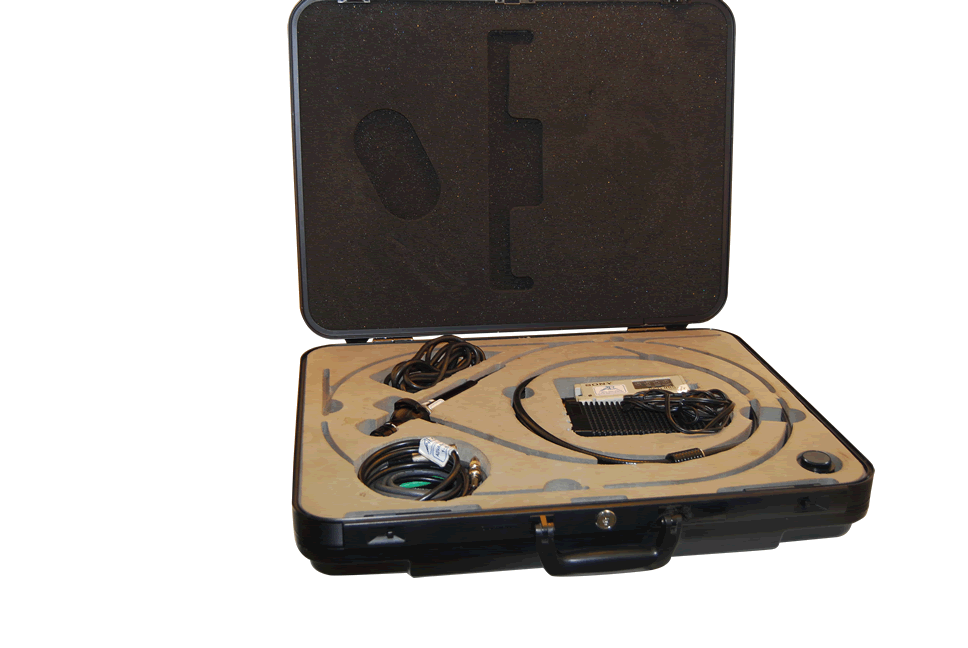

Olympus IF8D4X2-10 Industrial Flexible Fiberscope/Borescope

Olympus IF8D4X2-10 Industrial Flexible Fiberscope/Borescope
Enlarge Image
Olympus IF8D4X2-10 Industrial Flexible Fiberscope/Borescope Olympus IF8D4X2-10 Industrial Flexible Fiberscope/Borescope Olympus IF8D4X2-10 Industrial Flexible Fiberscope/Borescope
Request Quote Print Page
Specifications

Features:

  • Olympus' innovative construction of the flexible portion of the insertion tube, a stainless braid impregnated with special resin, improves durability
  • Use of original Olympus high-definition fibers and high-quality optical systems for bright, sharp images and photos
  • Fixed-focus construction permits simultaneous inspection of near and far objects for easy observation
  • The bending section can be easily angled in the UP and DOWN, and locked.



Optical System

  • Field of view: 60° with direct tip
  • Direction of view: forward viewing
  • Depth of field: 8 mm / 0.3152" - infinity
  • Illumination system: light guide system
  • Optional interchangeable tip adaptors



Insertion Tube

  • Distal End
    • Max. outer diameter: 8.5 mm / 0.3349"
    • Rigid distal end length: 15.6 mm / 0.6146"
  • Bending Section, angulation range: UP 90°, 90% DOWN
  • Max. Outer Diameter:  8.5 mm / 0.3349" (The scope can be inserted into a bore with a minimum inner diameter of 8.5 mm. / 0.3349")



Other Specifications:

  • Working Length: 770 mm / 30.338")
  • Operating Temperature
    • Insertion Tube: in air: 10°C - 80°C / 50 - 176°F
    • All portions other than the insertion tube: in air: 10°C - 50°C / 50 - 122°F
  • Operating Pressure
    • Insertion Tube: In air: 1013 hPa / 1 atm
    • All portions other than the insertion tube: In air: 1013 hPa / 1 atm
