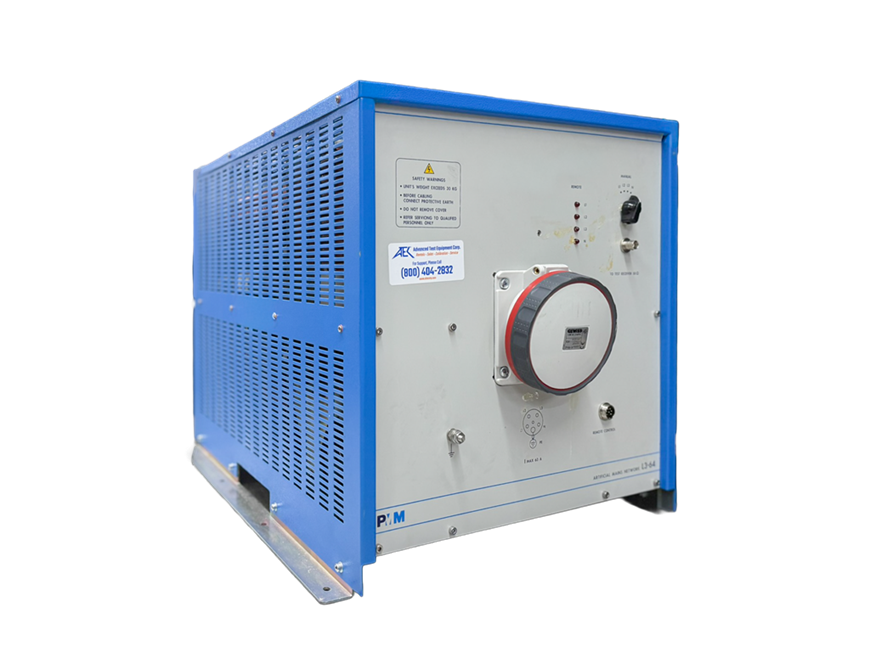

The PMM L3-32 3-phase LISN provides a frequency range of 9 kHz to 30 MHz. With a rated output current of 32 A and a built-in selectable 150 kHz high pass filter, the PMM L3-32 is suitable for measurement on AC 3-phase power circuits from DC to 60 Hz. The equivalent V-Network circuit of 50 Ω // (5 Ω + 50 μH) with 250μH choke is fully compliant with the reference standards.

PMM L3-32 3-phase LISNs help users meet the requirements of several standards including CISPR 16-1-2, VDE 0876, FCC part 15, and MIL-STD 461F.
