Com-Power LI-3100 Line Impedance Stabilization Network (LISN)

Need Help? Call (800) 404-2832ATEC AssuranceWorldwide Delivery
Rent Com-Power LI-3100 Line Impedance Stabilization Network (LISN)
Enlarge Image

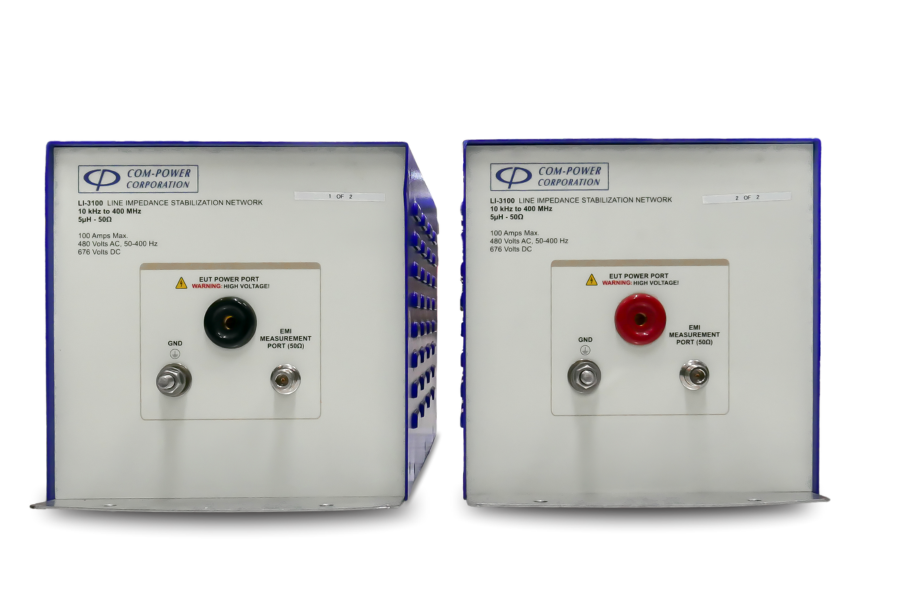

Com-Power LI-3100
Request Quote Print Page
LI-3100 Datasheet

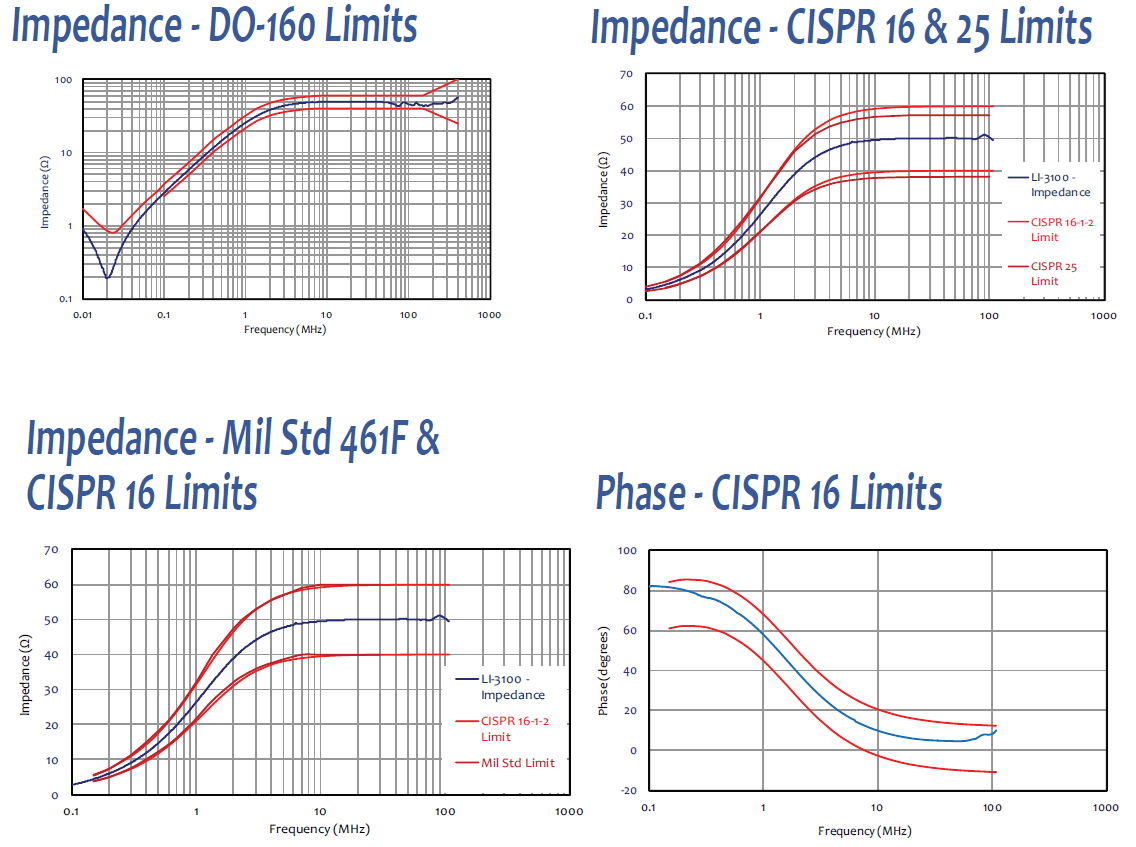

The Com-Power LI-3100 Line Impedance Stabilization Network (LISN) can handle upto 100 Amps AC (70 Amps DC) current and provides the necessary measurement platform for performing power line conducted emissions compliance testing as required by DO-160 & MIL-STD 461F and CISPR 25 and CISPR 16 from 10 kHz to 400 MHz.

The concept and advantages of the LISN is to:
a) connect in series with, and impose a defined impedance on, the lines under test; thereby providing a distinct advantage over current or voltage probe measurements, where the impedance of the lines is largely uncontrolled;
b) provide a coaxial RF measurement port for connection to the measurement equipment, to which the disturbance voltages present at the EUT port are coupled for measurement; and,
c) isolate the AE (ancillary equipment) port from the EUT and RF ports, which:
1) minimizes the influence of the AE-connected equipment/cabling on the impedance (and voltage division factor) of the network; and,
2) reduces the amplitude of any ambient signals, as well as spurious disturbance voltages generated by the AE-connected equipment, thereby minimizing their potential impact on the measurement results.

Two pairs of LI-3100 can be used to accommodate 3-phase power systems (Wye or Delta configurations).
Com-Power LI-3100 Features
  • Frequency range of 10 kHz to 400 MHz
  • Fully compliant with DO-160/ MIL-STD 461/ CISPR 25/ CISPR 16
  • 5 µH “Air-core” inductor to prevent saturation
