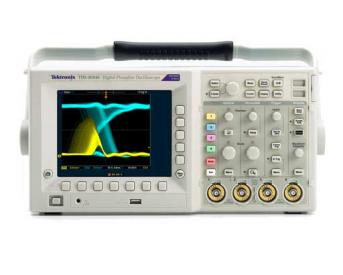

Tektronix TDS3014C Digital Phosphor Oscilloscope

The Tektronix TDS3014C Digital Phosphor Oscilloscope is a 100MHz, 1.25GS/s, 4-channel oscilloscope. Tektronix TDS3014C oscilloscopes offer fast waveform capture rates on a continuous basis that save you time by quickly revealing the nature of faults, so advanced triggers can be applied to isolate them. Real-time intensity grading highlights the details about the history of a signal's activity, making it easier to understand the characteristics of the waveforms the Tektronix TDS3014C captures. Unlike other comparable oscilloscopes, the history remains even after the acquisition has been stopped.

The TDS3014C combines unique digital real-time (DRT) sampling technology with sin(x)/x interpolation to allow you to accurately characterize a wide range of signal types on all channels simultaneously. With the TDS3014C, there is no change in sampling rate when additional channels are turned on, unlike other comparable oscilloscopes. This sampling technology makes it possible to capture high-frequency information, such as glitches and edge anomalies, that elude other oscilloscopes in its class, while sin(x)/x interpolation ensures precise reconstruction of each waveform.

Product Info Related Products

Input channels	4
Bandwidth	100 MHz
Rise time (typical)	3.5 ns
Sample rate on each channel	1.25 GS/s
Record length	10 kpoints
See datasheet for more specifications

100 MHz, 300 MHz, and 500 MHz bandwidth models
2 or 4 analog channel models
Sample rates up to 5 GS/s real time on all channels
10k record length on all channels
3,600 wfms/s continuous waveform capture rate
Suite of advanced triggers
Front-panel USB host port for easy storage and transfer of measurement data
25 automatic measurements
FFT standard
Multiple language user interface
WaveAlert® automatic waveform anomaly detection
TekProbe® interface supports active, differential, and current probes for automatic scaling and units
