Tektronix THS730A Scope Meter

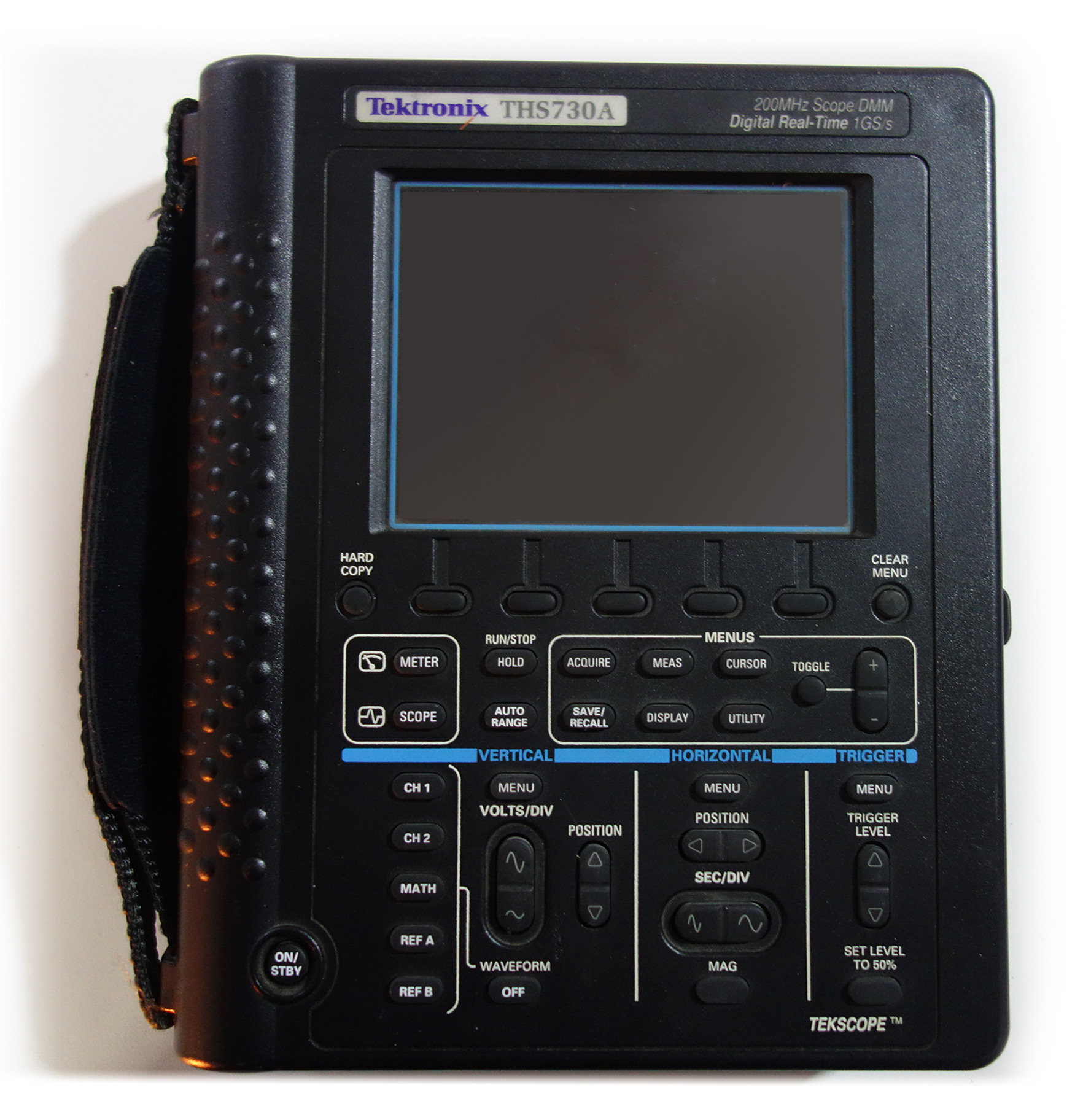

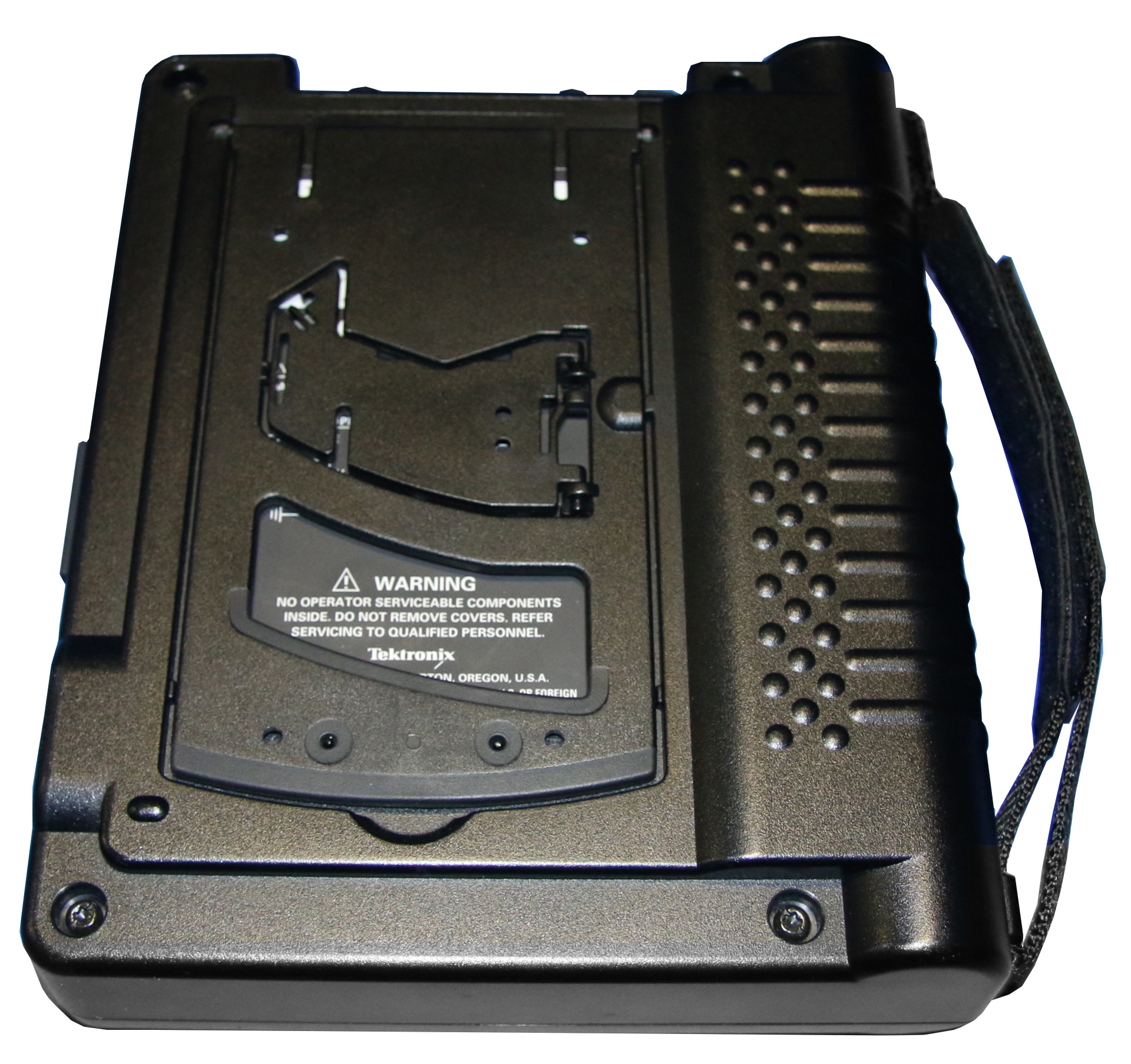

Tektronix THS730A 200 MHz 1Gs/S Scope Meter
Enlarge Image
Tektronix THS730A 200 MHz 1Gs/S Scope Meter Tektronix THS730A 200 MHz 1Gs/S Scope Meter Tektronix THS730A 200 MHz 1Gs/S Scope Meter
Tektronix Test Equipment THS730A
Request Quote Print Page
Datasheet
  • Bandwidth: 200 MHz
  • Sample Rate (Each Channel): 1 GS/s T
  • ime/Division Range: 2 ns to 50 s/div


Includes:
  • Two P6117 10X Passive Probes
  • User Manual & Quick Reference Manual
  • Standard Meter Lead Set N
  • iCd Rechargeable Battery Pack A
  • C Power Adapter
  • Soft Carrying Case
  • Cable and Adapters for RS-232



Specifications


  • Channels: 2
  • Sensitivity: 5 mV to 50 V/div (to 500 V/div with 10X probe)
  • Record Length: 2500 points
  • Video Triggering Formats and Field Rates: Odd field, even field and line
  • Waveform Processing: Add, Subtract, Multiply, Calculate Watts = V x I
  • Waveform Storage: 10 waveforms
  • Cursor Measurements: ΔVolts, ΔTime, 1/ΔTime (Hz), Degree (phase)
  • Cursor Types: Horizontal Bars, Vertical Bars, Paired (volts @ time)



Automatic Measurements:

Period; +Width; -Width; +Duty Cycle; -Duty Cycle; High; Low; Peak-to-Peak; Mean; Cycle Mean; Burst Width; Frequency; Rise Time; Fall Time; +Overshoot; -Overshoot; Max; Min; Amplitude; RMS; Cycle RMS


DMM Specifications:


  • DC Voltage Ranges: 400.0 mV to 880 V
  • True RMS AC Voltage Ranges: 400.0 mV to 640 V
  • Resolution: 4000 count, 3-3/4 digits
  • Resistance Ranges: 400.0 ohm to 40.00 Mohm
  • Diode Test Range: 0 to 2 volts
  • Continuity Check: Audible tone when < 50 ohm
  • Modes: Min, Max, Δ-Max-Min, Avg, Hold
  • Non-Volatile Storage: 10 DMM screenshots



Physical Characteristics:


  • Dimensions: 6.95" W x 8.53" H x 2.00" D (177 mm x 217 mm x 51 mm)
  • Net Weight: 3.2 lb. (1.45 kg)
