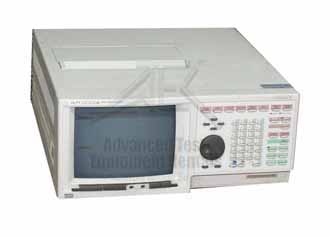

Yokogawa AR1100A Analyzing Recorder

Yokogawa AR1100A Analyzing Recorder
Enlarge Image
Request Quote Print Page
Manual
The AR1100A is an easy-to-use waveform measuring instrument which incorporates in a single unit capabilities ranging from measurement, analysis, computation, display and memory through to print-out. It is equipped with 8 isolated analog input channels and a 14-bit A/D converter (maximum sampling rate of 100kS/s) which enable you to carry out high-speed, high-resolution simultaneous measurements. The main unit also has temperature measurement (Thermocouple input: K, E, J, T, R, S, B, U, L, N, W) capability. There are also models of the main unit provided with 2 channel 8-bit logic input.

With it's large memory capacity of either 64kwords / channel or 512kwords / channel the  main unit shows its strengths particularly when measuring single shot phenomena over long time periods.

Features:

  • Memory Mode
  • Recorder Mode
  • FFT Mode
