Amplifier Research 25W1000 RF Amplifier

  Tech Support
(800) 404-2832
ATEC Assurance With Every
Rental
    Worldwide
Delivery

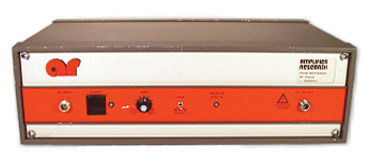

The Amplifier Research 25W1000 RF Amplifier is an ultra-broadband solid state amplifier which operates at a frequency range of 1 MHz to 1 GHz and delivers 25 W of CW power. Amplifier Research 25W1000 RF Amplifiers produce energy efficiently while maintaining a power gain of 46 dB minimum, frequency response of 100 to 1000 MHz and an input and output impedance of 50 Ohms. For technicians seeking to boost a low-power signal to a higher power level and deliver it to a load, but also to reconcile conflicting parameters like high power and broad bandwidth, this model is an essential tool as both a power source and testing instrument. VSWR protection is included, and Amplifier Research 25W1000 units can sustain infinite VSWR without fear of damage or shutdown.
