Amplifier Research 50A15 Amplifier | 20 kHz - 15 MHz, 50 W

Larger

Categories

Documents

Datasheet

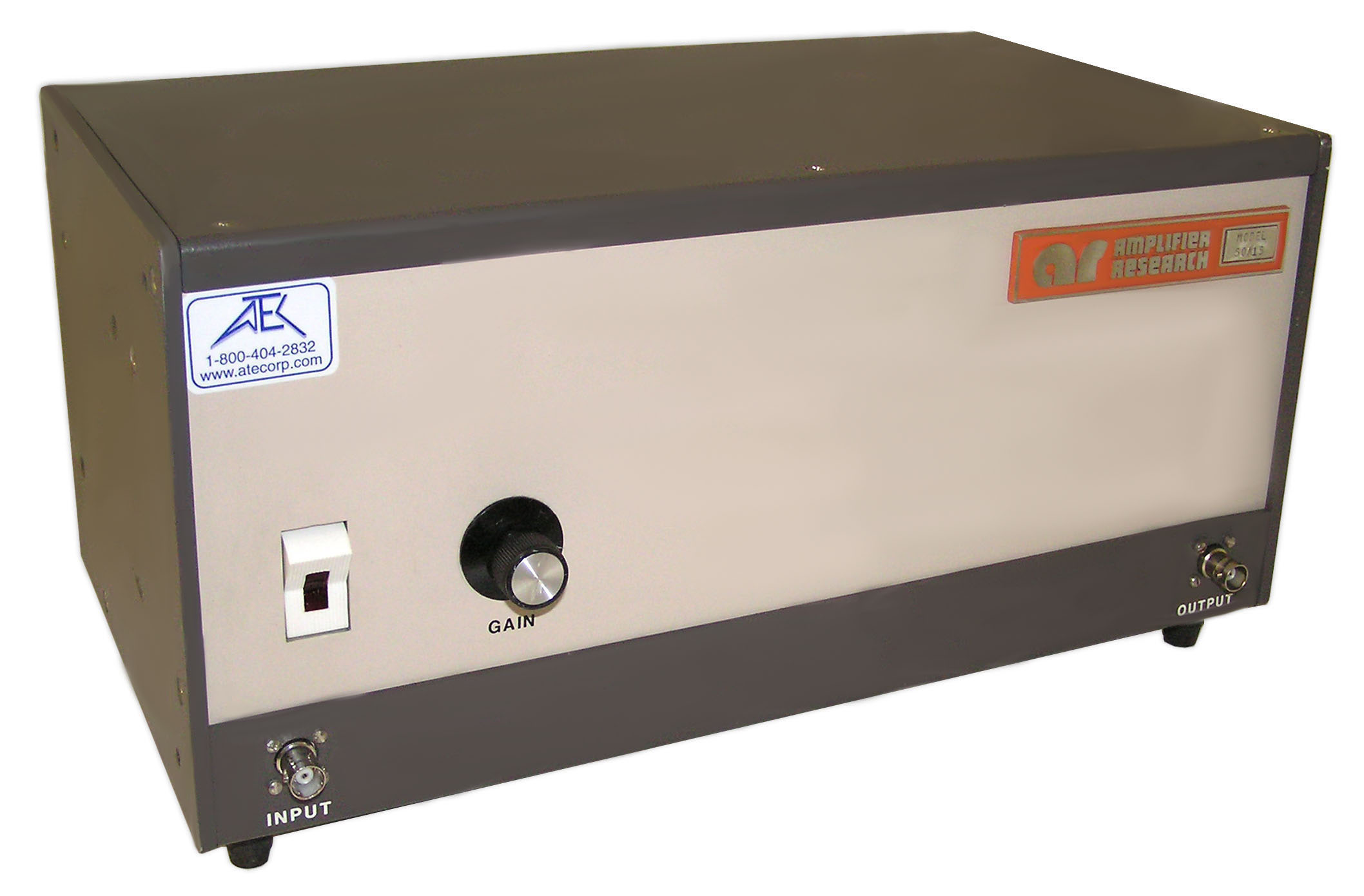

The Amplifier Research 50A15 Amplifier has a frequency range of 20 kHz to 15 MHz and a power output of 50 W. The Amplifier Research 50A15 has an output impedance of 50 ohms (nominal), ±1.0 dB flatness, and more. With Type BNC, female input and output RF connectors, and a lightweight design, the Amplifier Research 50A15 is the ideal model for a variety of testing requirements.

Power Output	50 W
Frequency Range	20 kHz - 15 MHz
Flatness	±1.0 dB
Output Impedance	50 ohms (nominal)
RF Connectors	Input: Type BNC, female Output: Type BNC, female
Primary Power	115 / 230 VAC, 50/60 Hz
Dimensions	20.3 x 16.5 x 36.8 cm (8.0 x 6.5 x 14.5 in)
Weight	9 kg (20 lb.)
